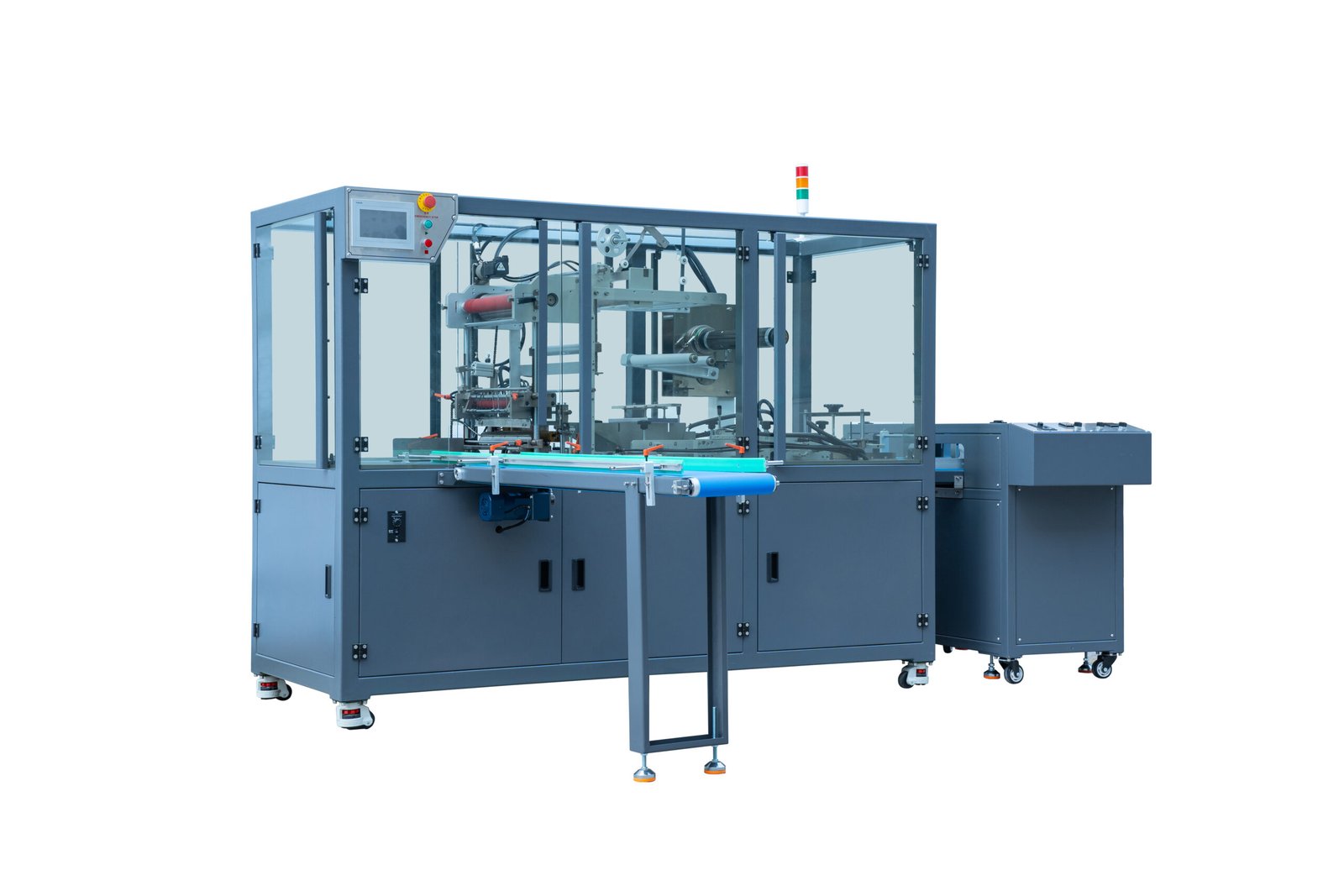

SC-400C + Six-side Shaper
⭐ A medium-to-high-speed multifunctional integrated Cellophane Packaging Machine.
⭐ Supports single-box or multi-box bundled packaging, features specification memory, and is suitable for large-scale, high-efficiency production.
⭐ Suitable for transparent film three-dimensional packaging of square single-piece or multi-box bundled items in industries such as pharmaceuticals, cosmetics, health products, and food.
※ Advanced Design: Primarily mechanical transmission supplemented by pneumatic assistance, ensuring stable operation with an extremely low failure rate. It is simple to operate and easy to master.
※ Comprehensive Functionality: Automatically completes feeding, wrapping, folding, side sealing, end sealing, top/bottom shaping, counting, and applying anti-counterfeit pull-lines.
※ Intelligent Control: Equipped with specification memory and track adjustment functions. Supports switching between surface sealing and spot sealing to adapt to different packaging requirements.
※ Durable Transmission: Uses sprocket and chain drive for material pushing, with servo motor for precise film feeding control. The push-box mechanism includes overload protection.
※ Easy Maintenance: Quick changeover for different specifications, short fault recovery time, and simple repair and upkeep.

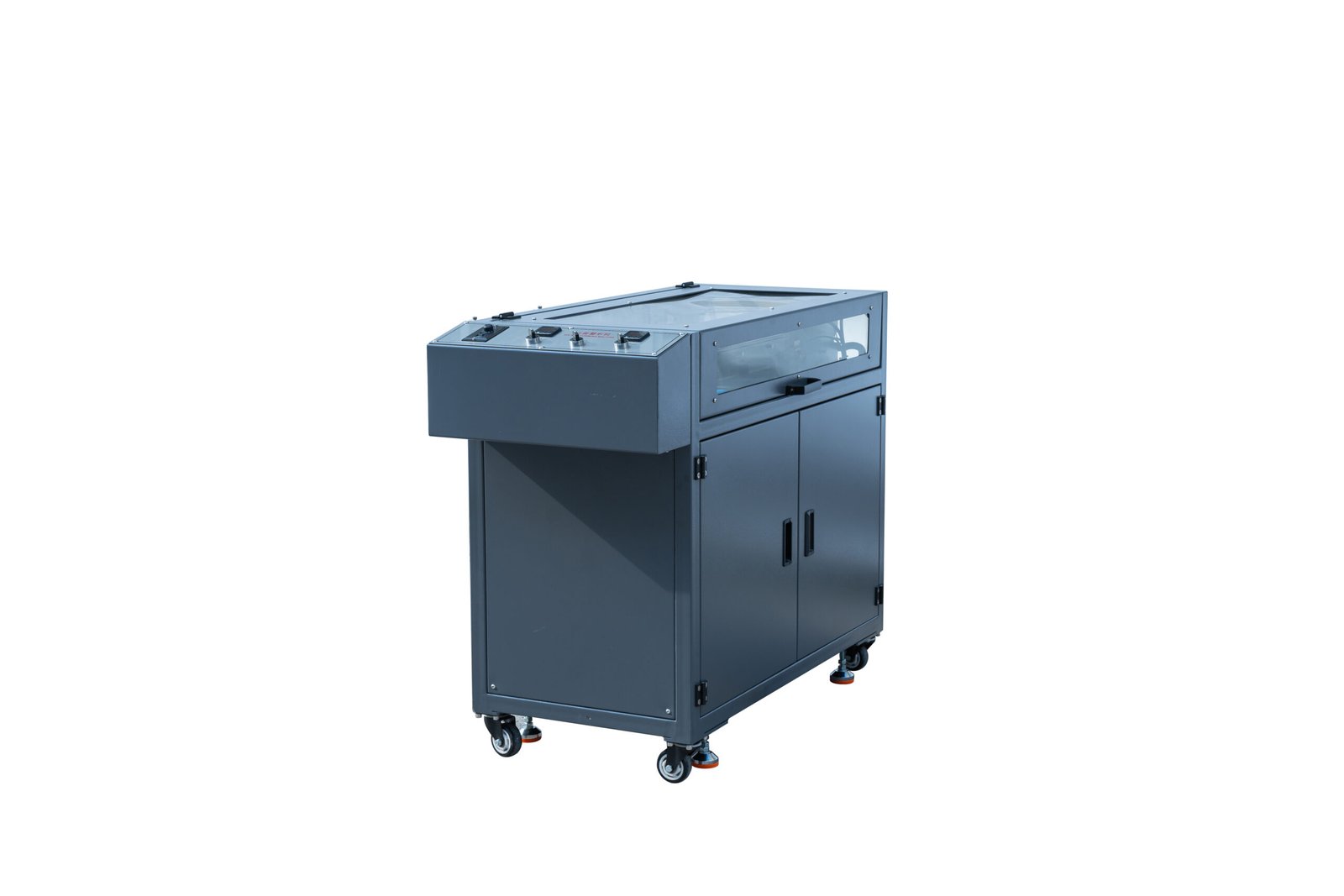

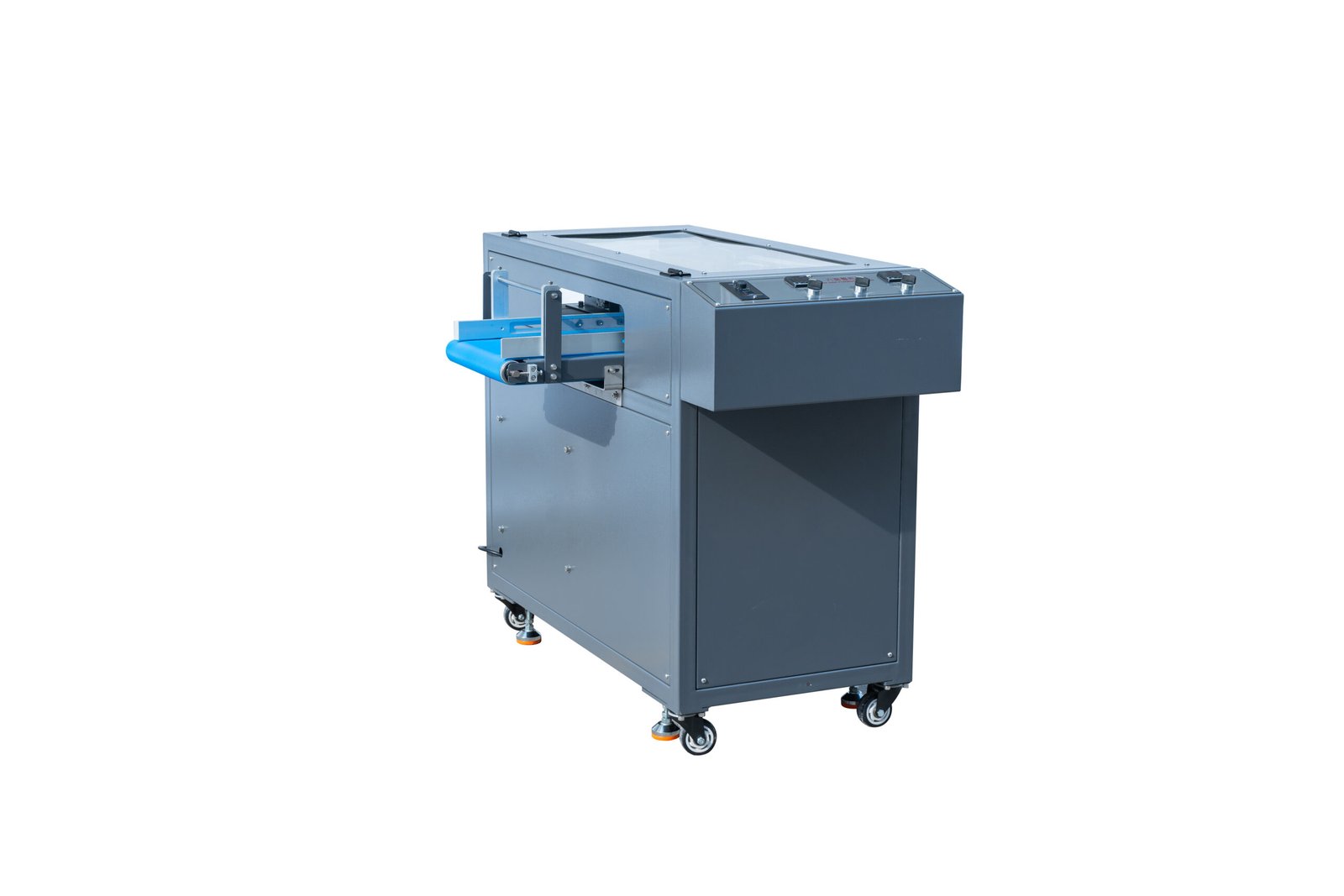

※ Suitable for use in various industries for Cellophane Packaging of transparent film (standard five-sided hot stamping) to seal and beautify the sixth side of the product after packaging, making the product more beautiful and flat.
| Model | SC-300B | SC-300C | SC-400C | Six-sided Shaper |
| Film feeding system | Mechanical | Servo motor | Servo motor | —— |
| Packaging Material | BOPP film and gold pull cord | BOPP film and gold pull cord | BOPP film and gold pull cord | BOPP film and gold pull cord |
| Packaging Speed | 30-70 packs/minute (depending on product size) | 30-70 packs/minute (depending on product size) | 10-50 packs/minute (depending on product size) | 30-100 packs/min |
| Maximum Packaging Size | (L)50-240mm (W)30-140mm (H)10-60mm L+H≤280mm W+H≤180mm | (L)50-240mm (W)30-140mm (H)10-60mm W+H≤180mm | (L)80-300mm (W)50-220mm (H)20-100mm （No dimensions can be the maximum or minimum value) | (L)50-320mm (W)20-220mm (H)10-120mm |
| Power Supply & Total Power | 220V, 50Hz, 5kw | 220V, 50Hz, 5kw | 380V, 50Hz, 7.5kw | 220V,50Hz,2kw |
| Machine Weight | 350kg | 350kg | 750kg | 75kg |
| Machine Dimensions | 1580×740×1653mm | 1580×740×1653mm | 11500×270×860mm | 1250×550×970mm |

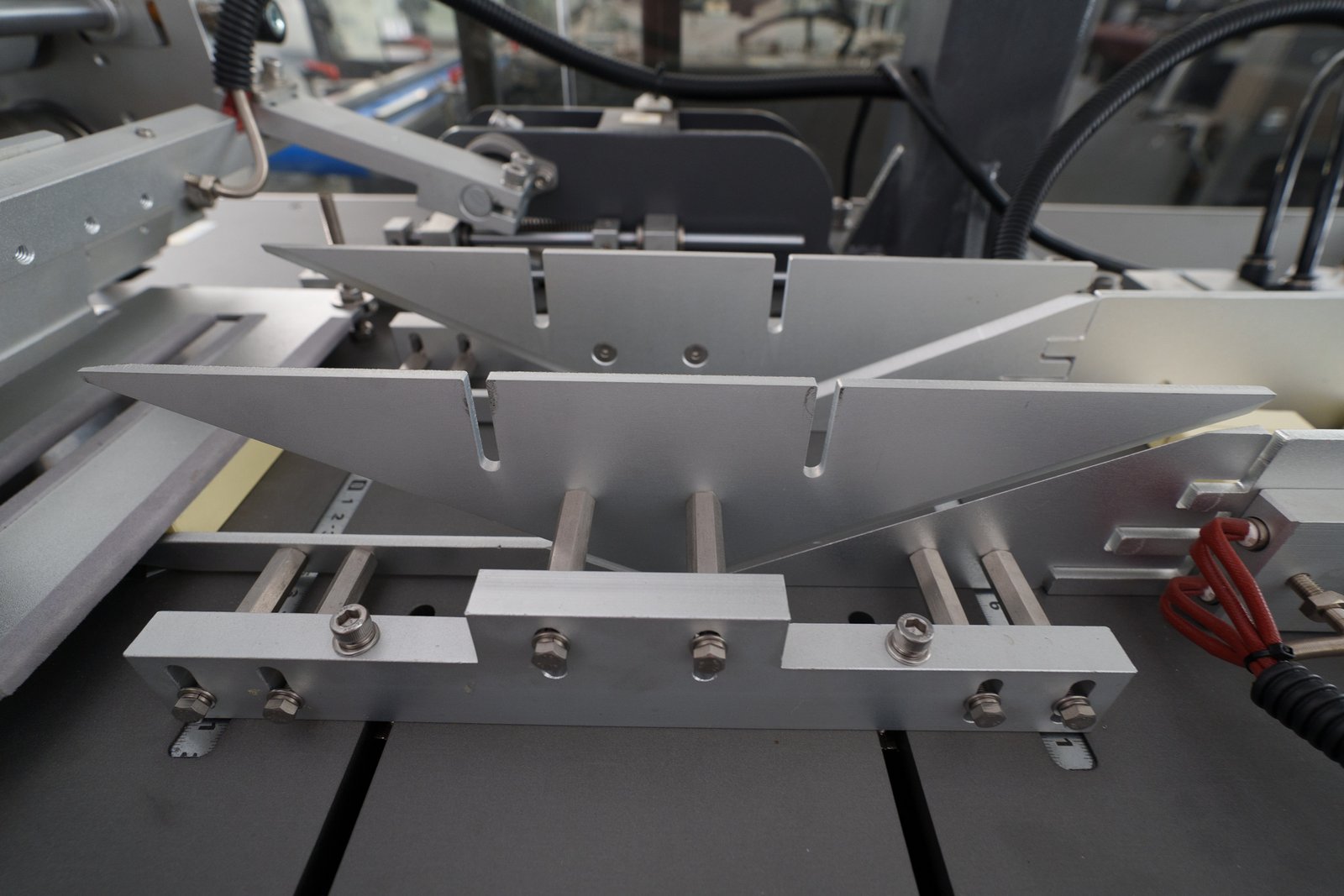

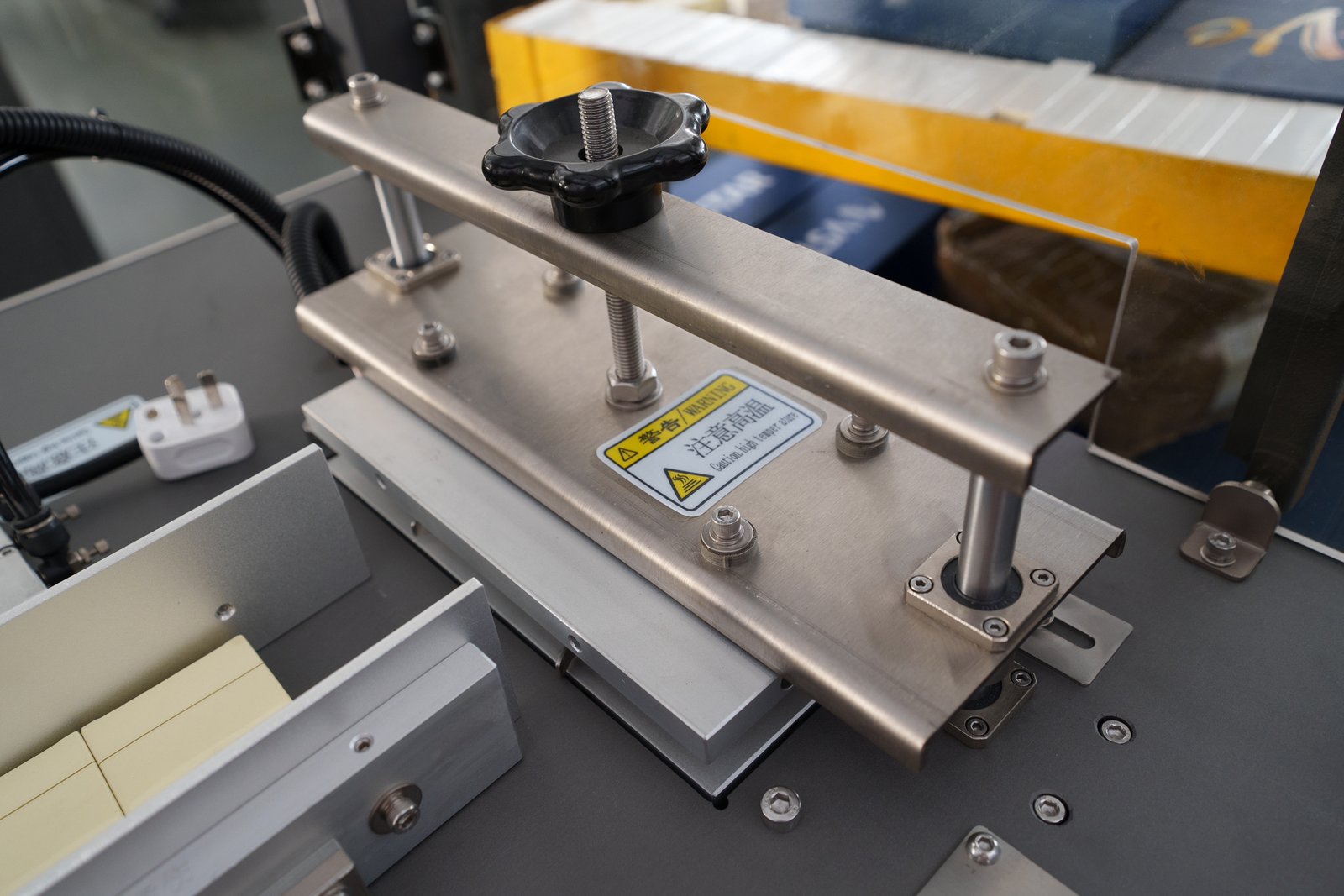

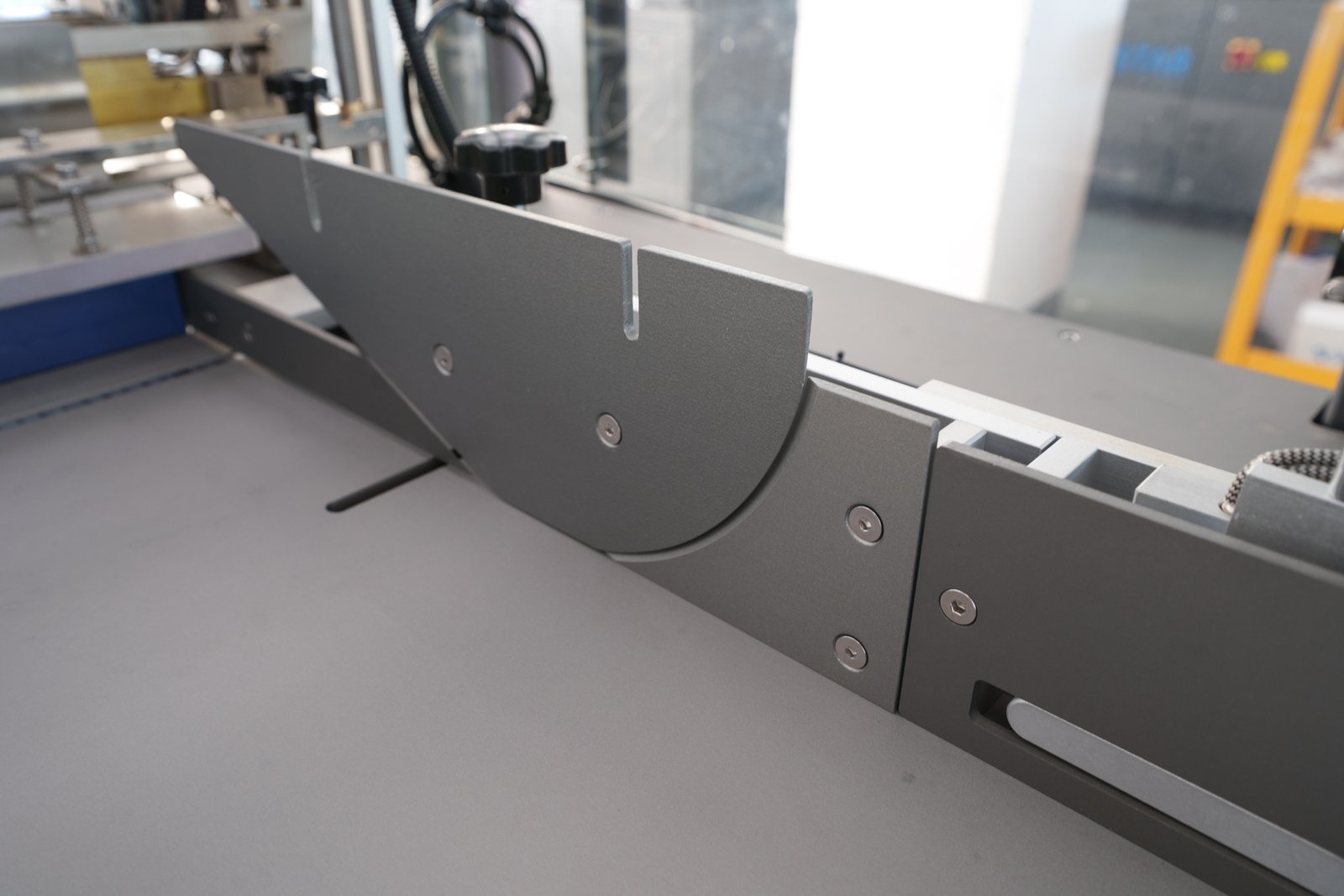

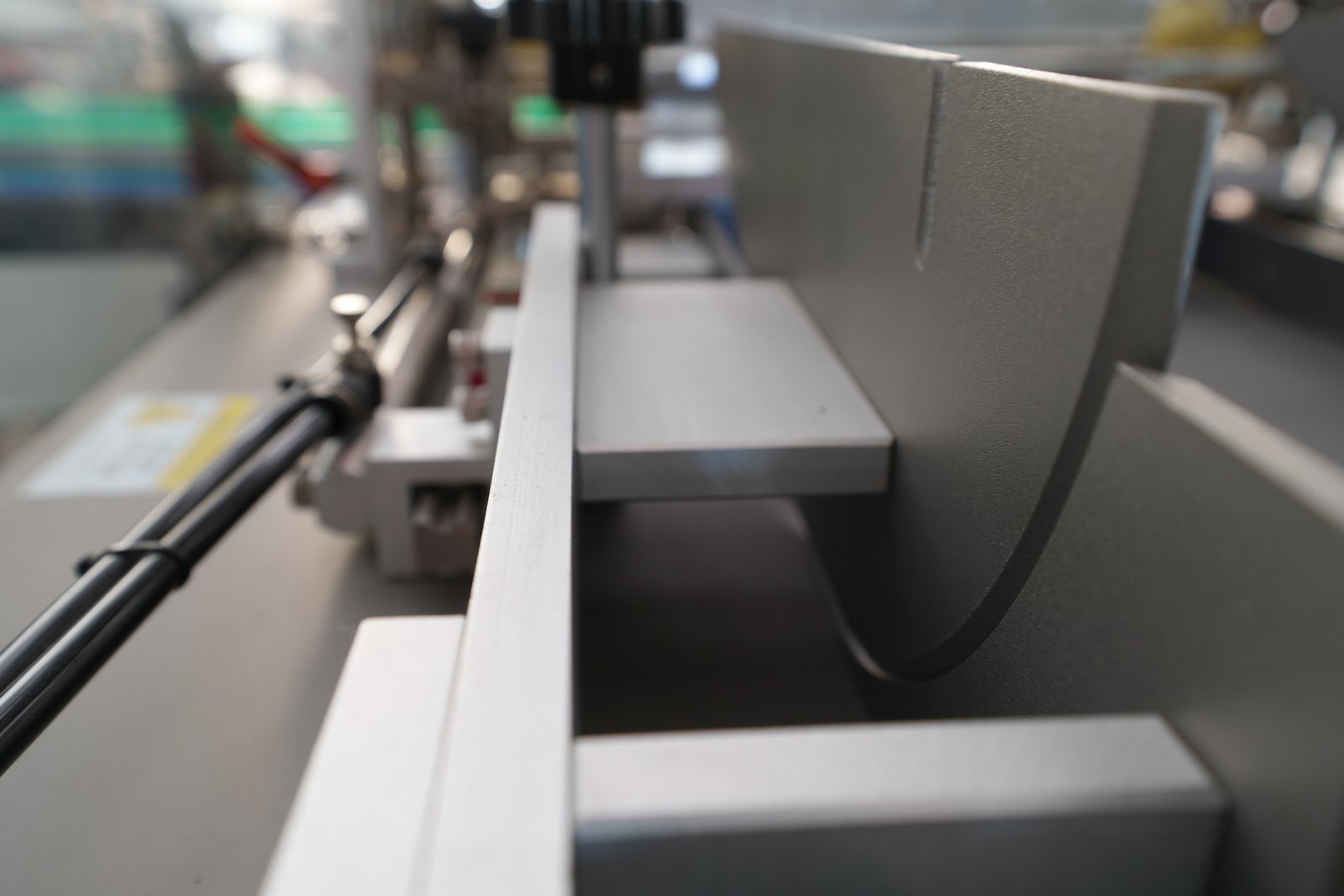

Packaging mold parts

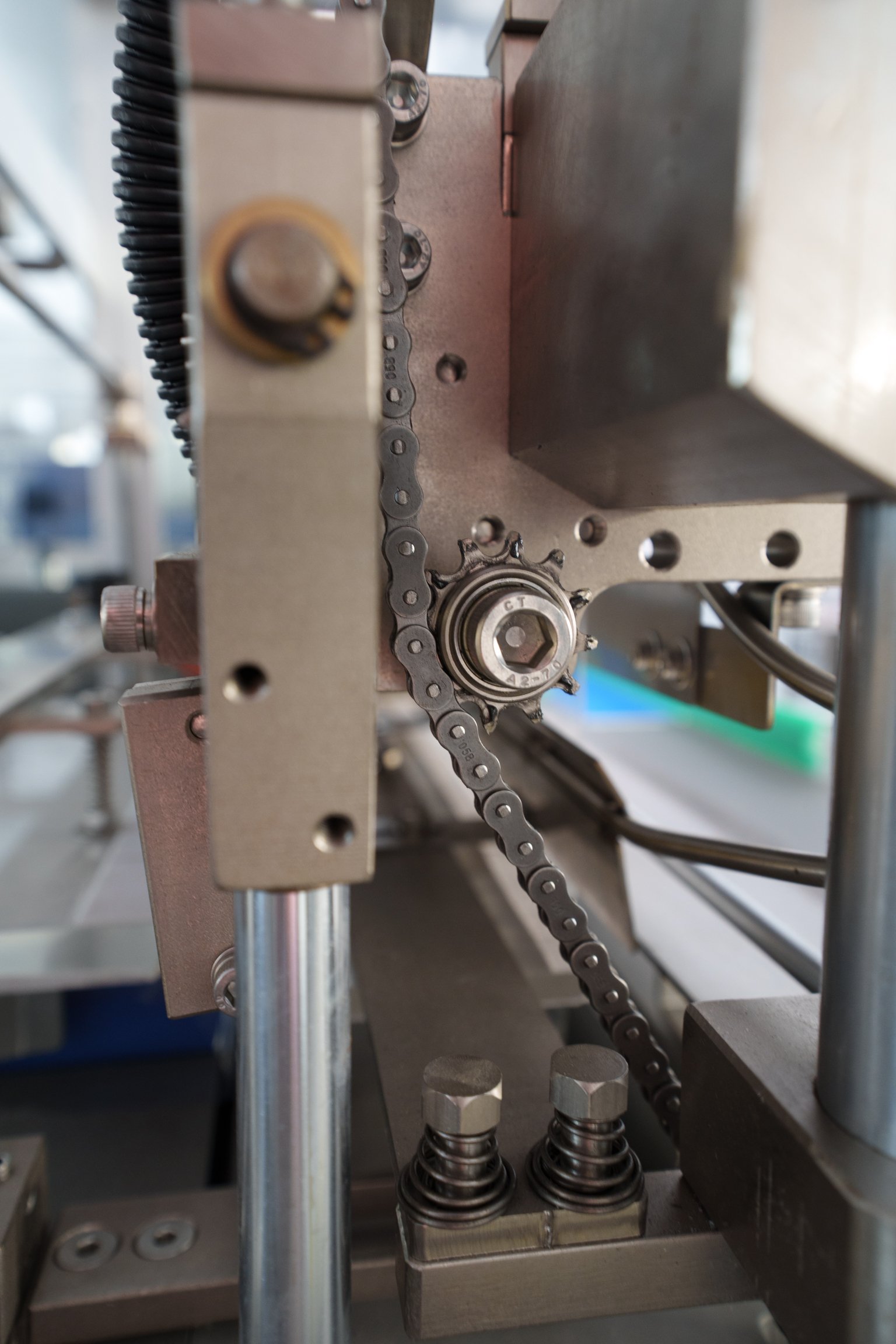

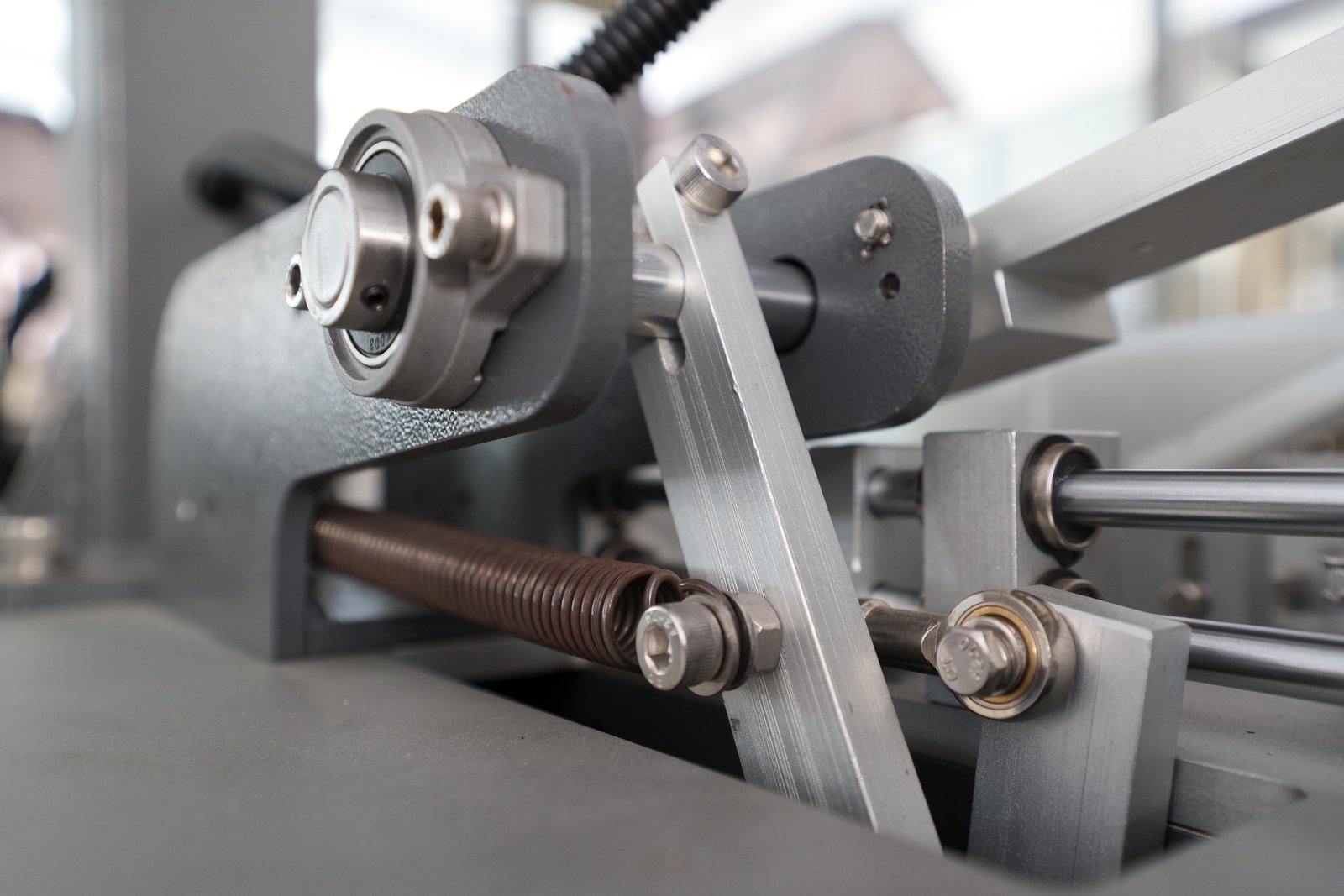

Moving parts

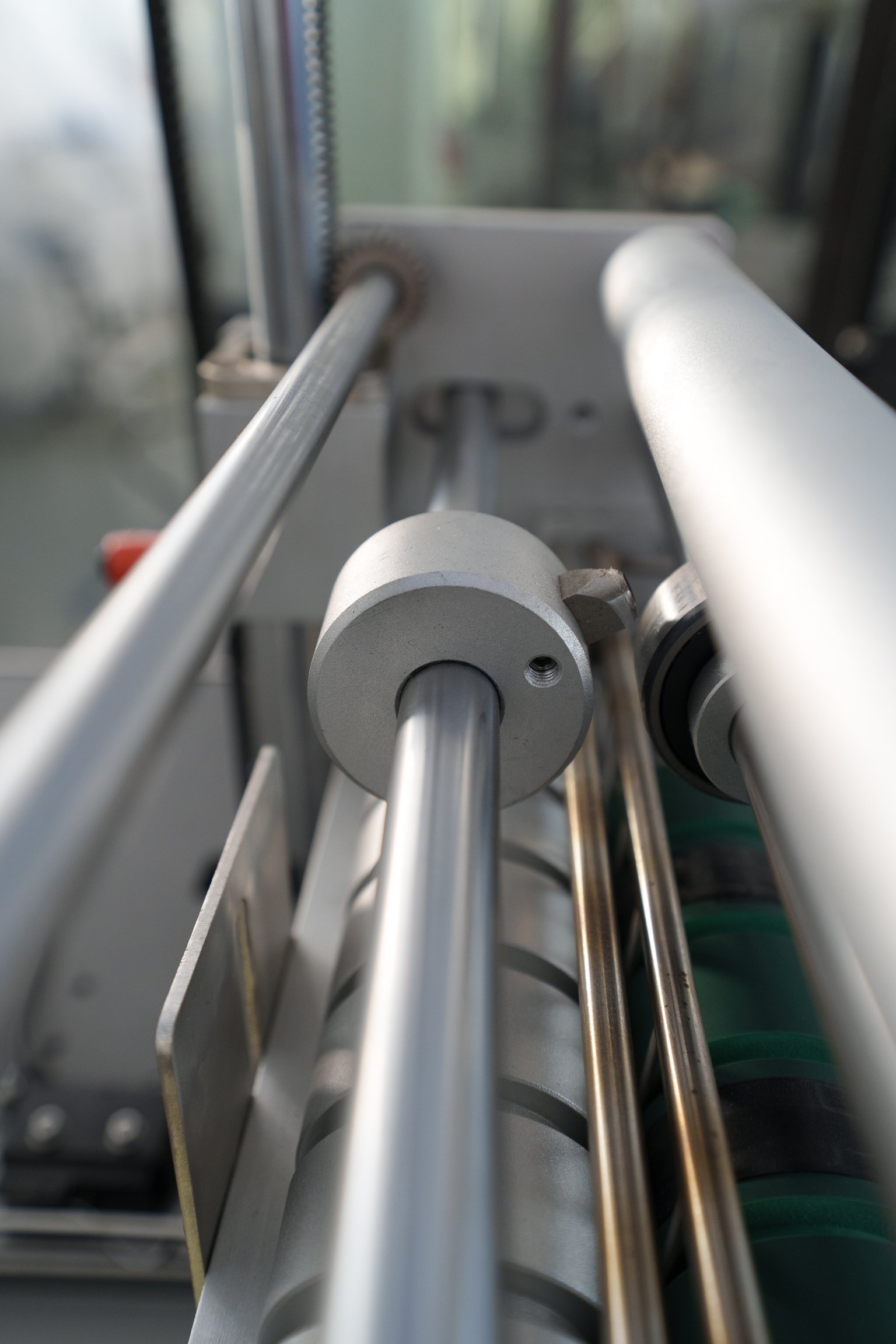

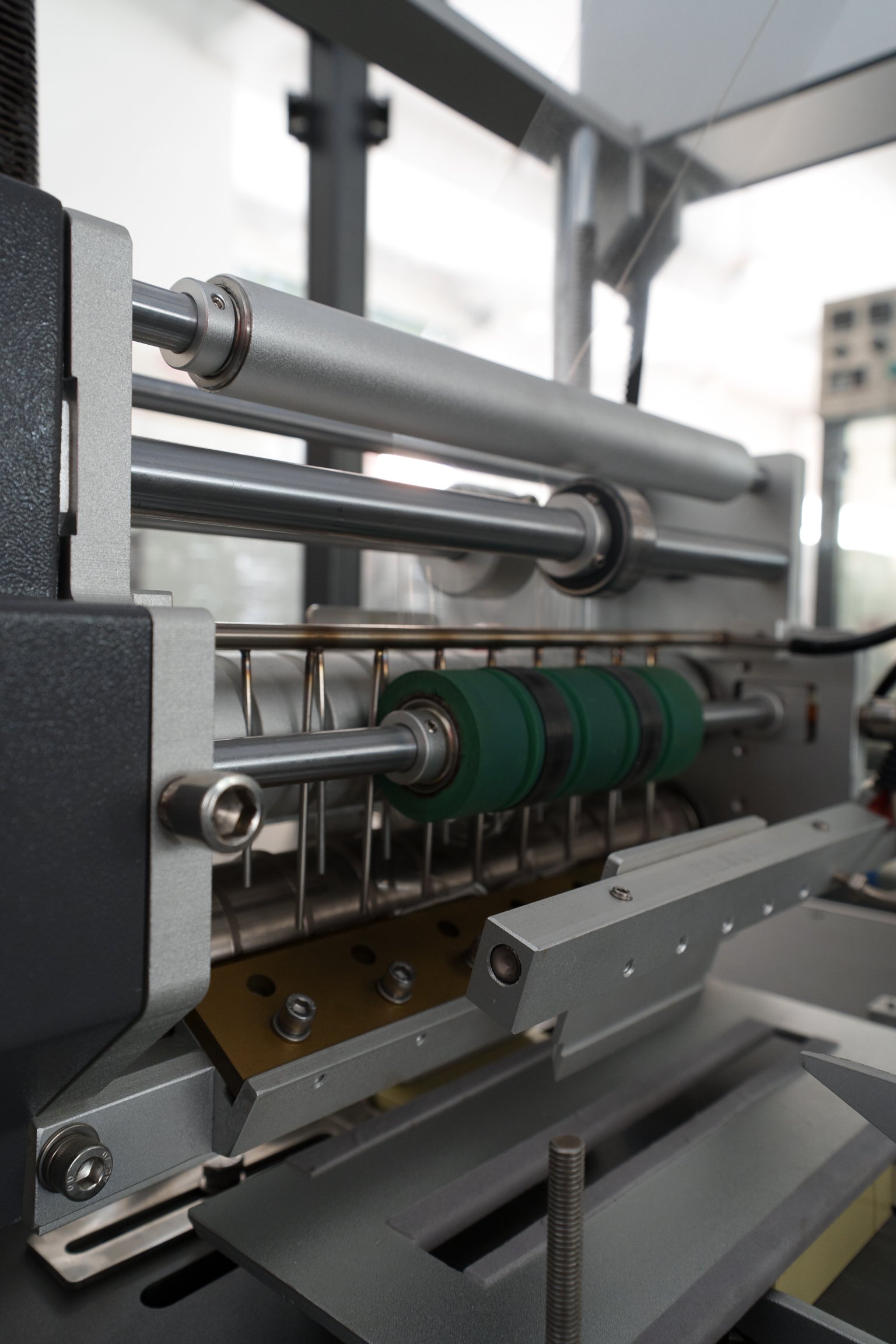

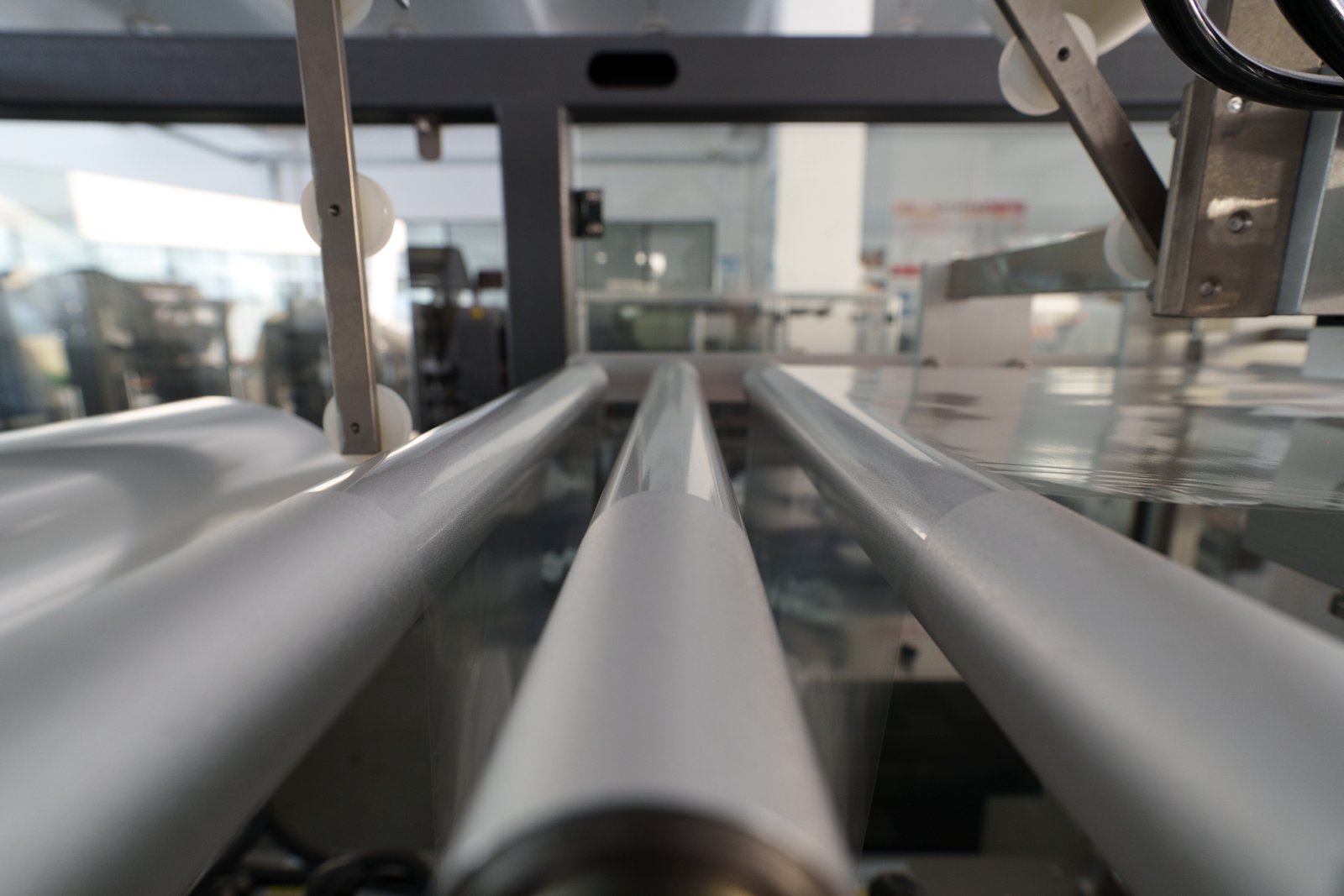

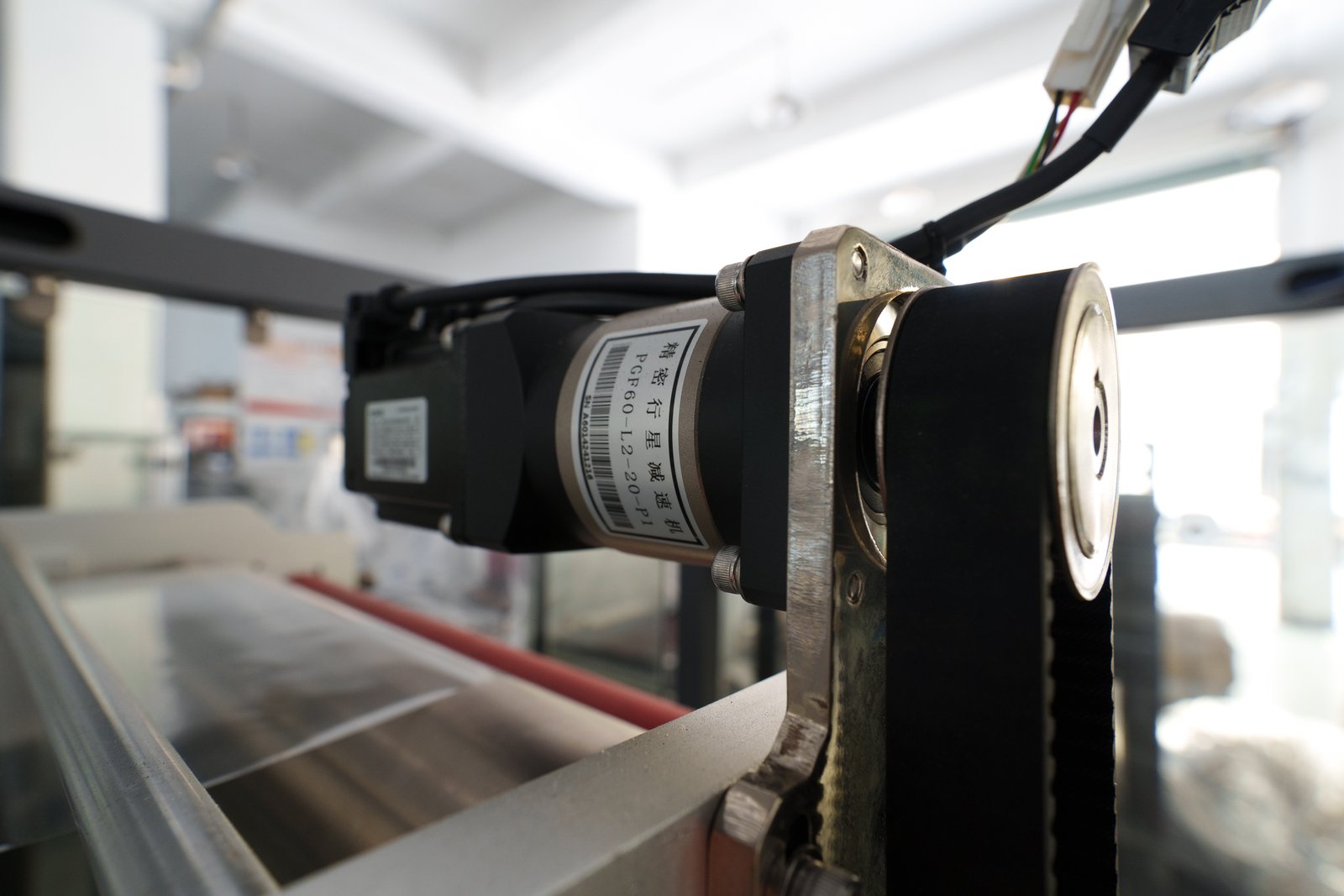

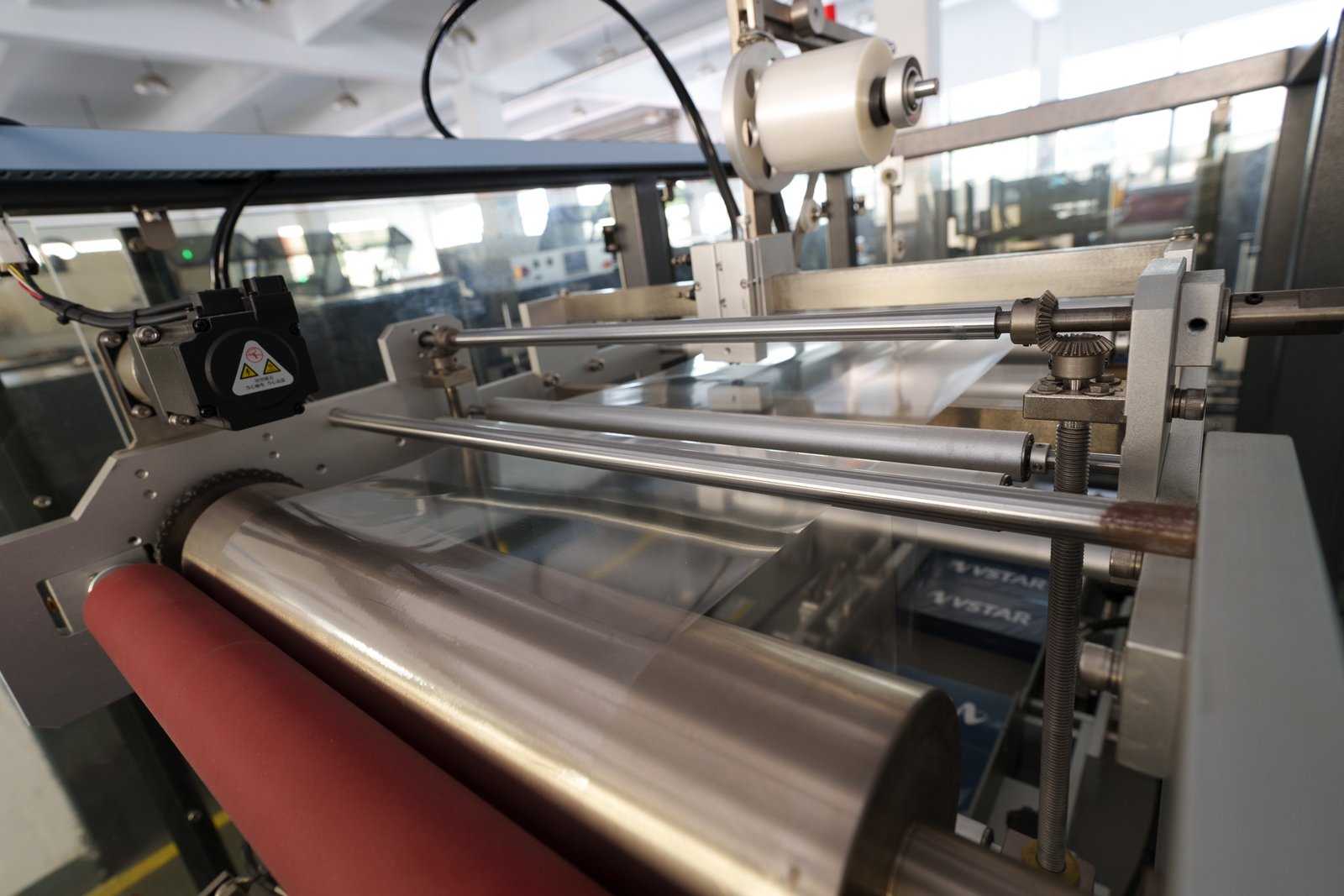

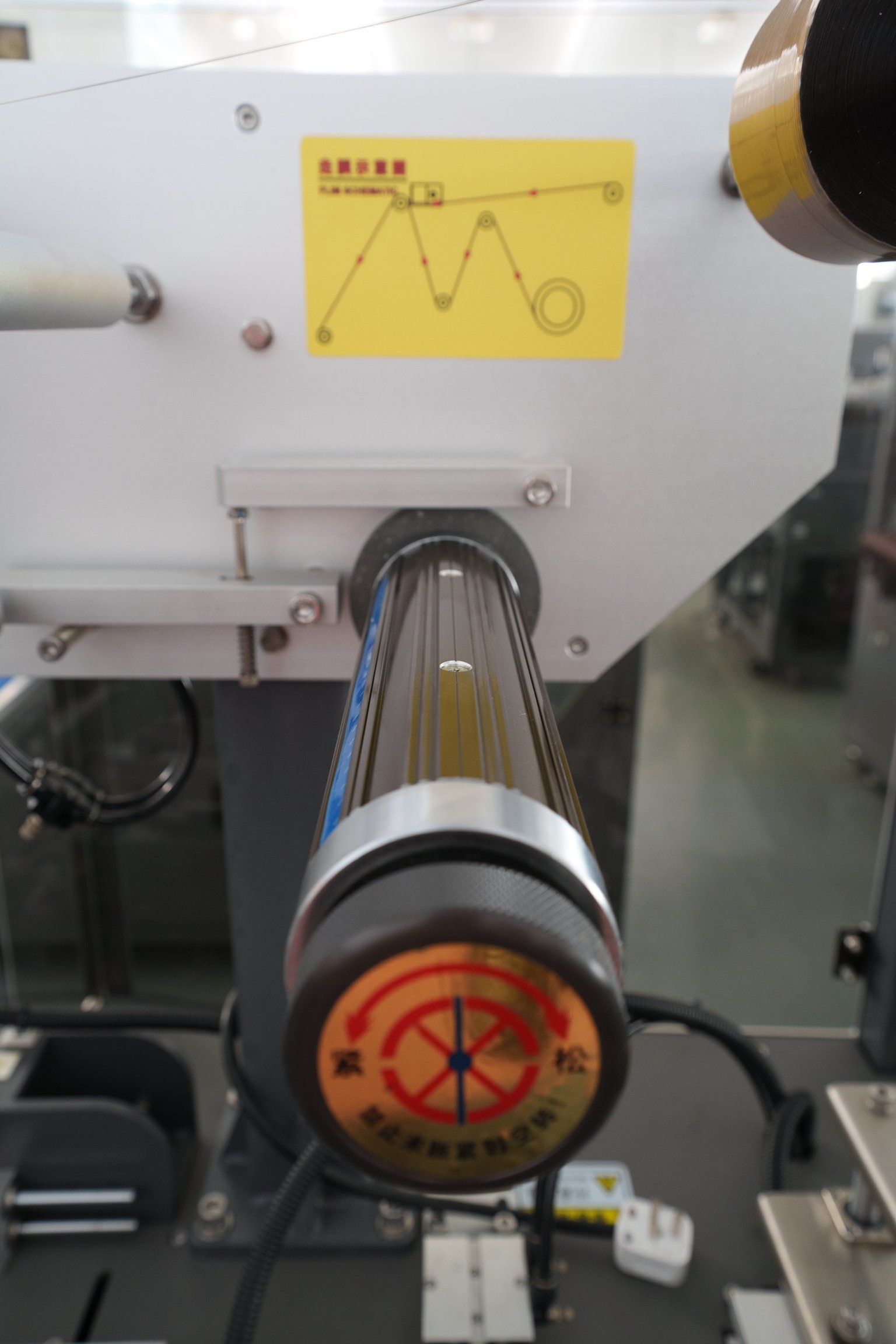

Film feeding parts

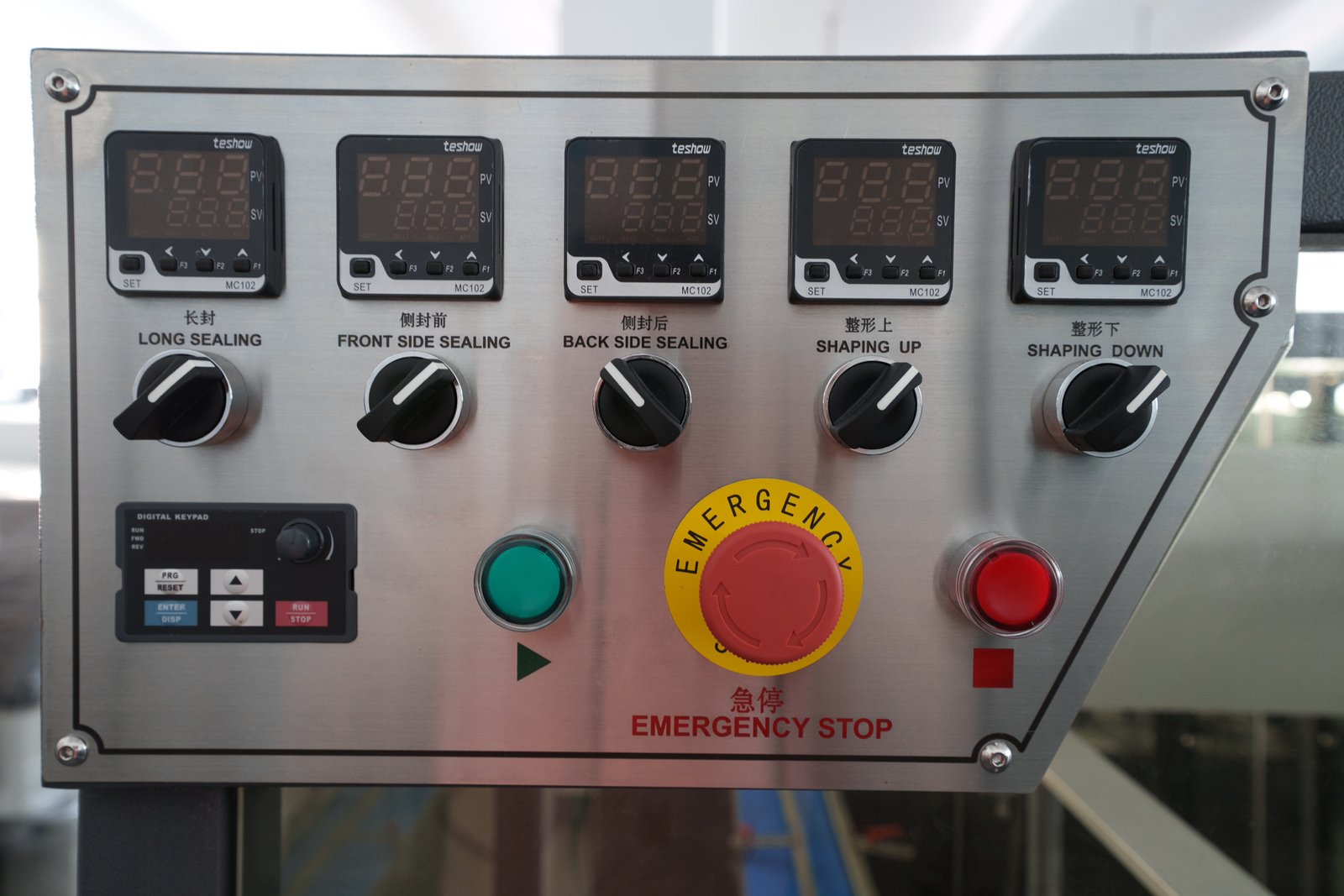

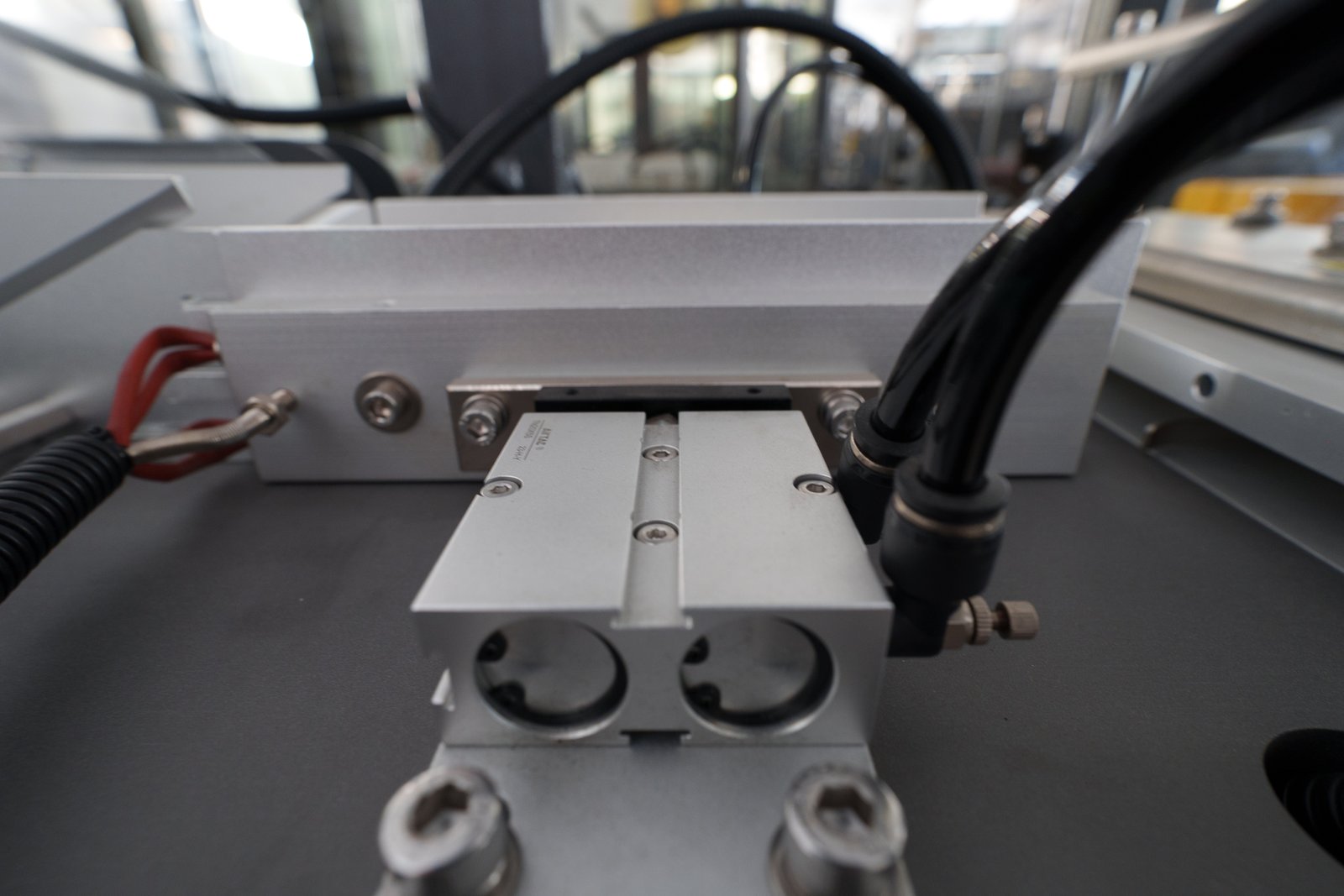

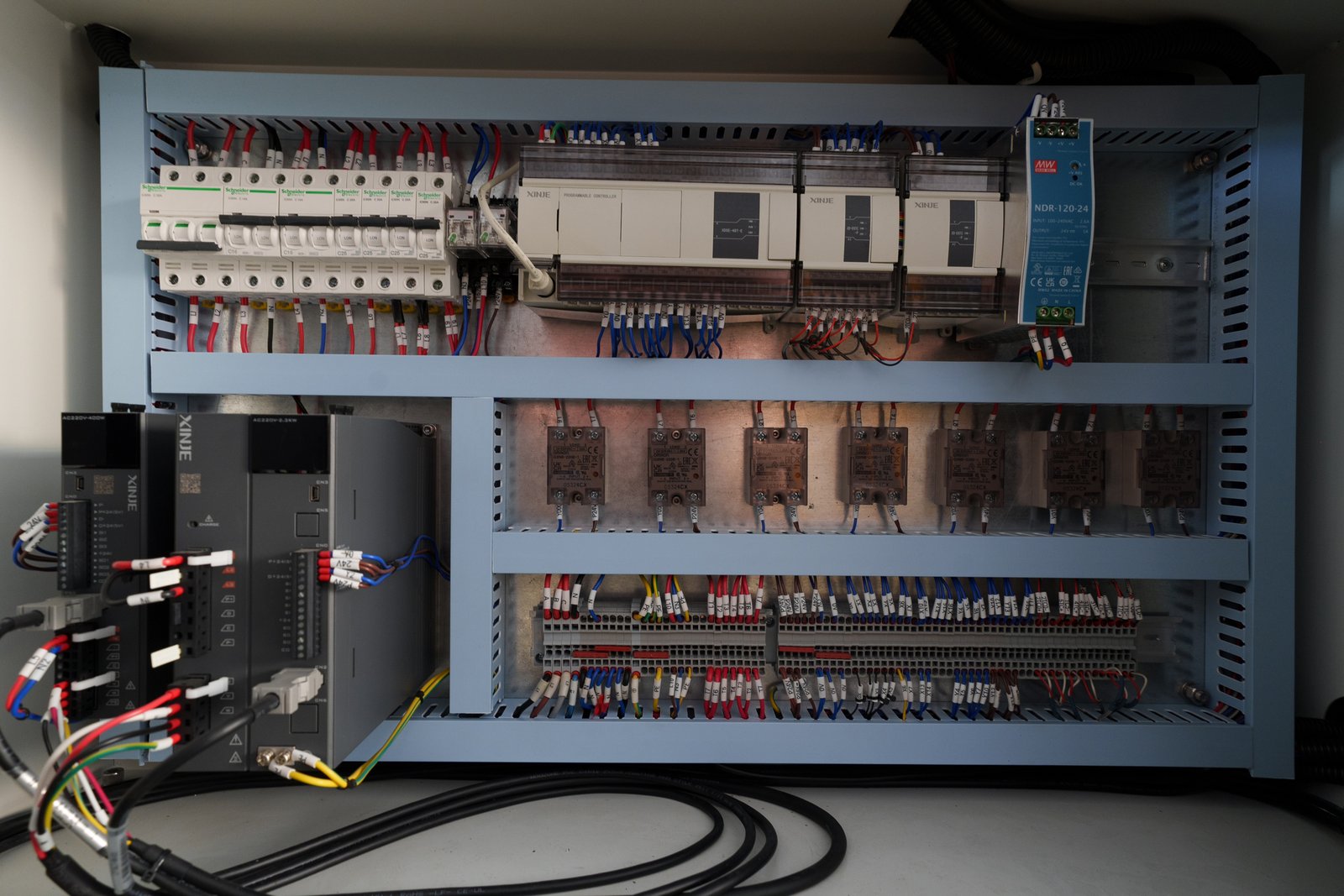

Electrical equipment
