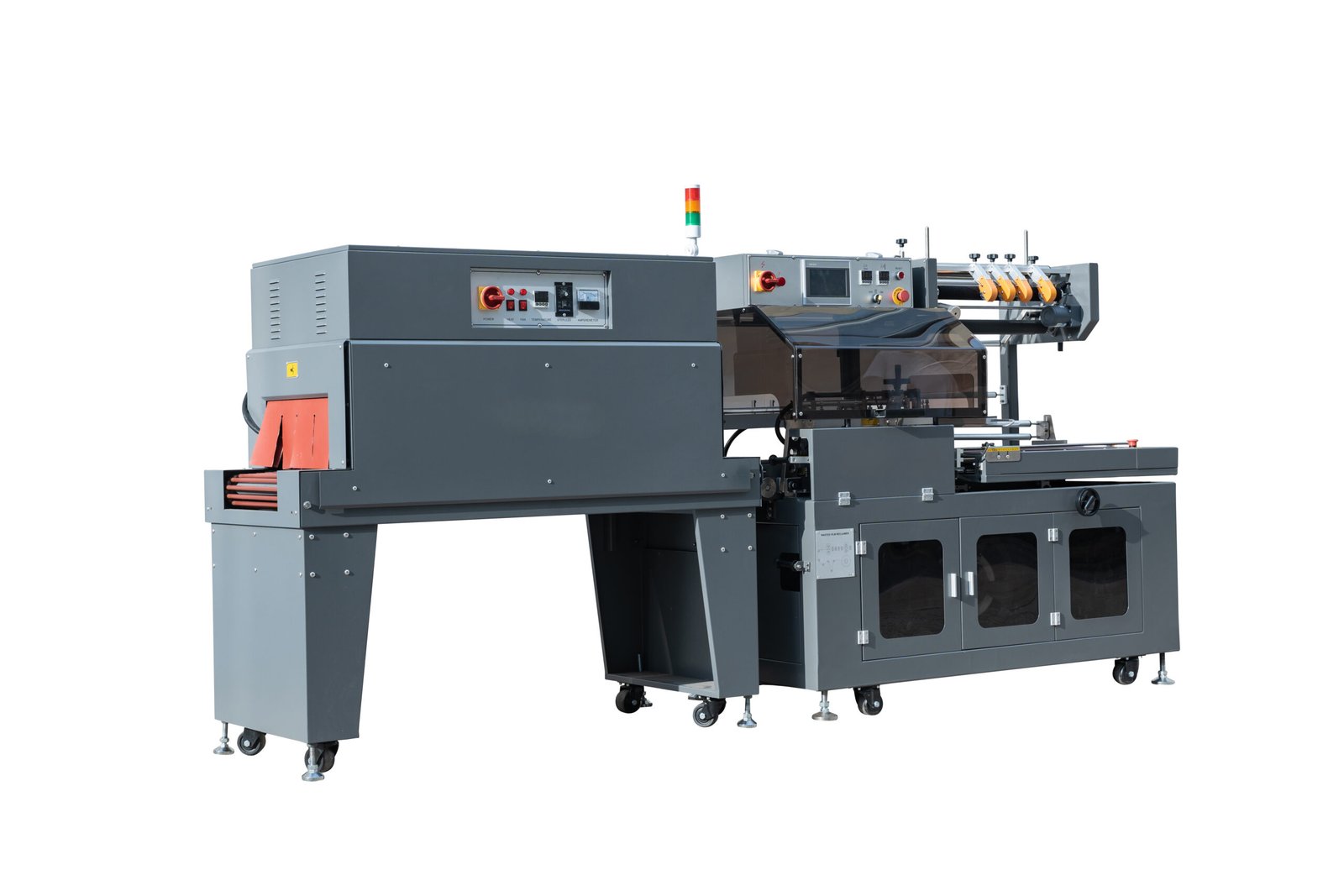

⭐ Classic and stable model, suitable for regular-sized products, balancing stability and practicality.
⭐ Widely applicable to industries such as food, hardware, daily chemicals, printing, color boxes, and electronics, enabling large-scale batch packaging of various regular-shaped products.
⭐ Multiple elements can be customized, including width, color, infeed/outfeed direction, etc., for seamless integration with your existing production line.

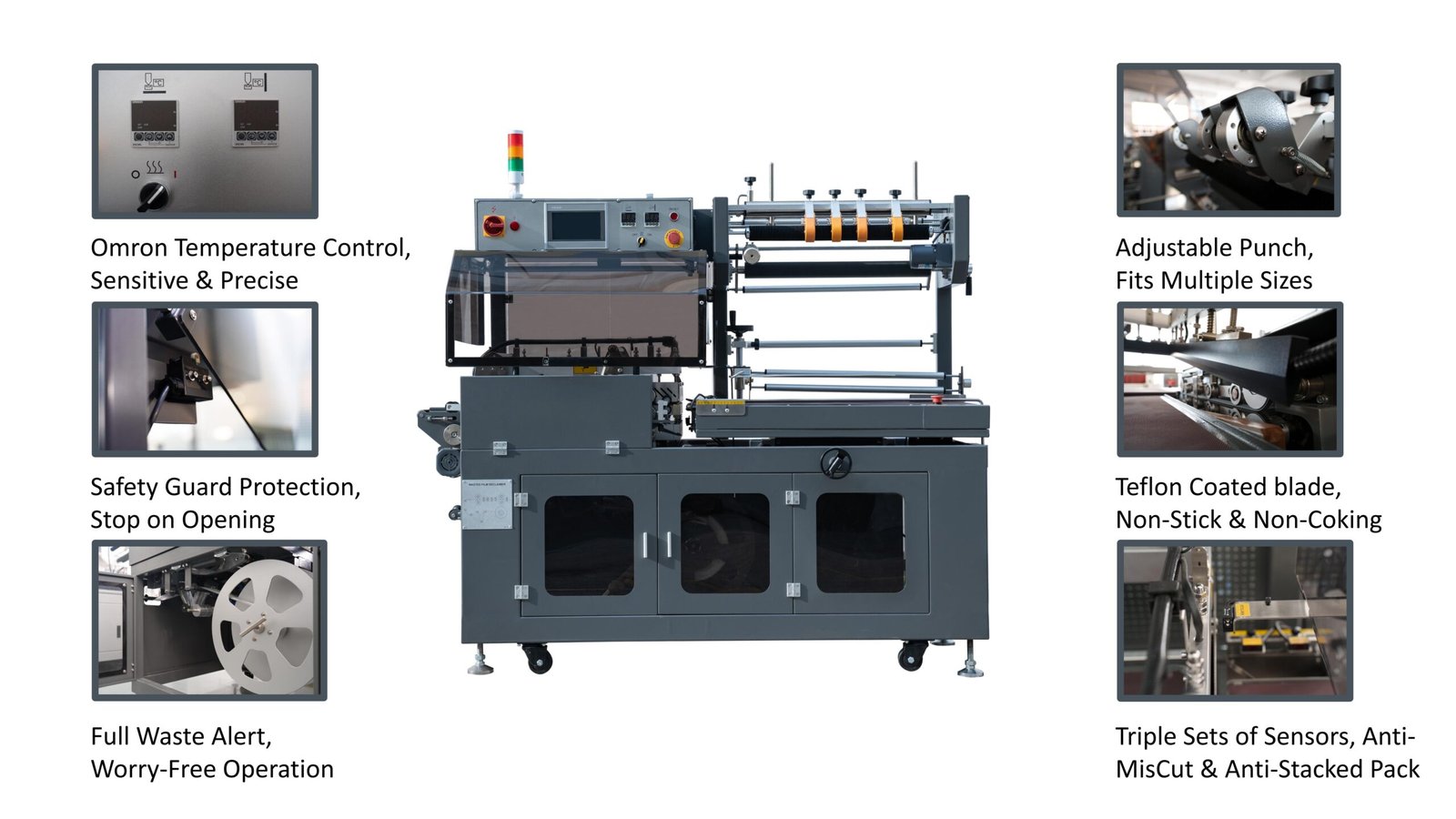

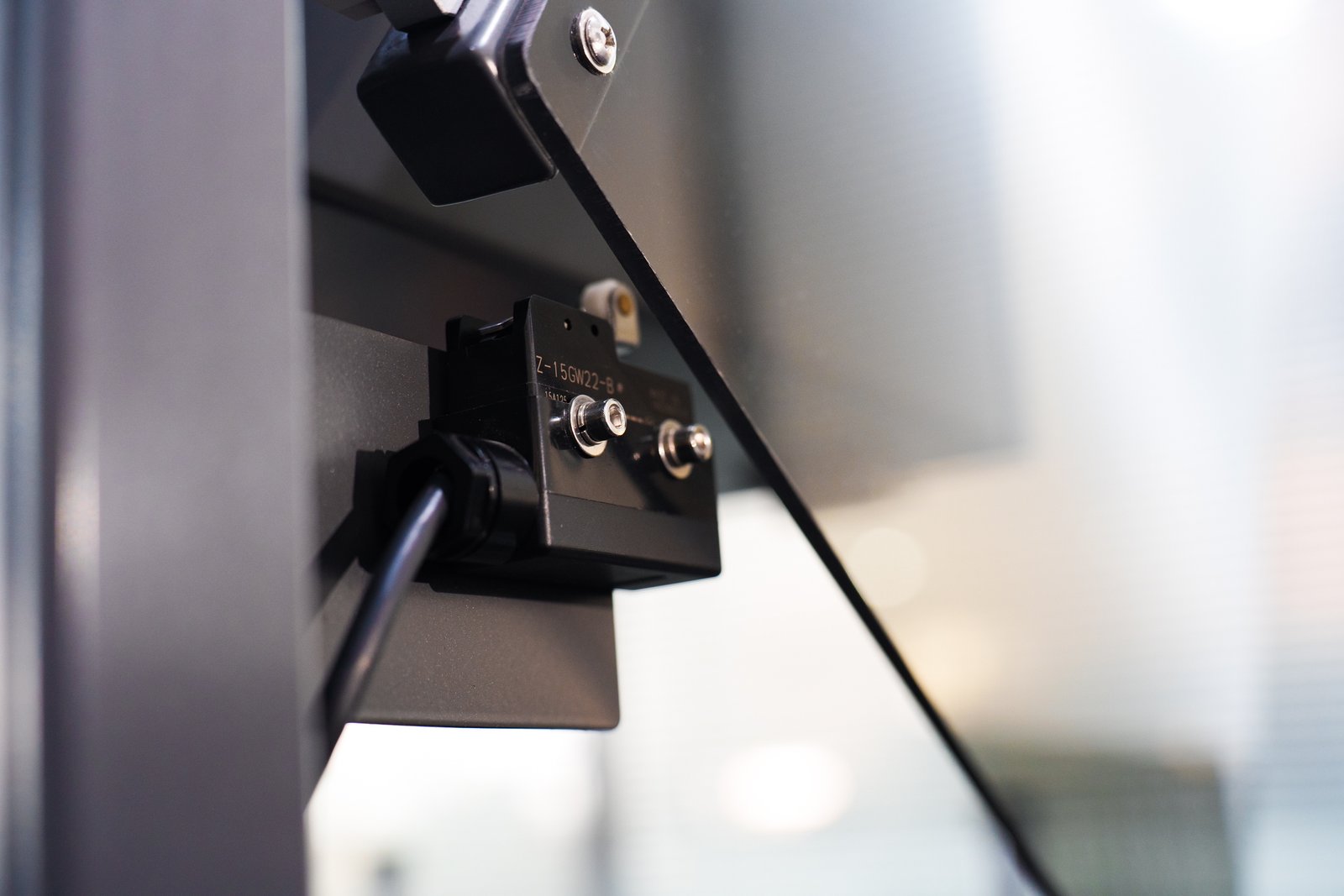

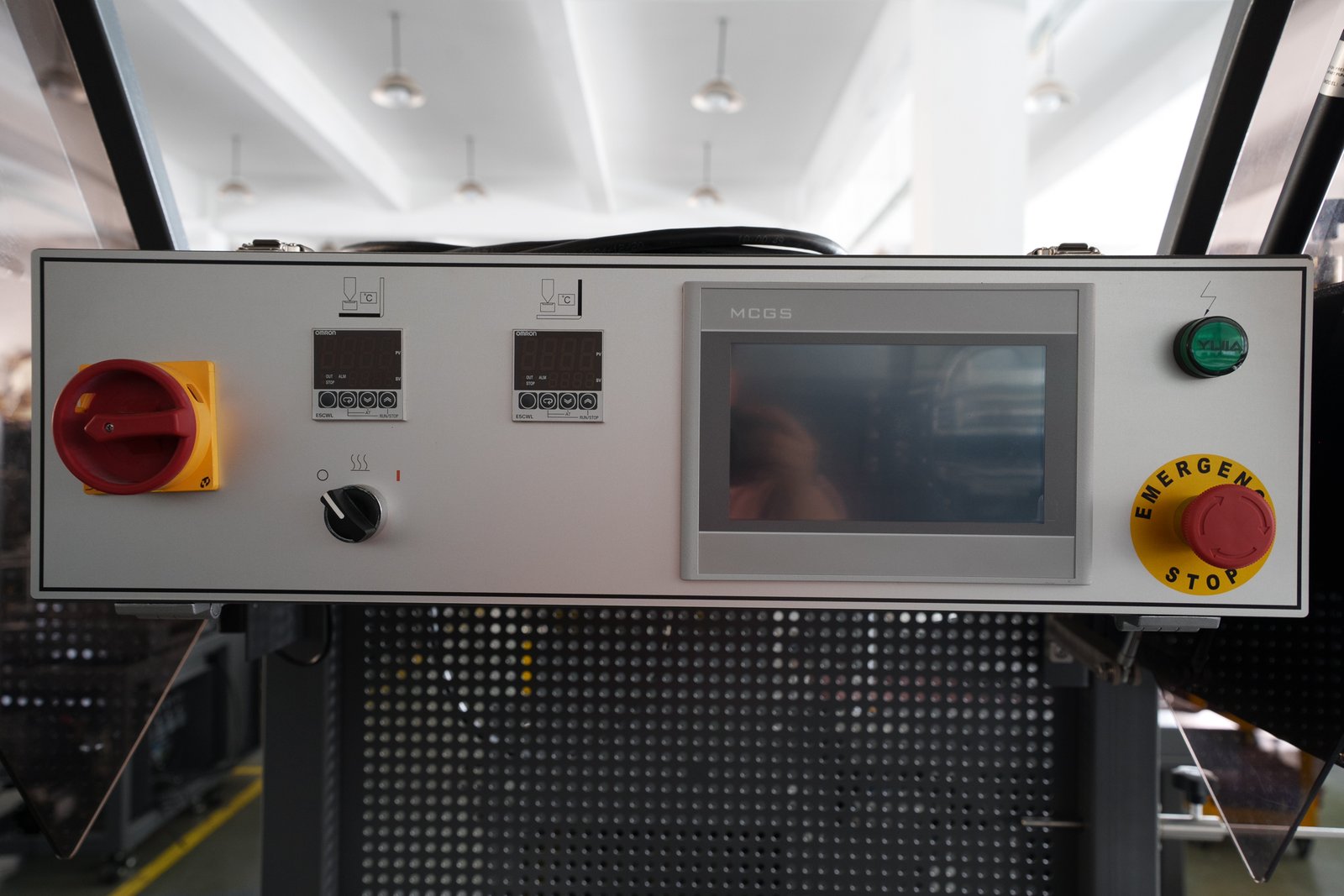

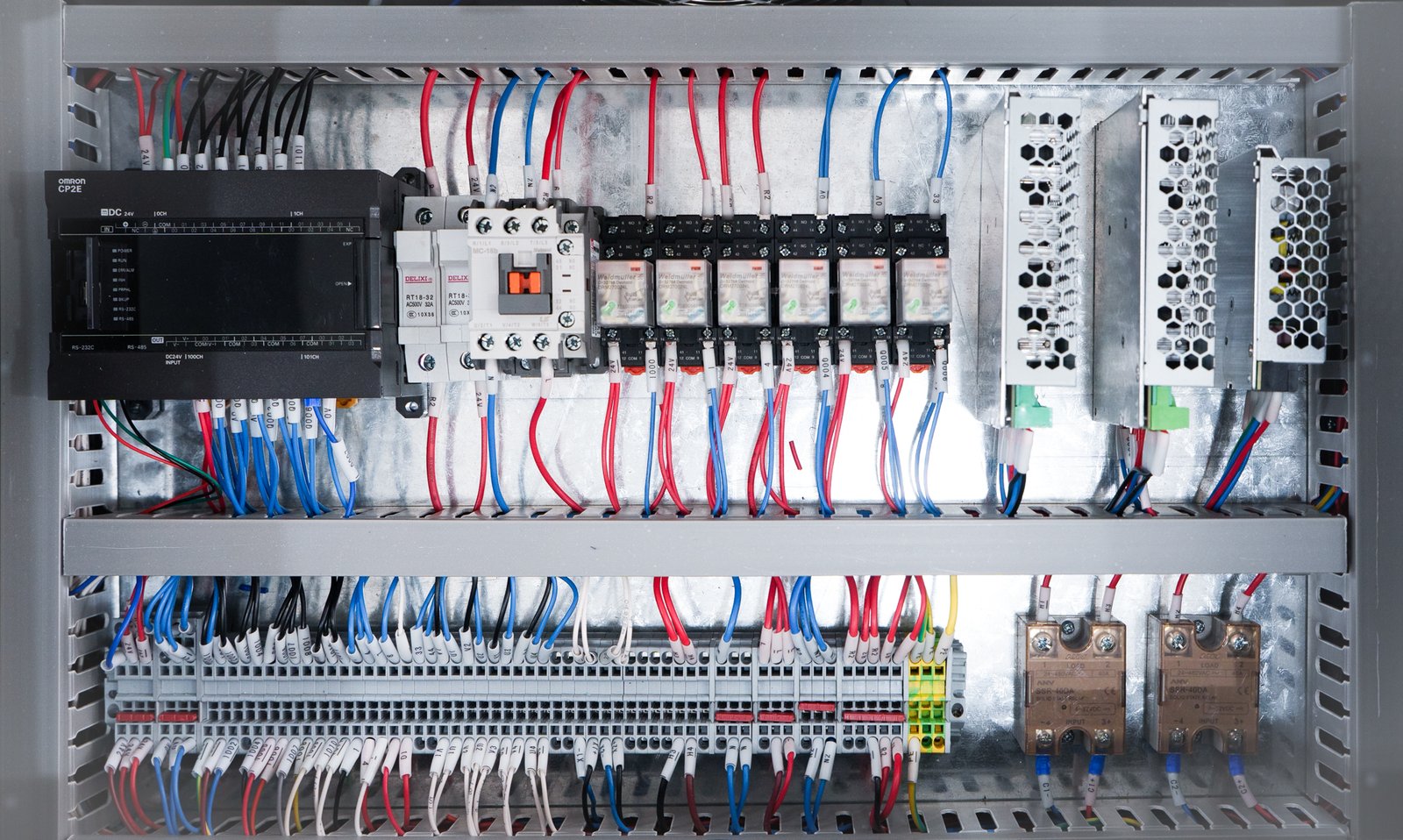

※ Intelligent & Stable: Equipped with Omron PLC programmable control, featuring safety protection and fault alarm functions to prevent miscutting of packages; ensures stable and reliable operation.

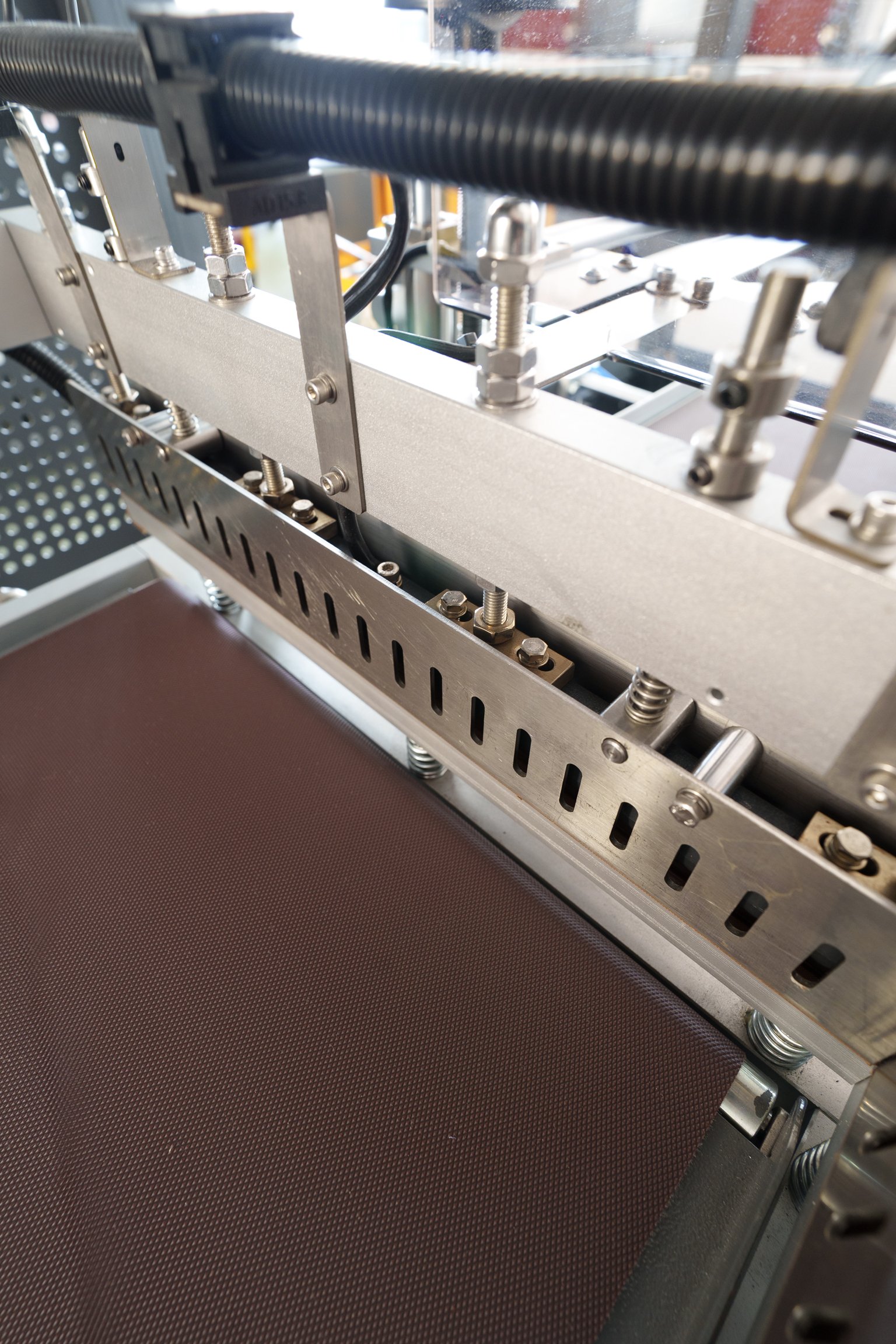

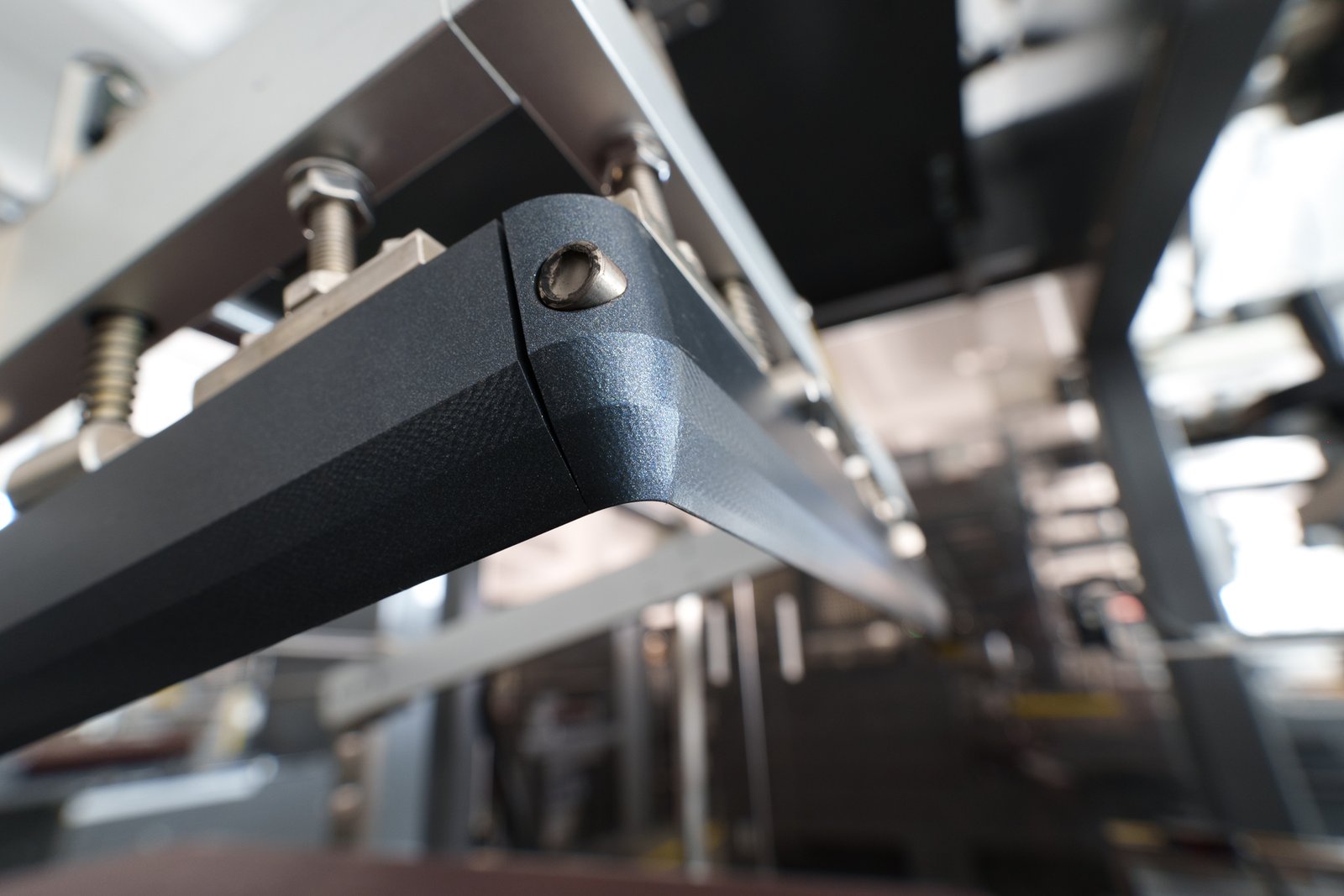

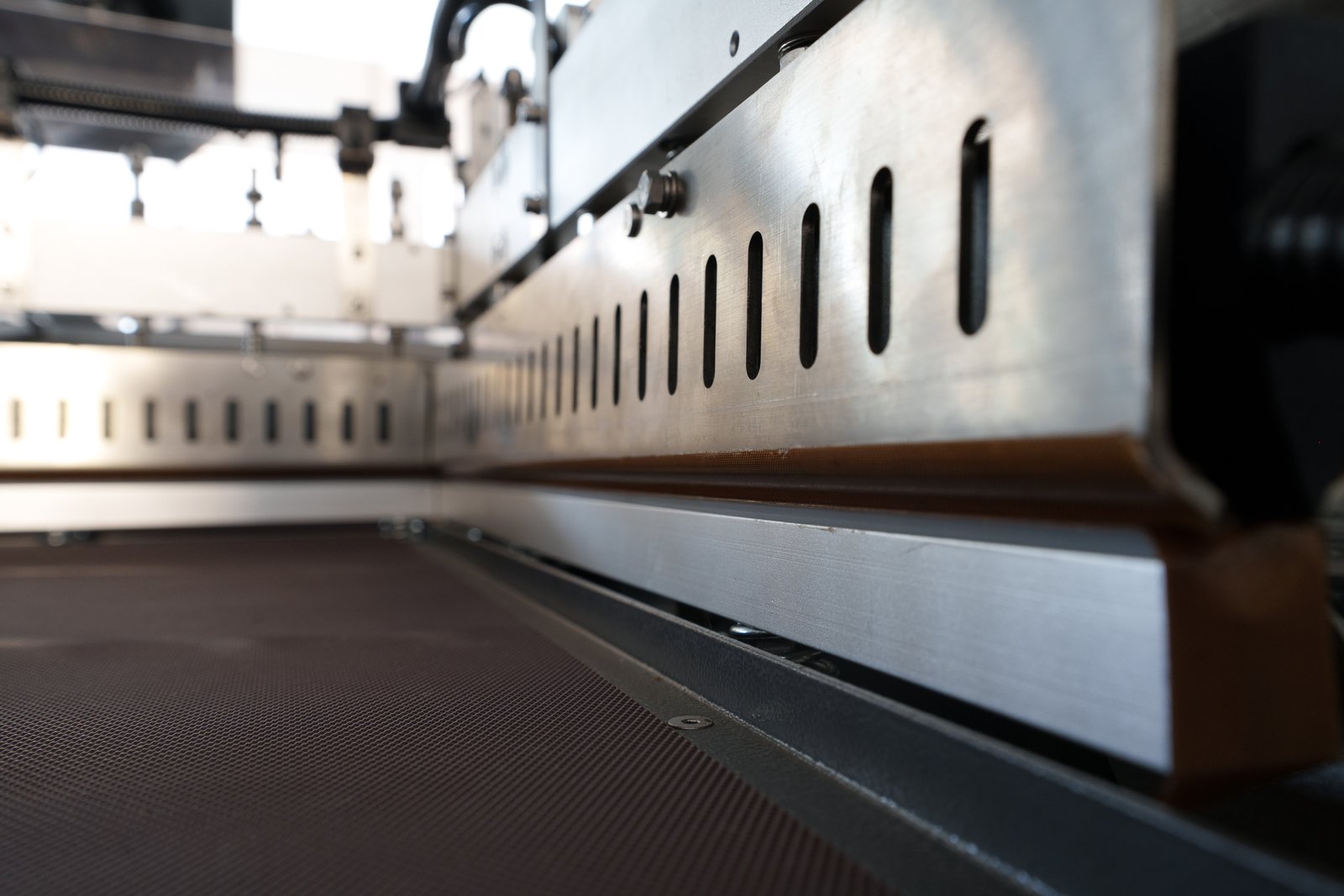

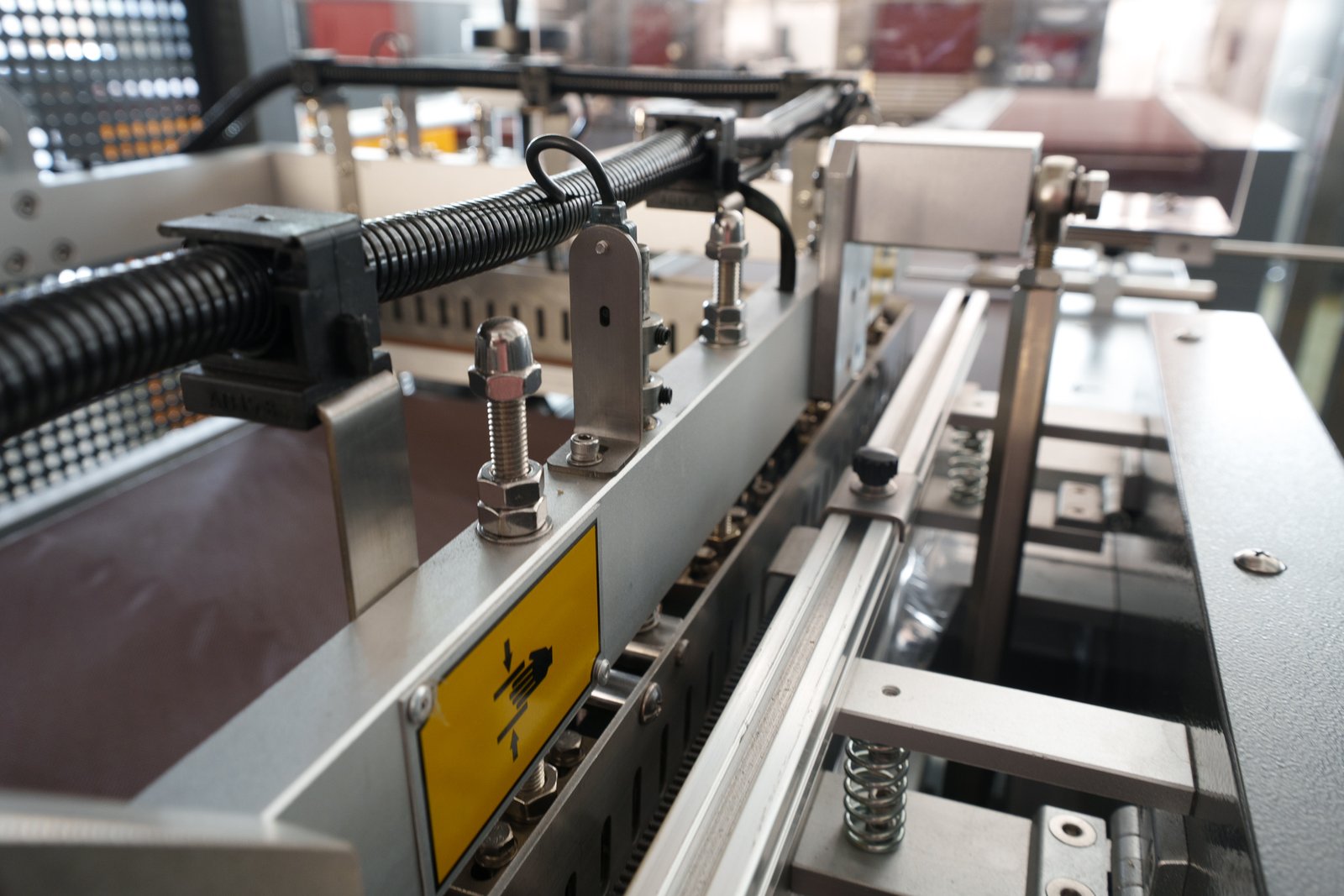

※ Strong Seal: The sealing blade is coated with DuPont Teflon non-stick coating, resulting in smooth seals that do not crack or scorch.

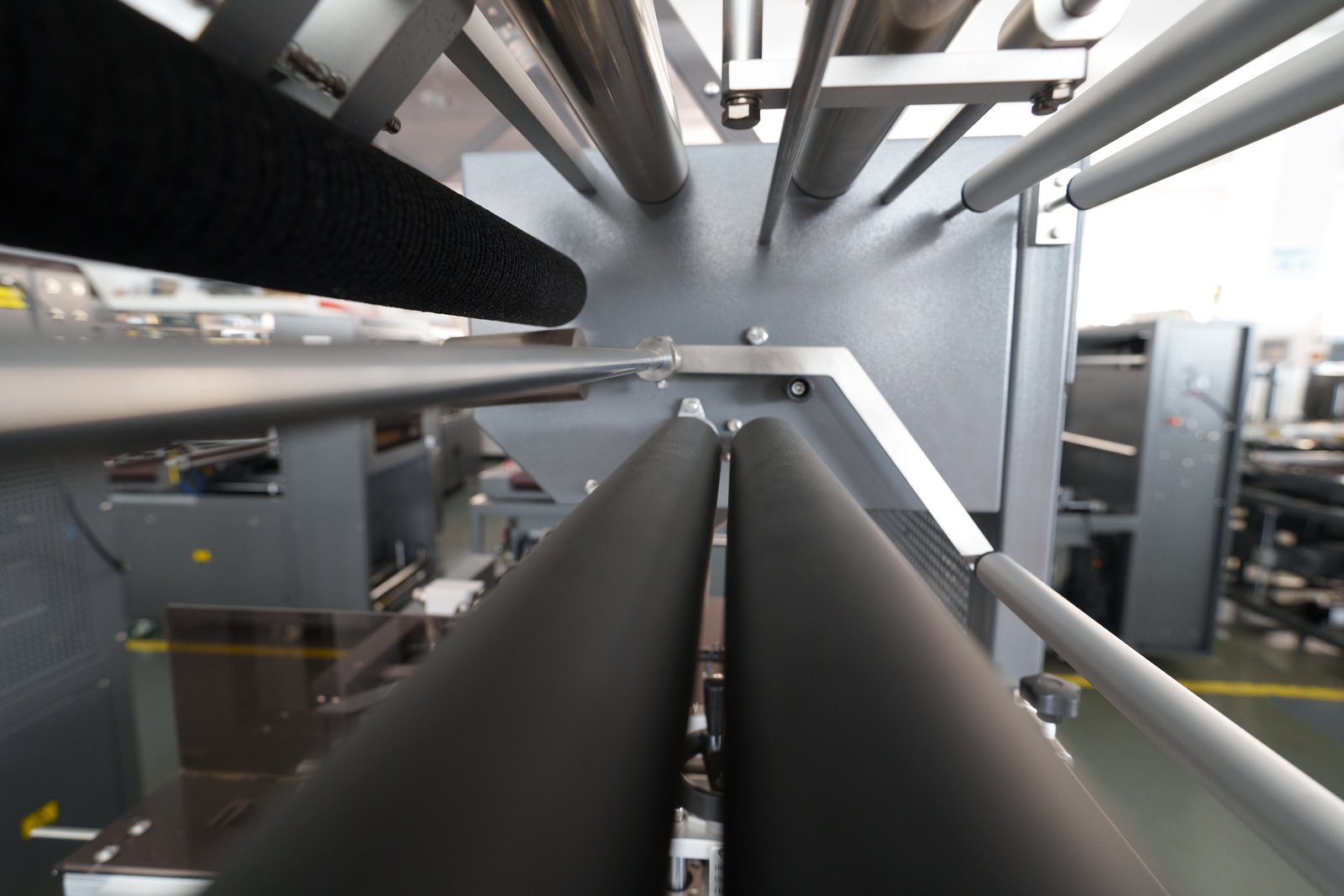

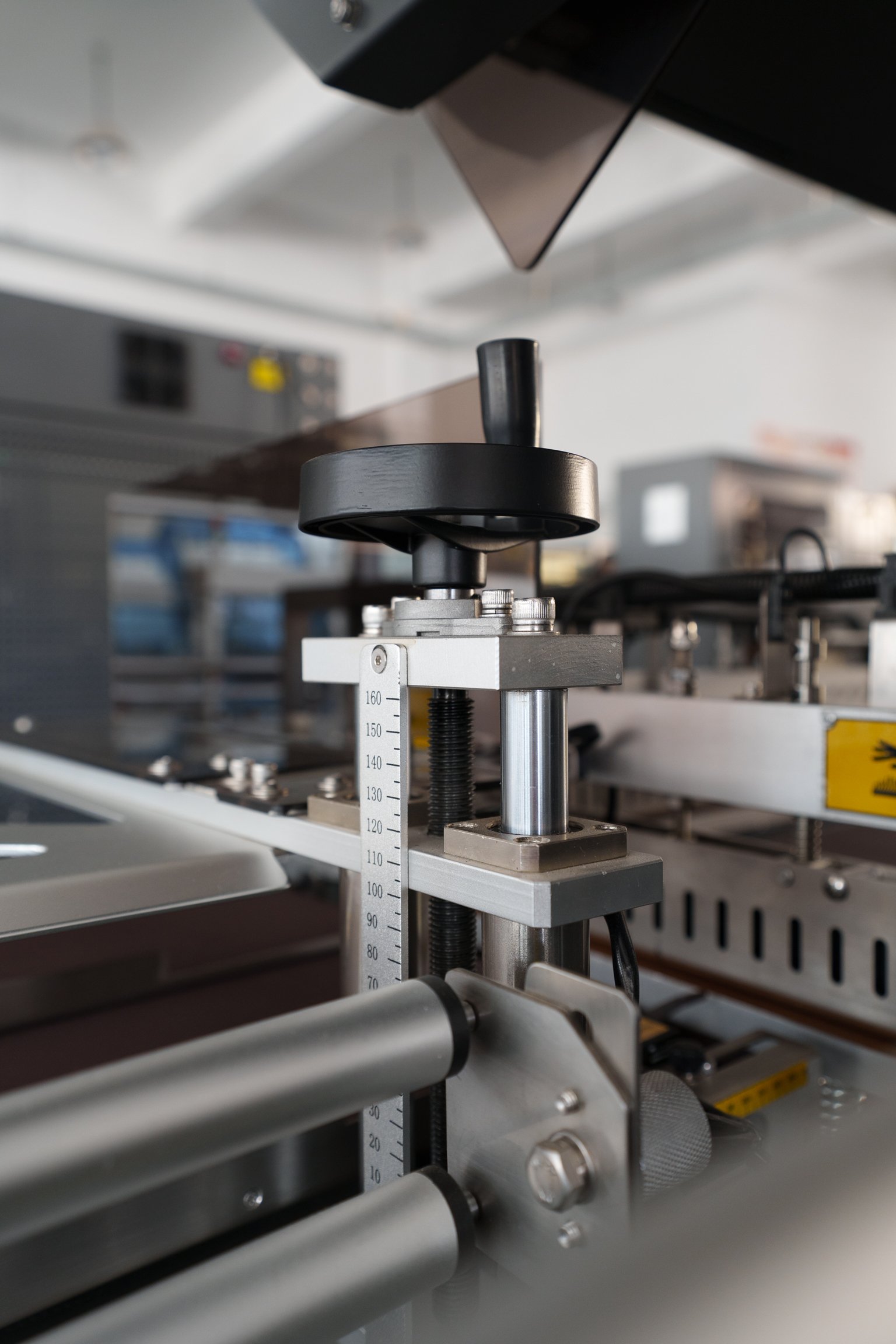

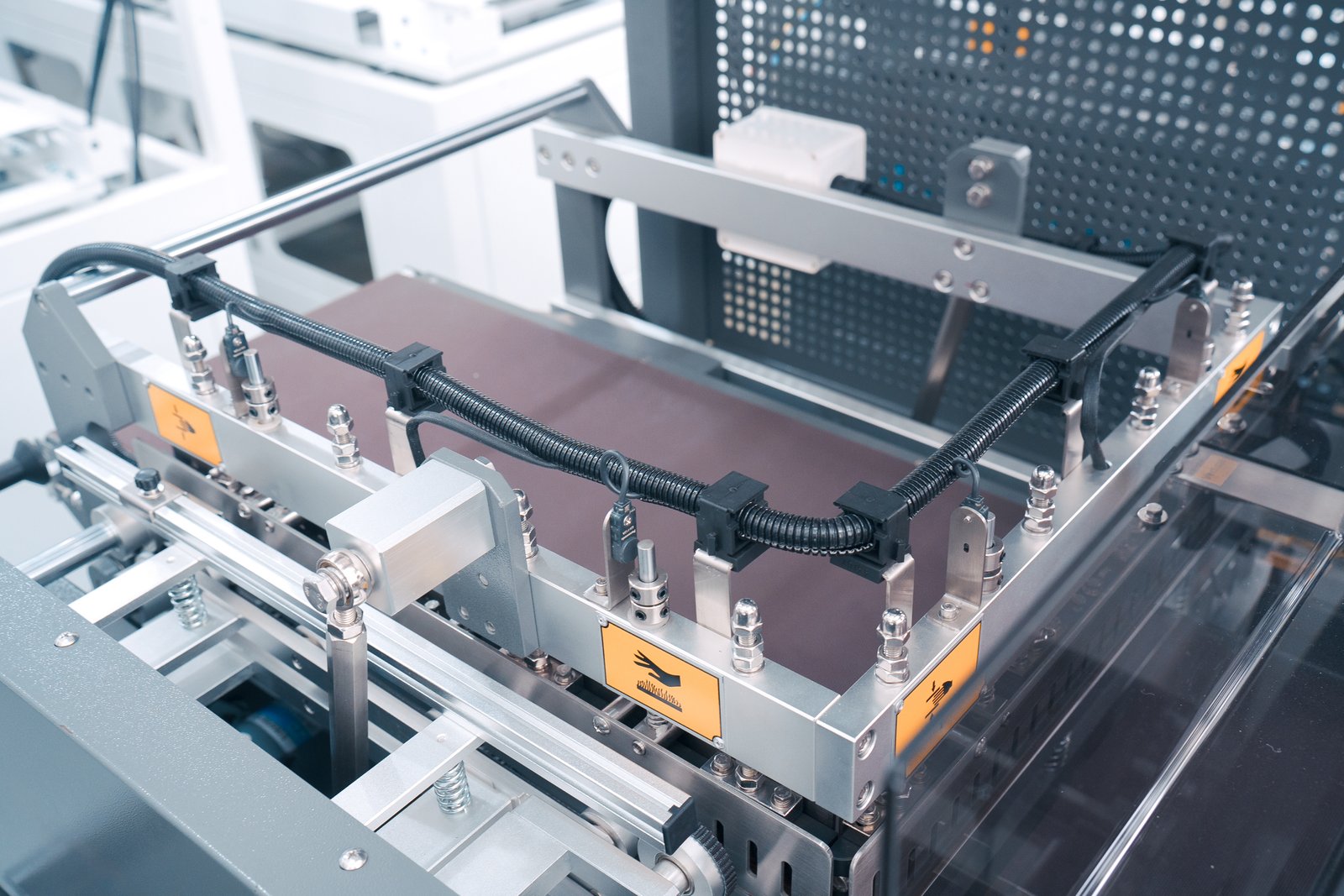

※ Flexible Adjustment: The film guide device and infeed height are both adjustable, allowing adaptation to different product sizes without changing molds.

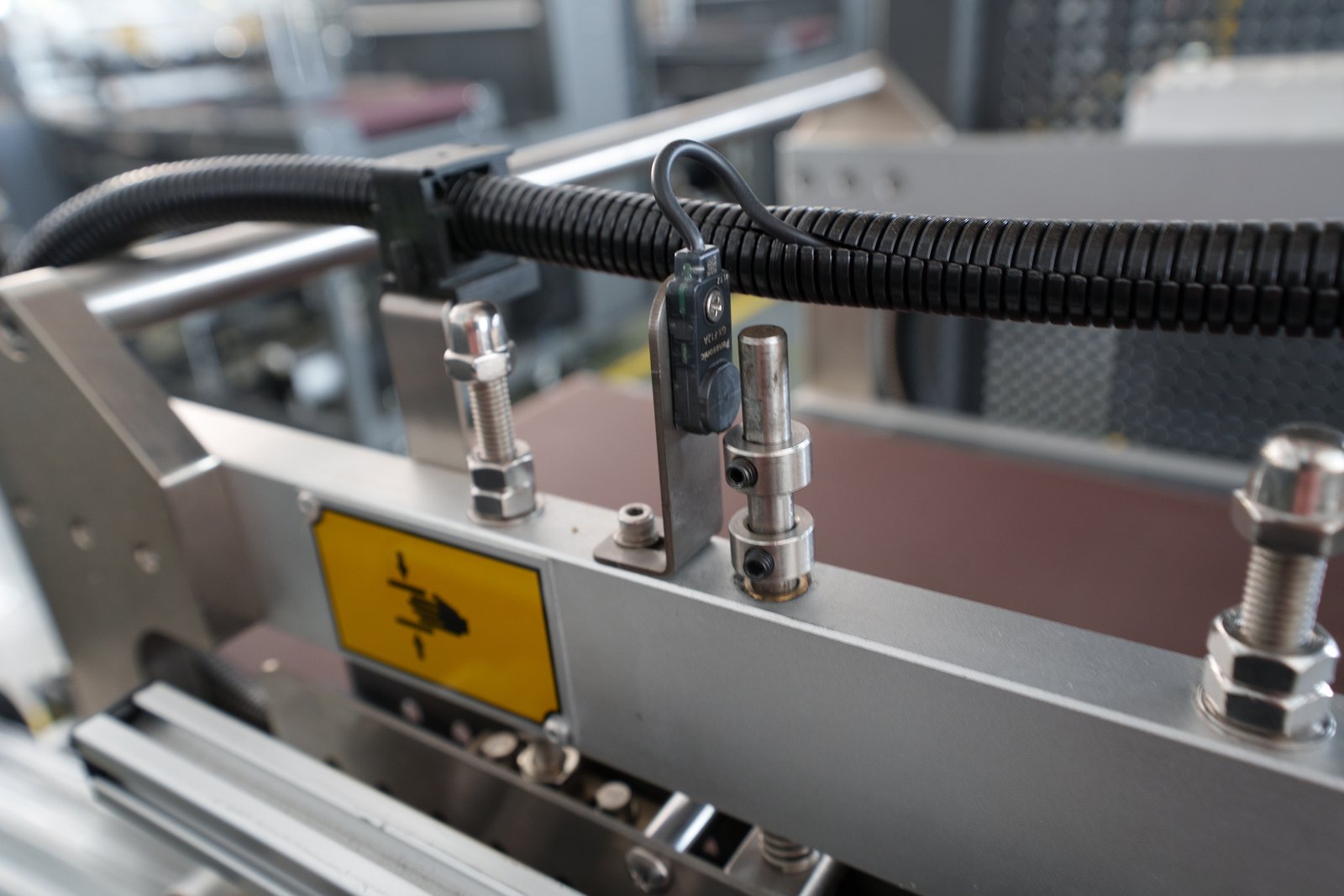

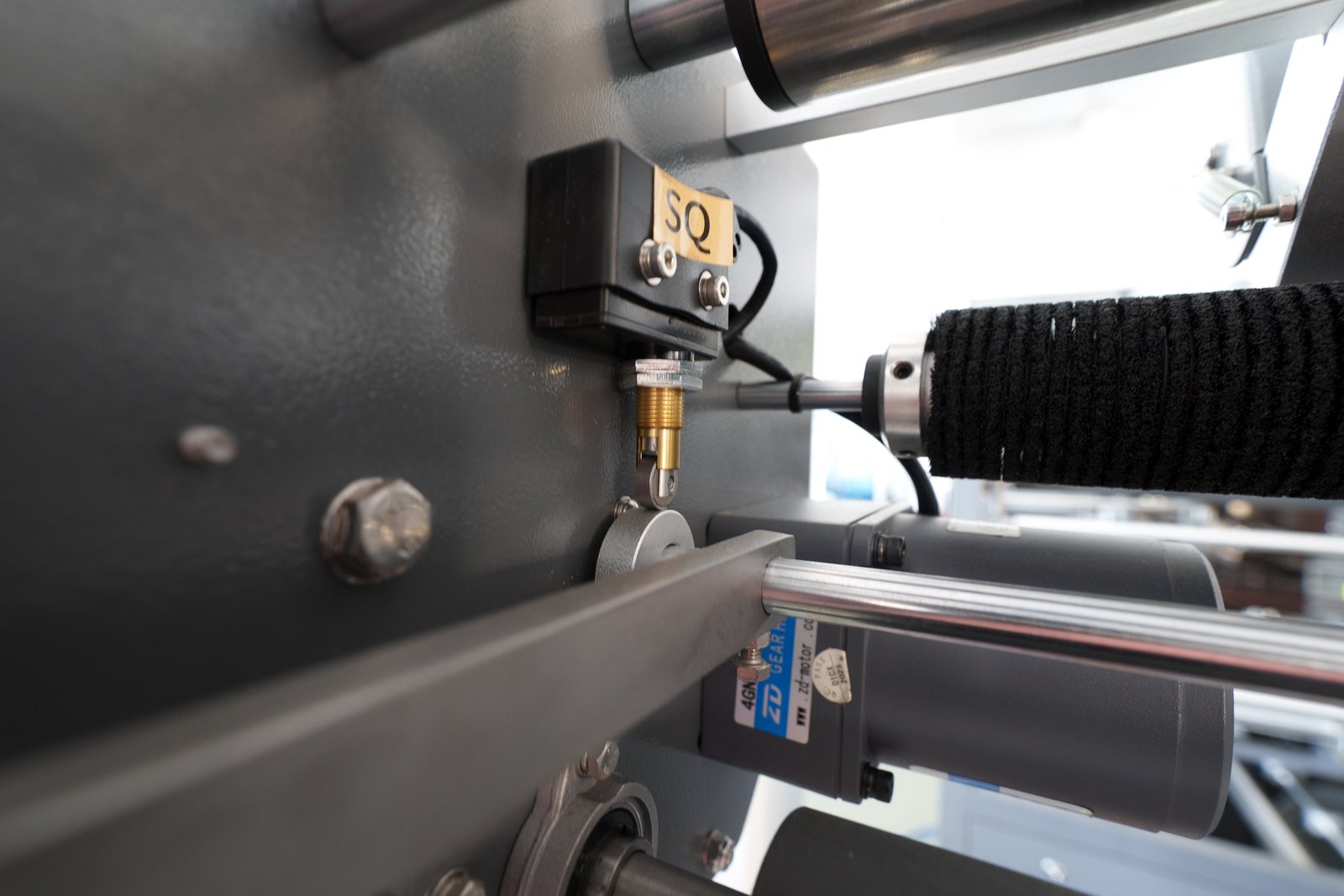

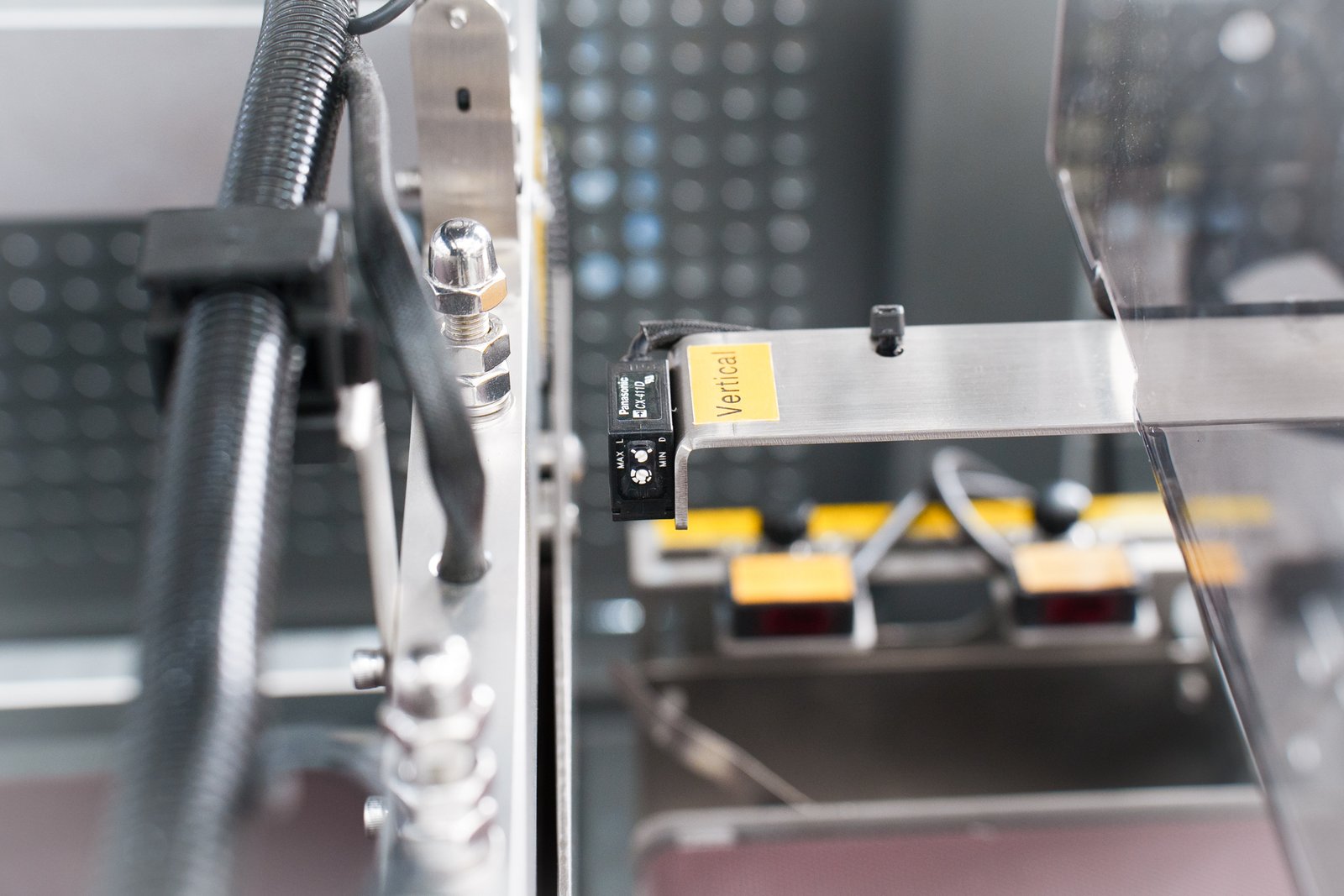

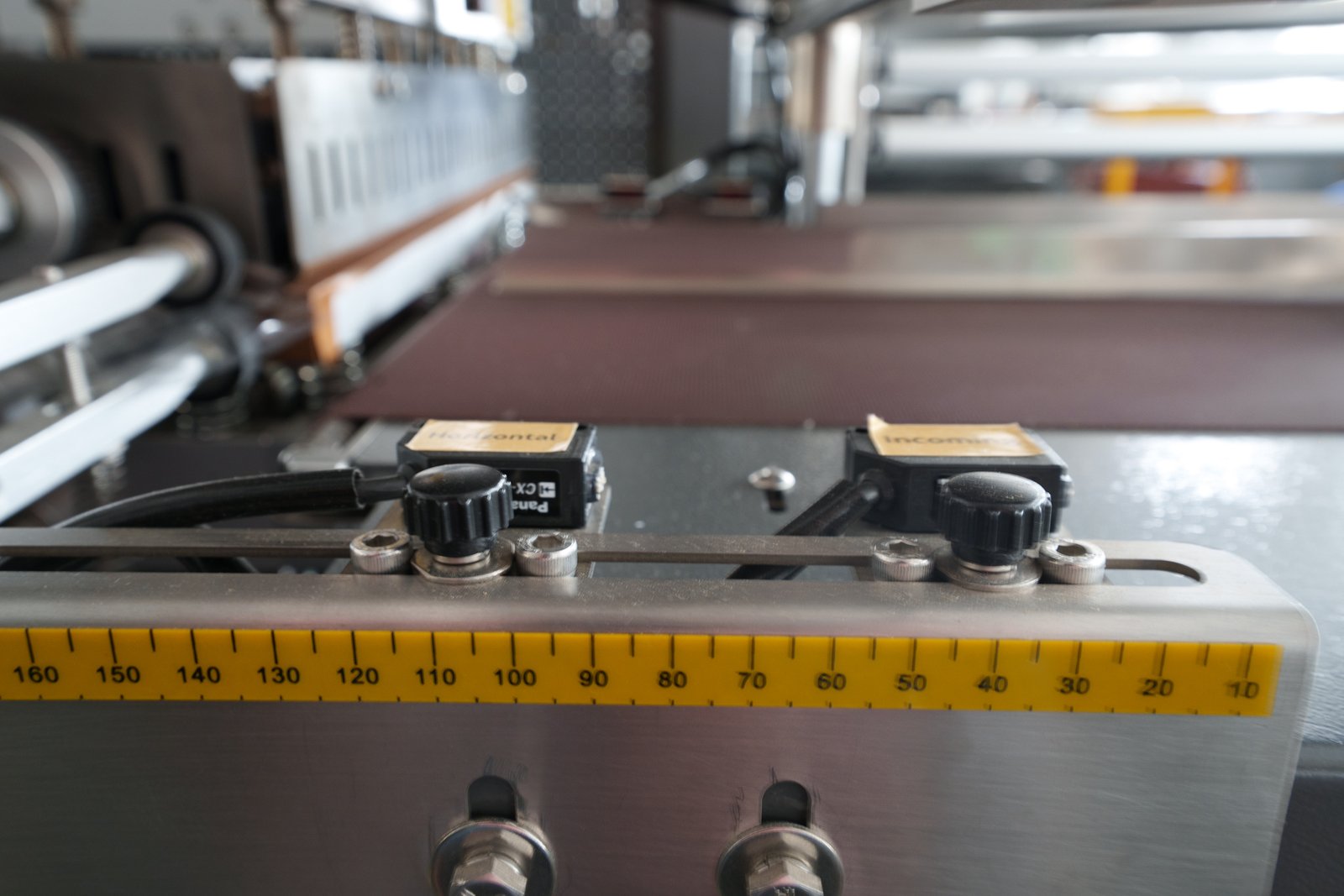

※ Precise Detection: Comes with two sets of Panasonic photoelectric sensors (horizontal and vertical). By switching between them, it accurately detects thinner and smaller items.

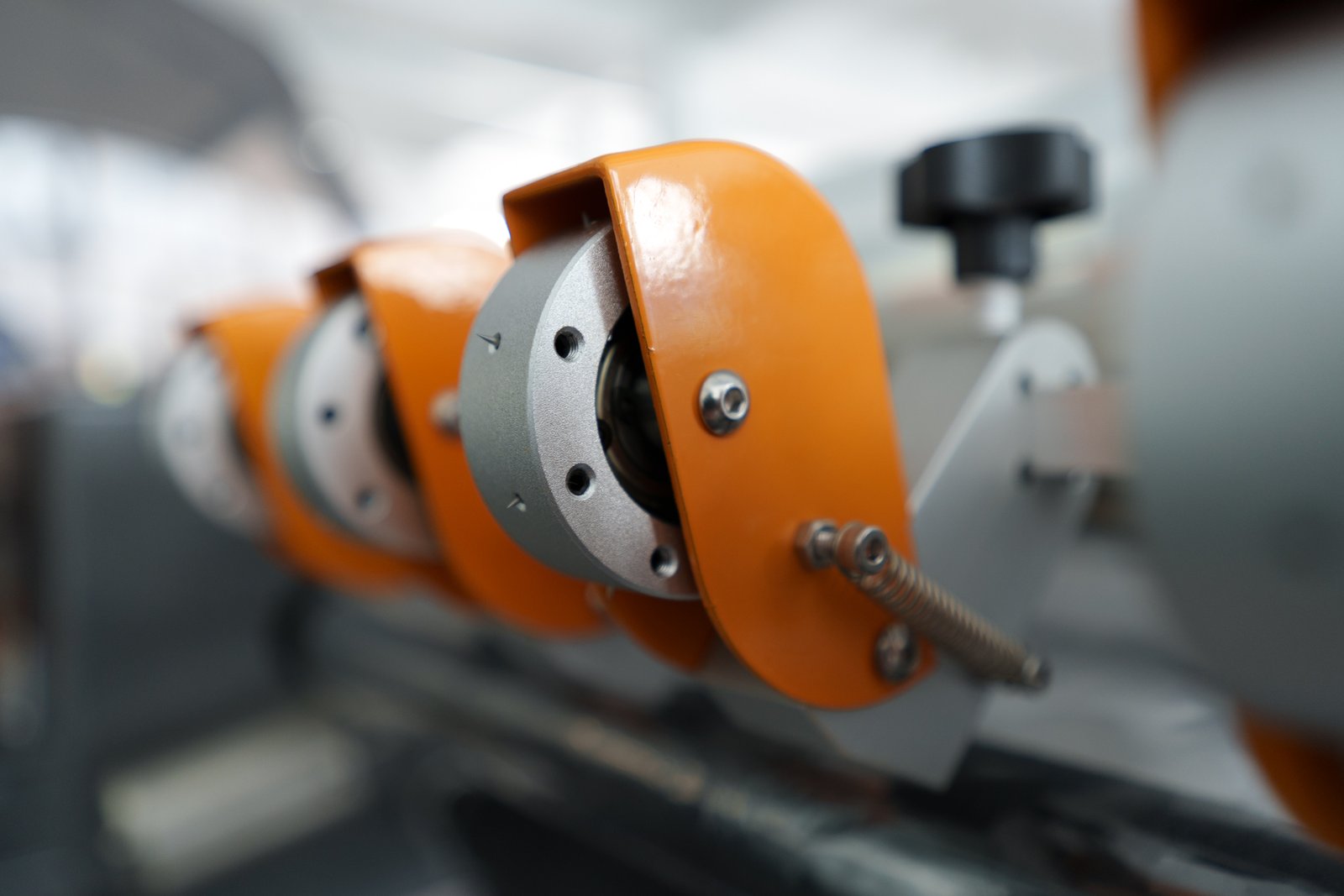

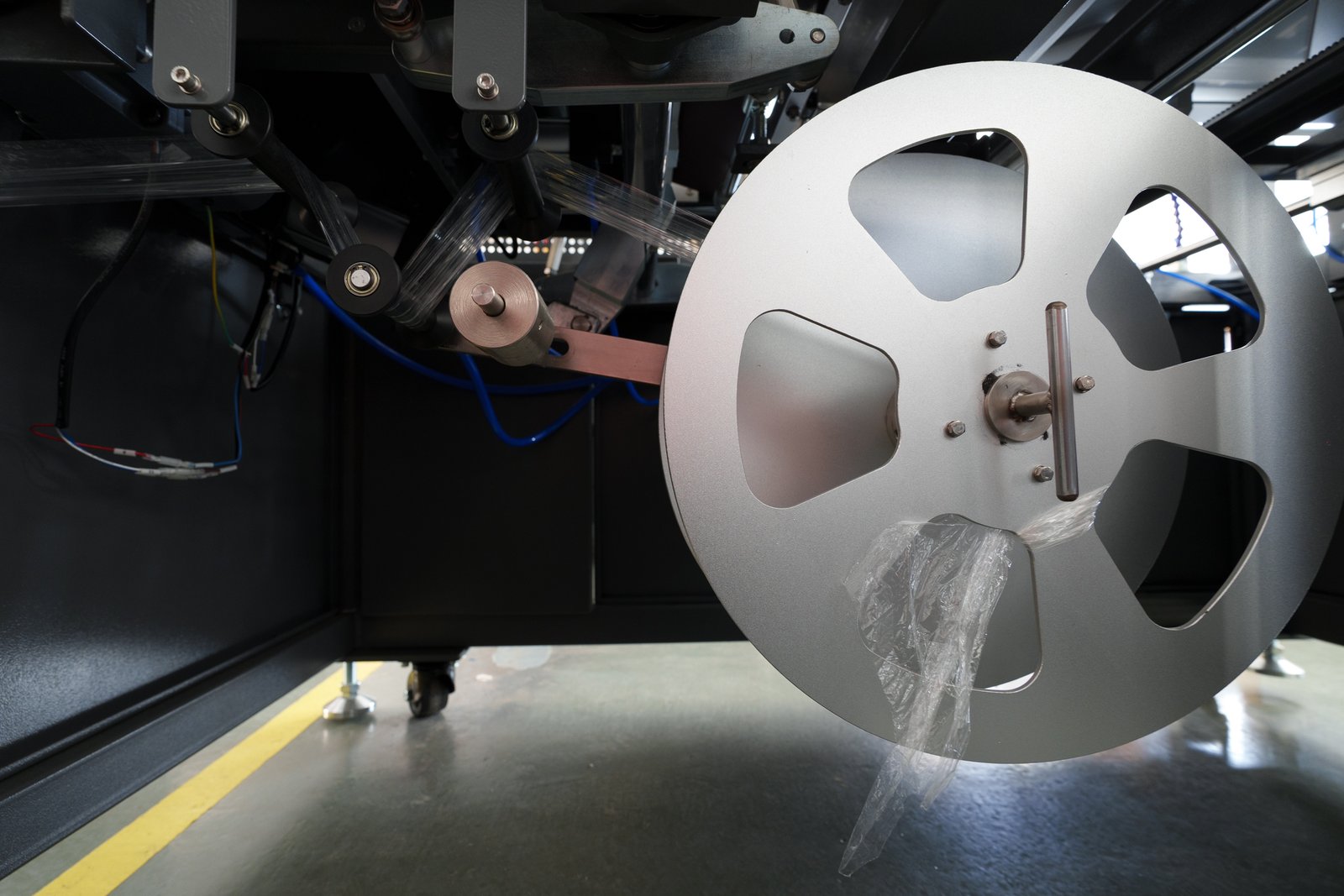

※ Automatic Assistance: PLC controls bag length; independent motor automatically winds waste edges; movable punching device for more attractive exhaust packaging.
※ Small-Item Enhancement: The HF-450M model features close-coupled infeed and outfeed conveyors, making it easy to package even smaller products, thereby expanding its application range.

※ Adopts a roller-type conveyor system, with each roller wrapped in high-temperature resistant silicone tubing. Each roller rotates freely, ensuring smooth transport without damaging the film.
※ Equipped with slow-heating stainless steel heating tubes. The furnace chamber features a three-layer aluminum silicate wool insulation design, reducing heat loss while providing fast heating and excellent temperature retention.
※ Fitted with a customized circulation motor, creating a two-way hot air circulation system. Heat is evenly distributed within the furnace chamber, ensuring stable temperature control.
※ Shrink temperature and conveyor speed can be adjusted independently to suit different products, guaranteeing optimal shrink results.
※ Utilizes a recirculating hot air inner chamber structure, where hot air circulates only within the furnace chamber, effectively preventing heat loss and delivering energy-efficient, stable performance.

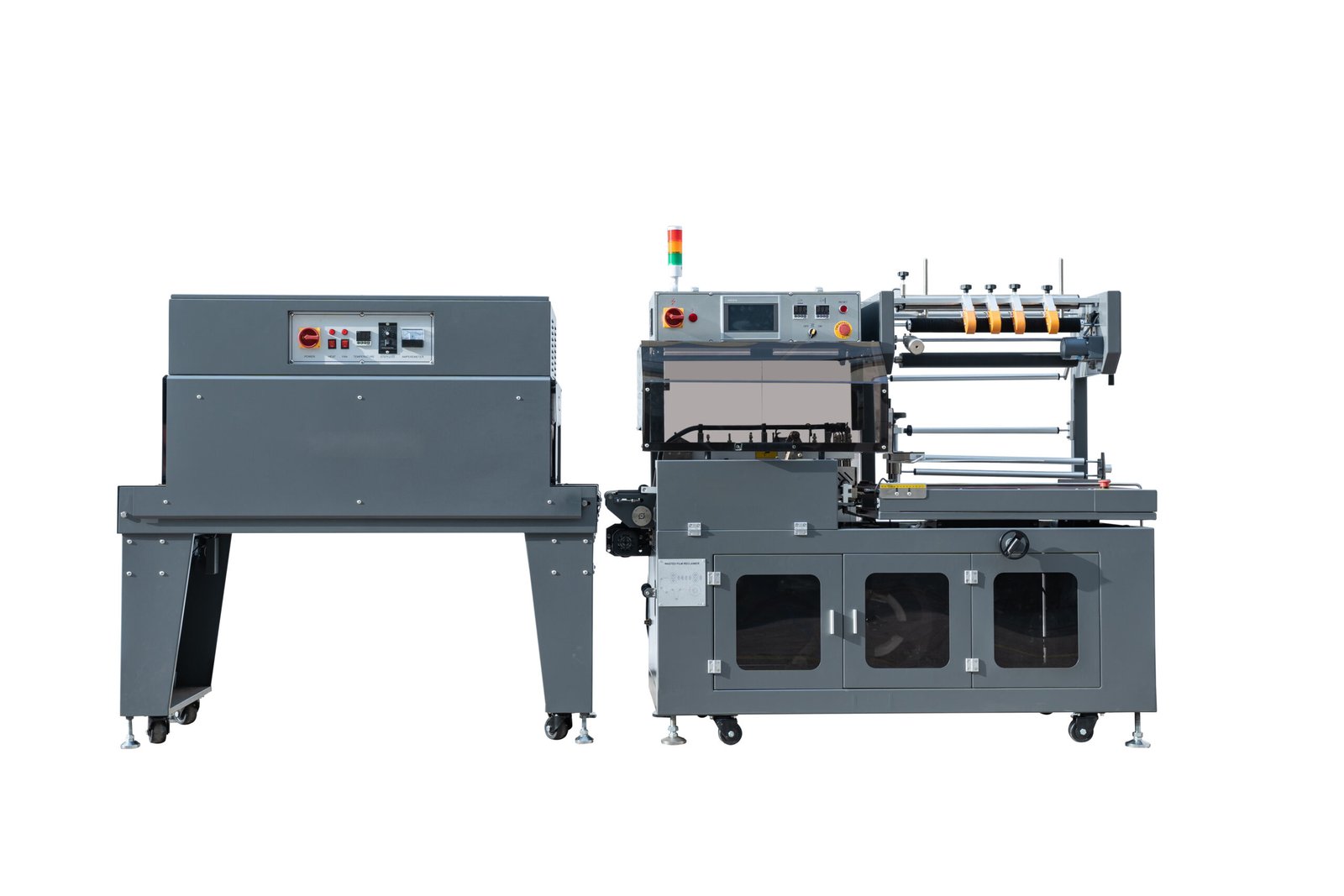

| Model | HF-450/450M | HF-550/550M | HT-400 |
| Max. Sealing Size | L550×W450mm | L650×W600mm | —— |
| Tunnel dimensions | —— | —— | 1200×400×200mm |
| Applicable Product Packaging Dimensions | L+H≤450mm W+H≤410mm H≤150mm | L+H≤560mm W+H≤550mm H≤130mm | L700×W350×H150mm |
| Packaging Speed | 10-25 packs/minute (depending on product size/shrink film material) | 10-25 packs/minute (depending on product size/shrink film material) | 0-15m/min |
| Power Supply & Total Power | 220V/50Hz, 2.5kw | 220V/50Hz, 3kW | 380V/50Hz, 12kW |
| Max. Current | 10A | 14A | 40A |
| Required Air Pressure | 0.6Mpa | 0.6Mpa | —— |
| Machine Weight | 330kg | 540kg | 235kg |
| Machine Dimensions | 1800×900×1600mm | 2050×1000×1600mm | 1500×700×1435mm |
| Remarks | The M type features a tight contact function, suitable for packaging small-sized items. | The M type features a tight contact function, suitable for packaging small-sized items. | —— |
