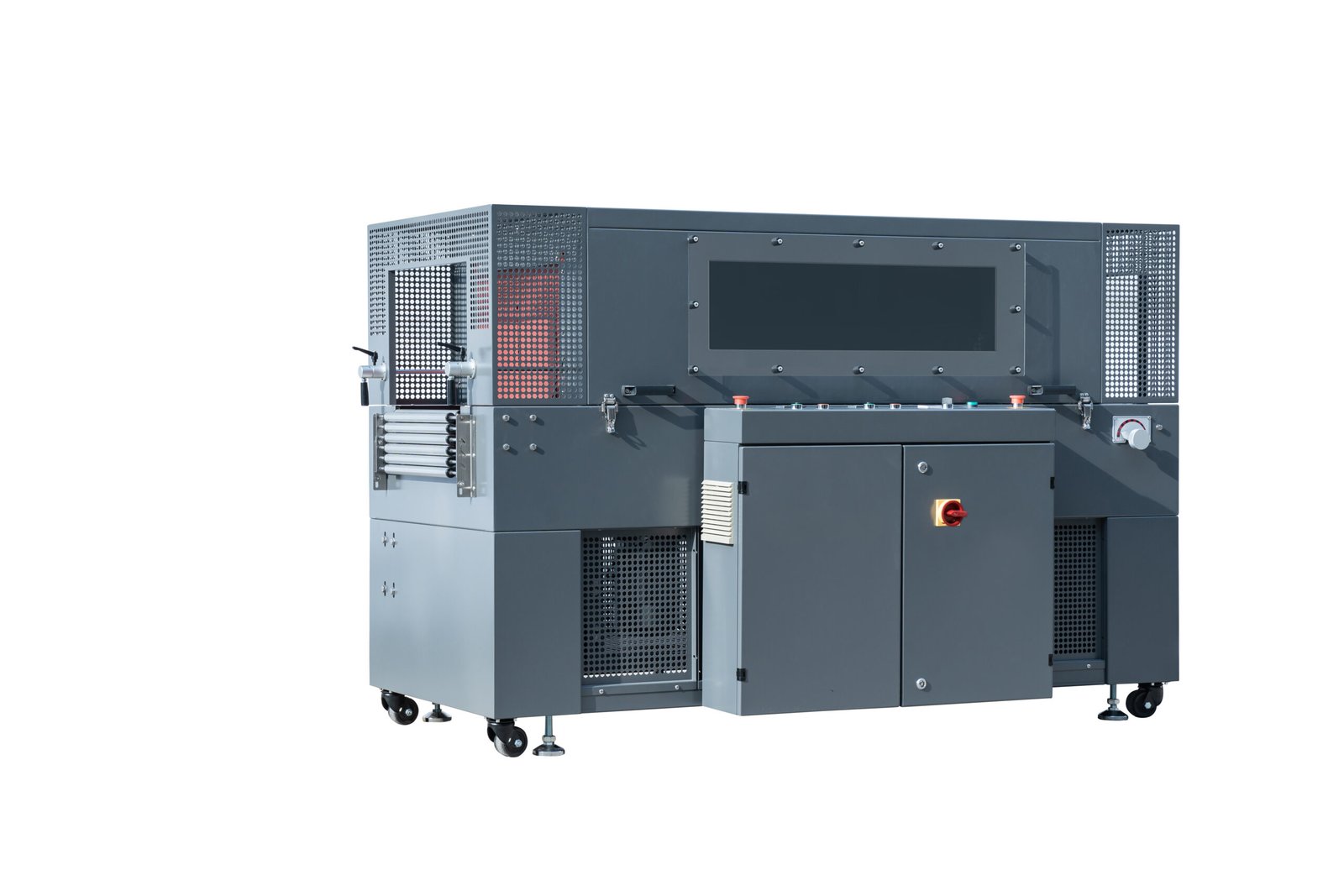

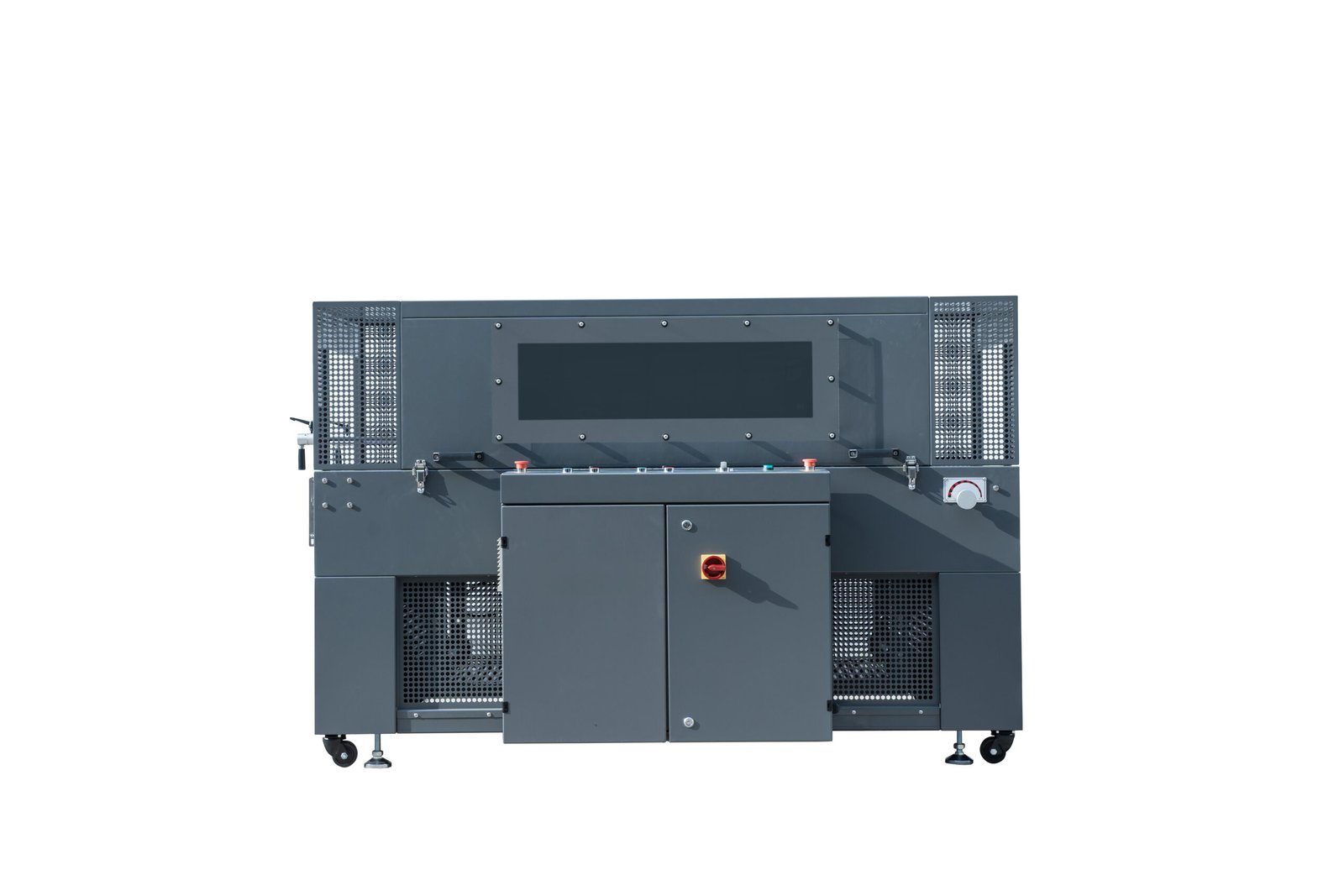

HT-400&500G

Highly versatile – suitable for a wide range of film packaging that requires baking.

⭐ Equipped with components from top-tier brands like Omron and Panasonic, delivering outstanding quality and exceptional reliability.

Substantial insulation materials and a heat recirculation design provide outstanding thermal efficiency, cutting energy use by as much as 20%.

Customizable to meet your needs, allowing easy integration into your production line. Compatible with a wide range of packaging machines.

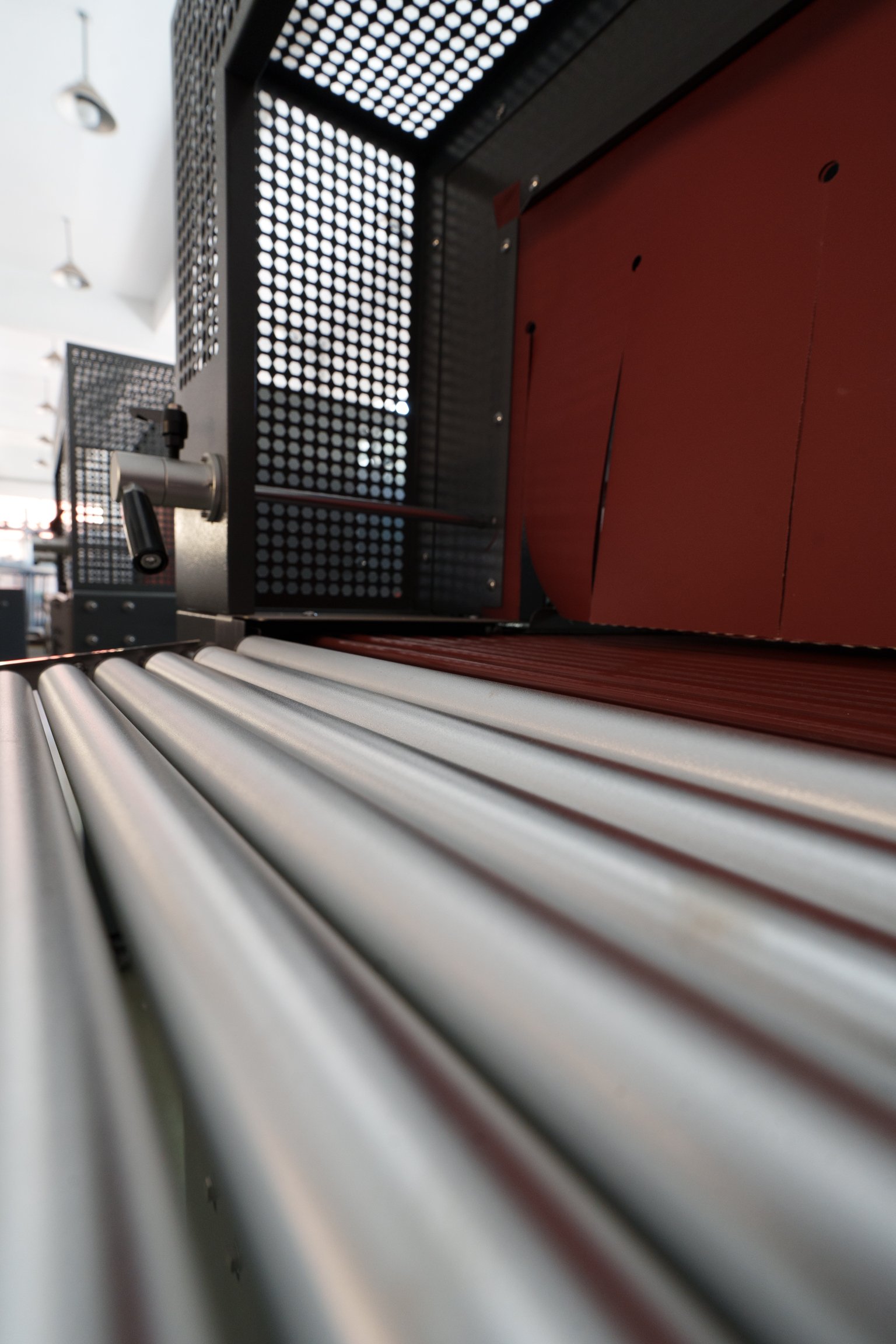

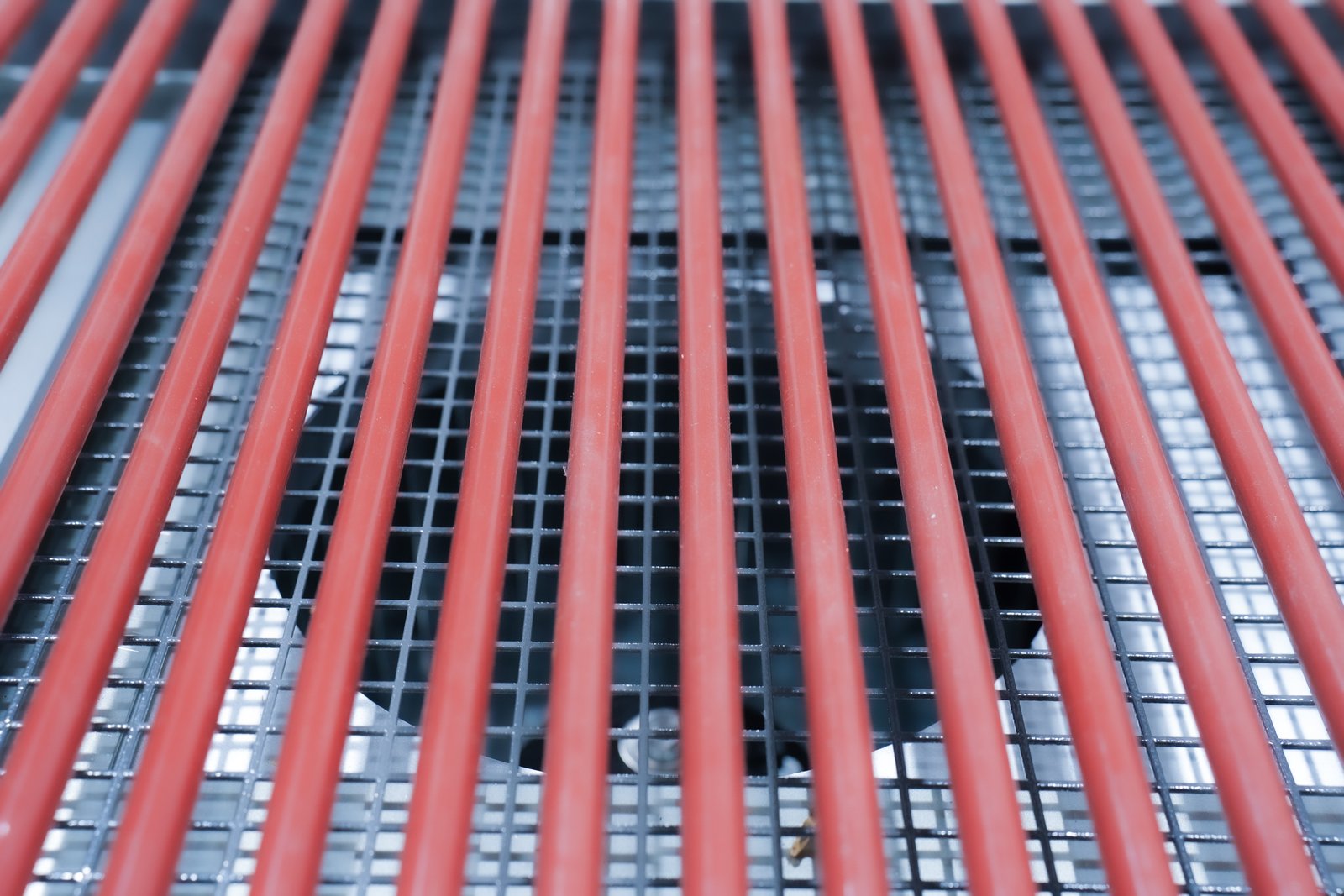

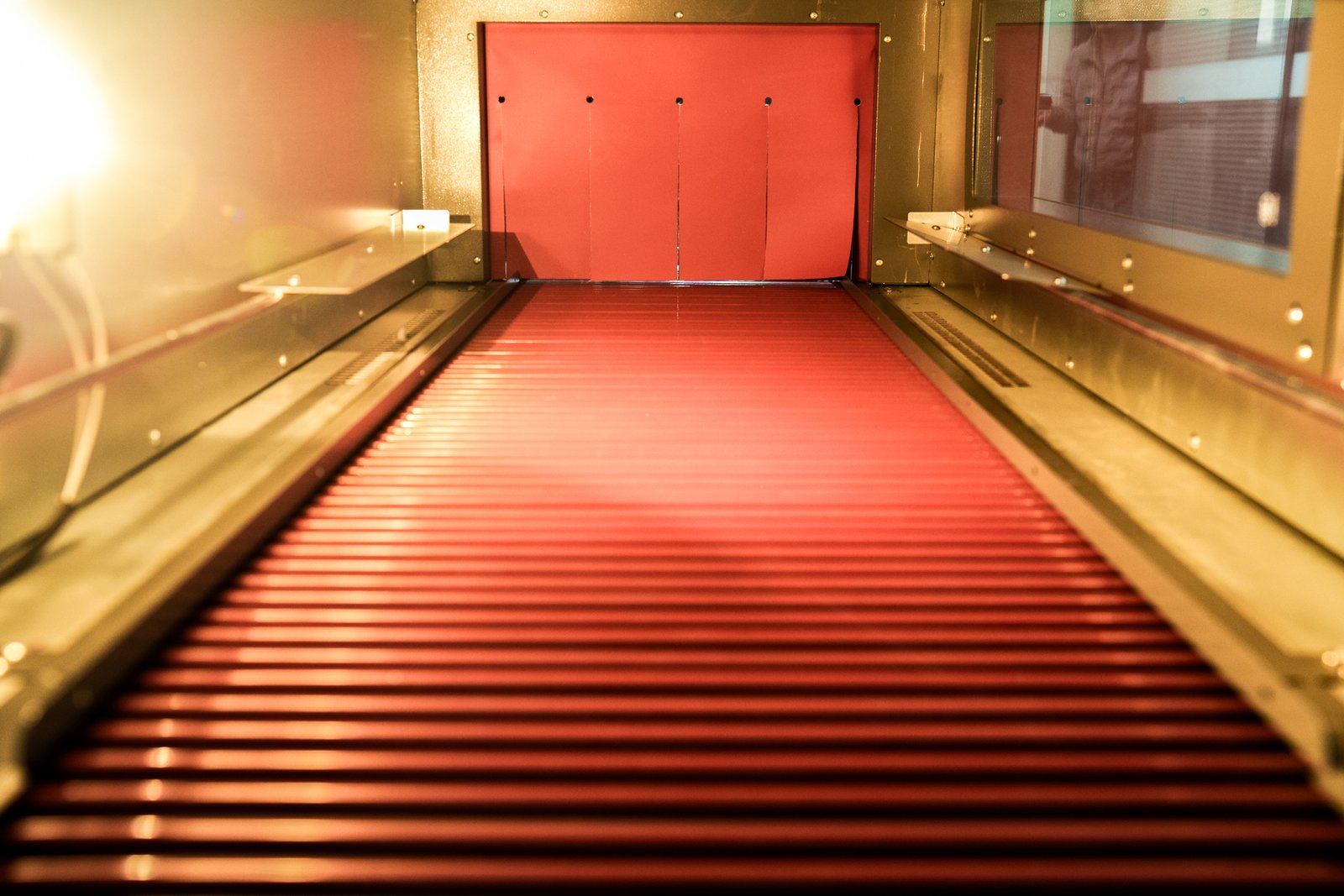

Adopts a roller-type conveyor system, with each roller wrapped in high-temperature resistant silicone tubing. Each roller rotates independently and freely, ensuring smooth transport without damaging the film.

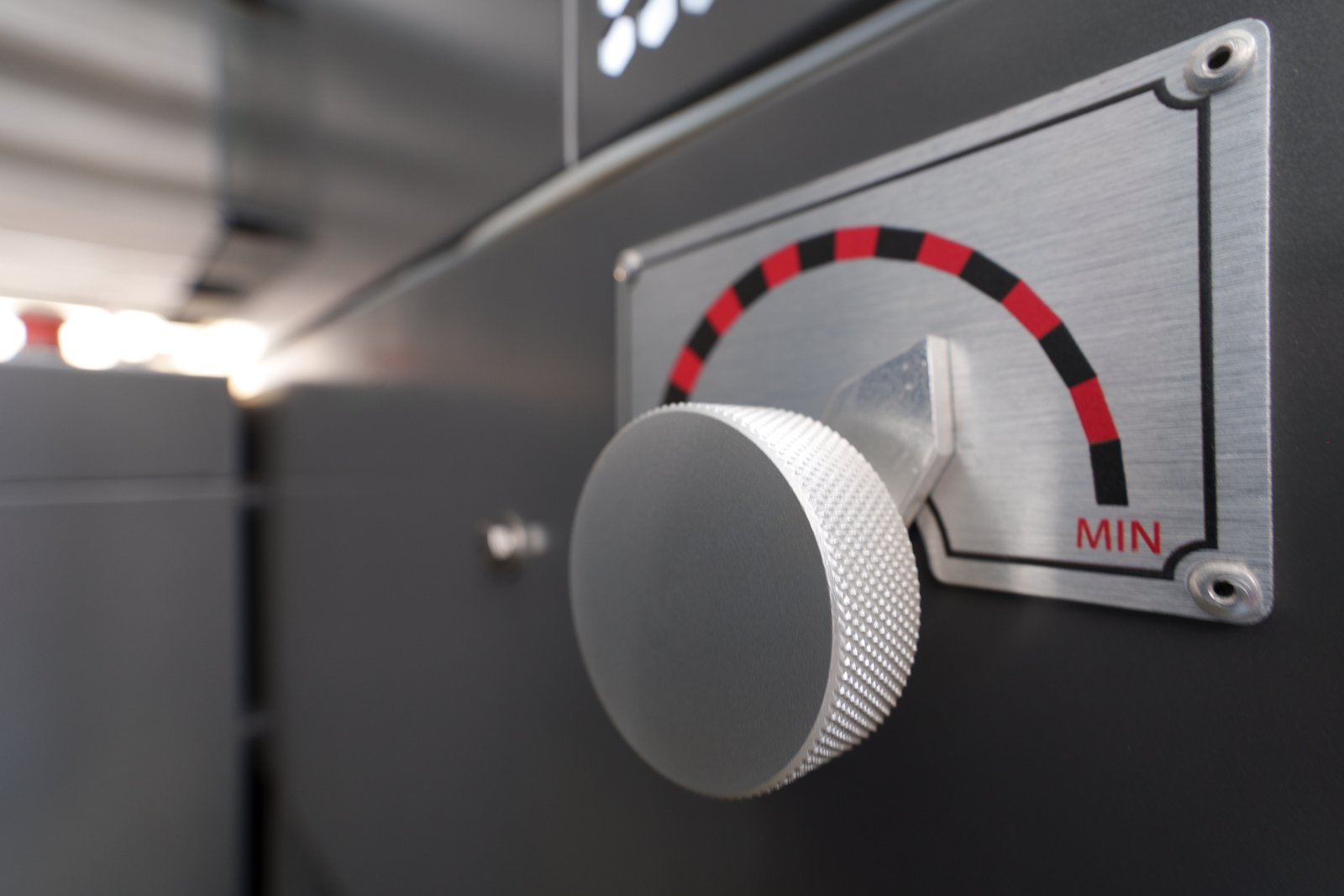

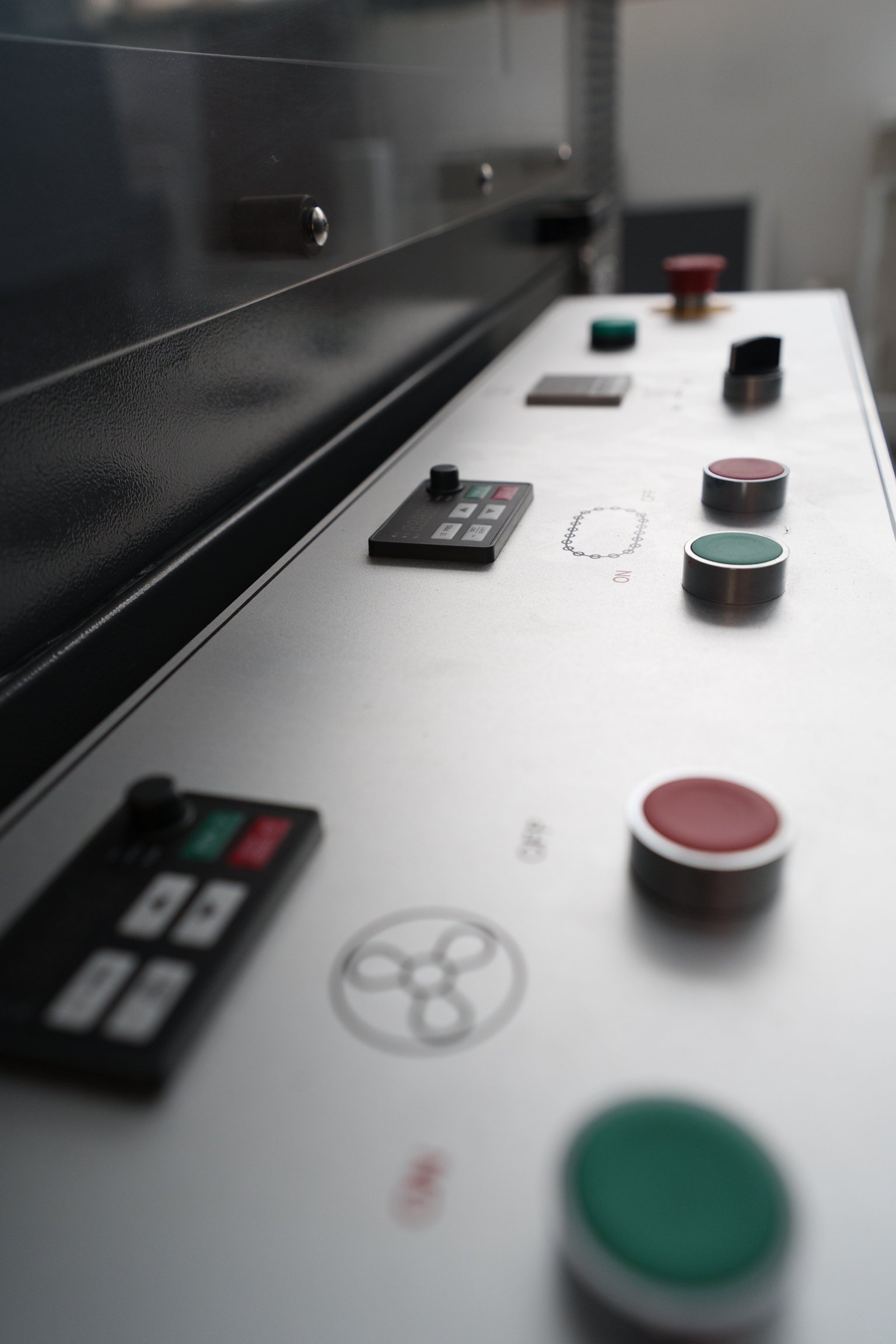

Airflow intensity and conveyor speed are controlled and adjusted via inverters, allowing adaptation to different products for more even and consistent shrink results.

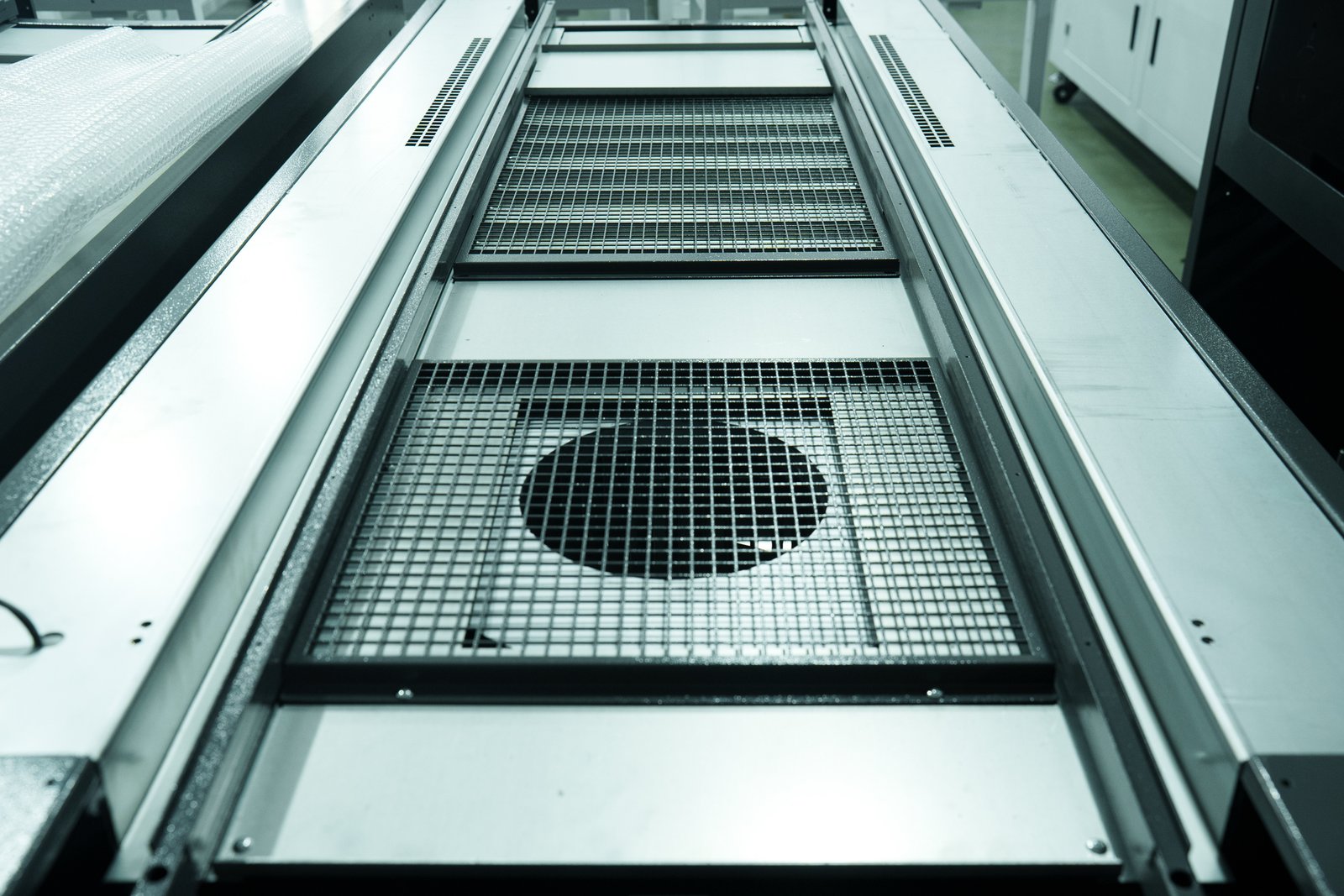

Utilizes a bottom-mounted circulating fan combined with an open-accessible structure design. The air outlet directions at the bottom and sides are adjustable, allowing air and heat to fully circulate within the chamber. This results in fast heating, high thermal efficiency, and improved energy savings.

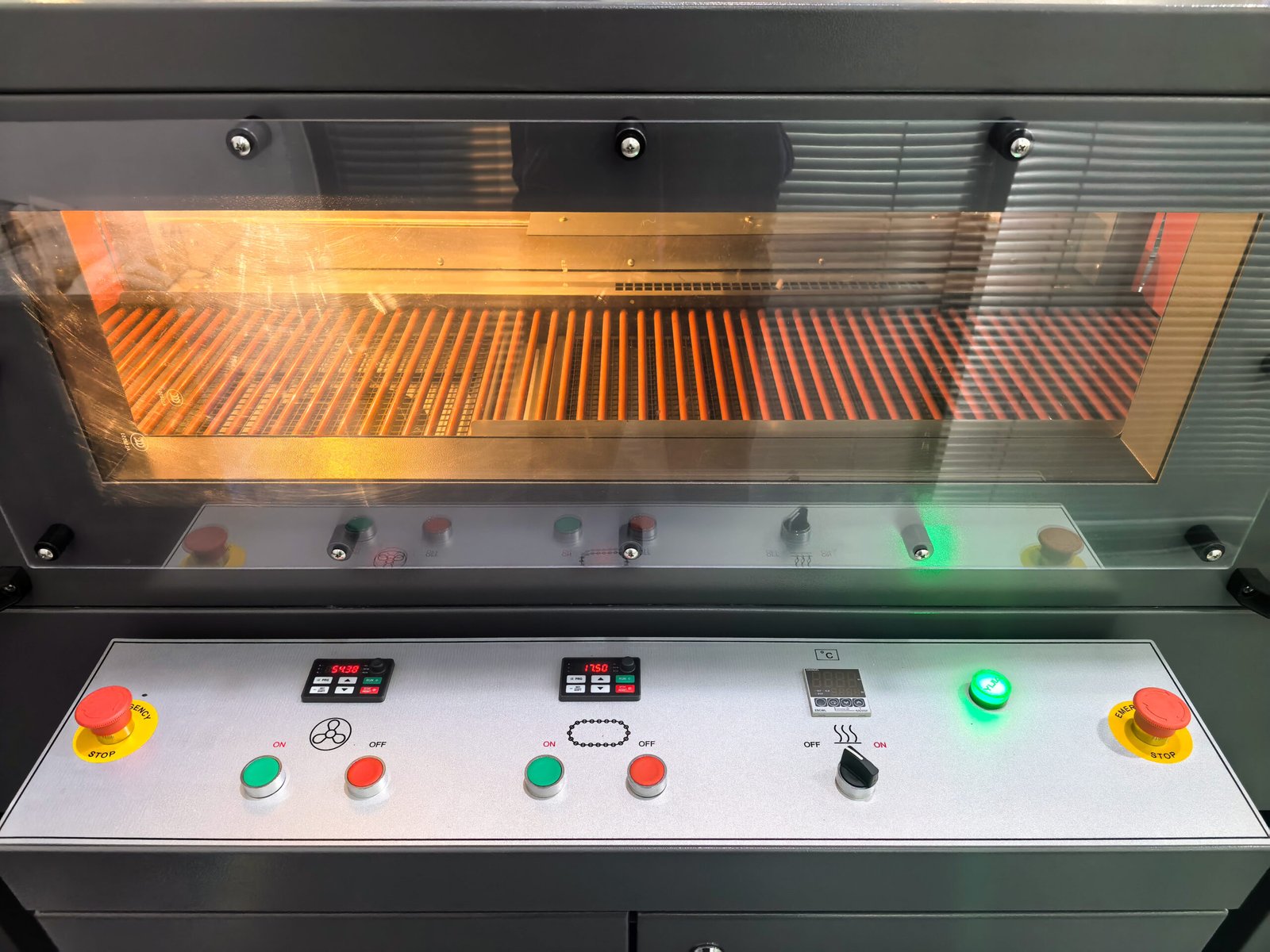

Simple operation with automatic temperature control. Temperature accuracy can reach ±1°C, ensuring stable and reliable temperature control for consistent shrink quality.

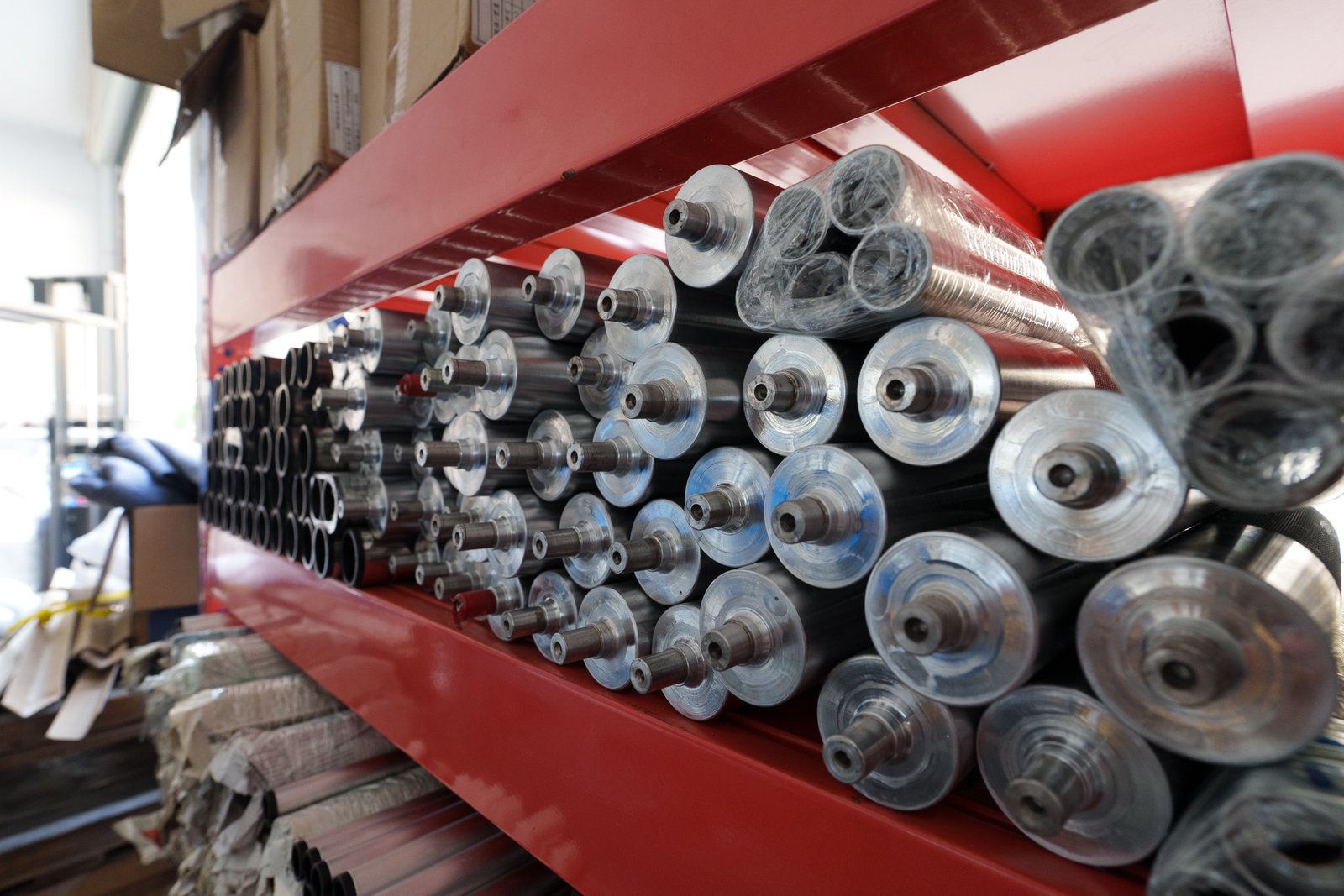

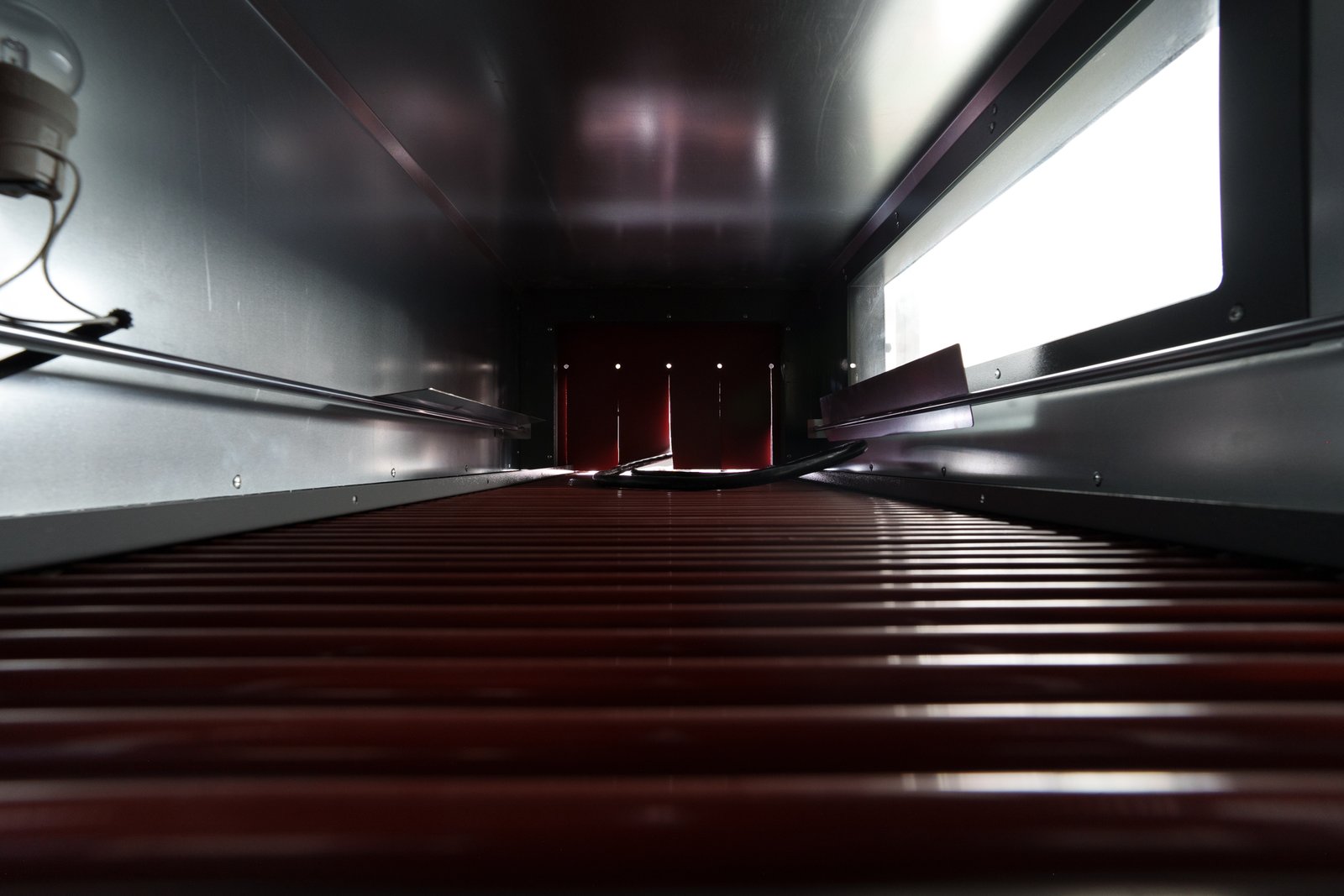

Adopts a roller-type conveyor system, with each roller wrapped in high-temperature resistant silicone tubing. Each roller rotates freely, ensuring smooth transport without damaging the film.

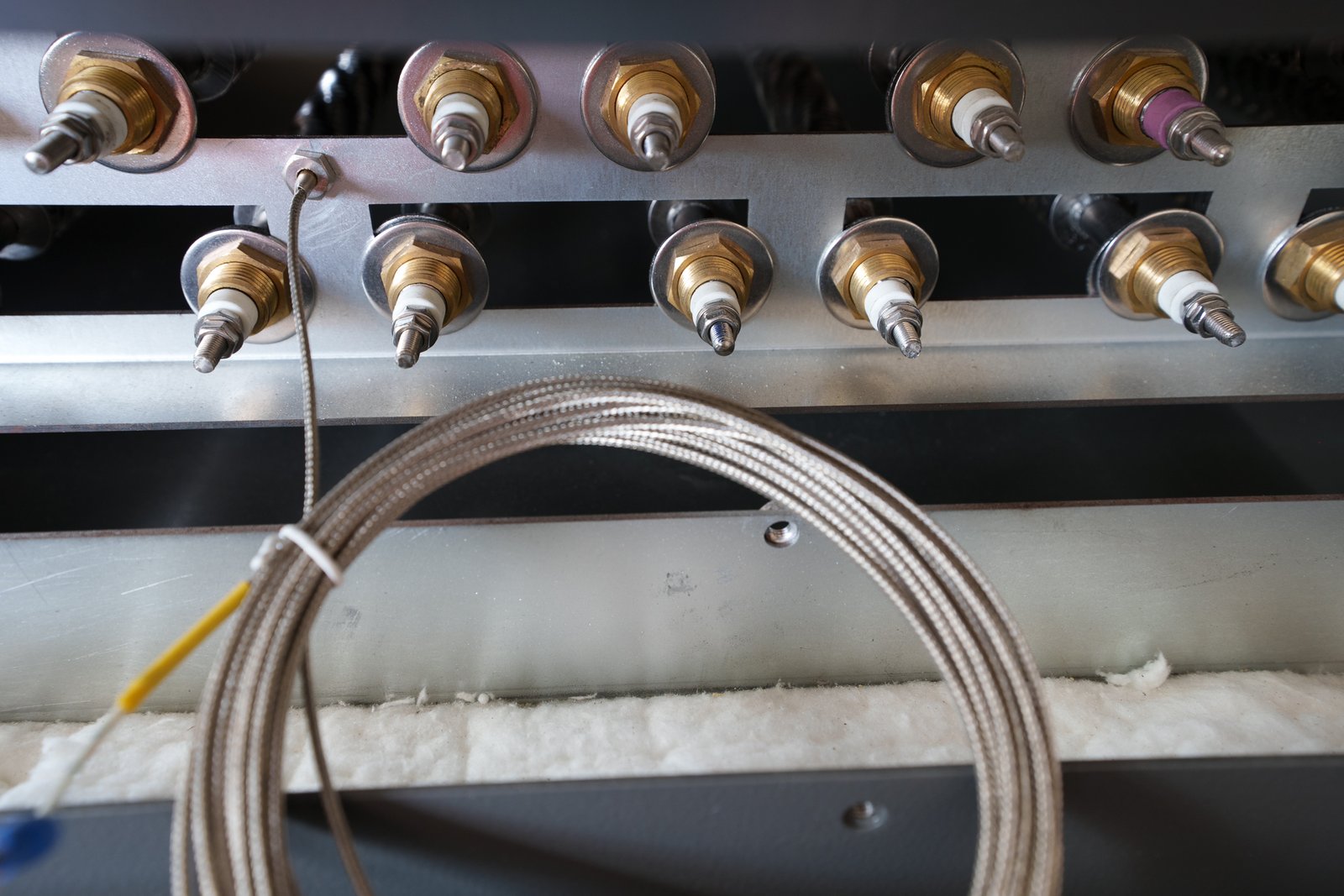

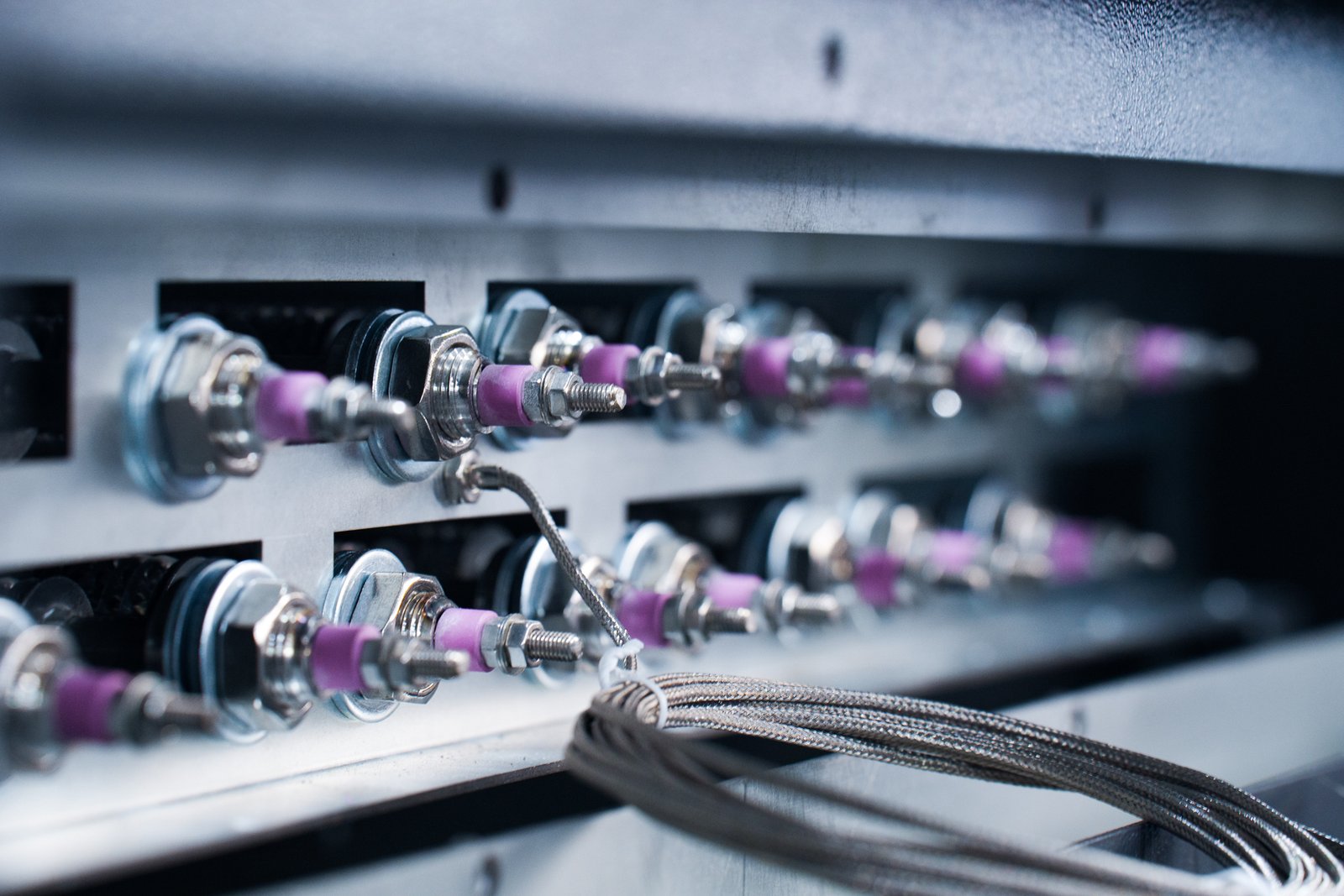

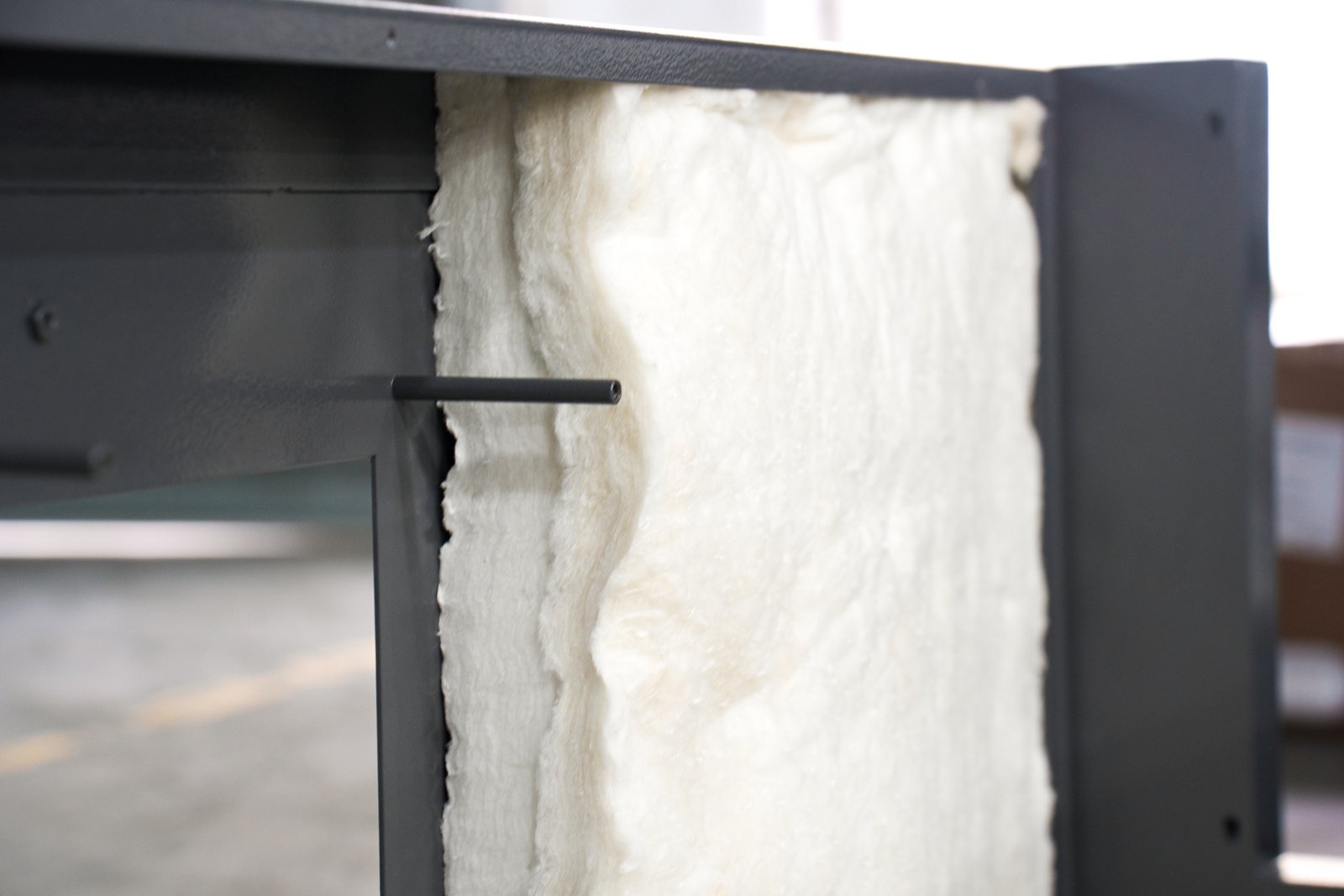

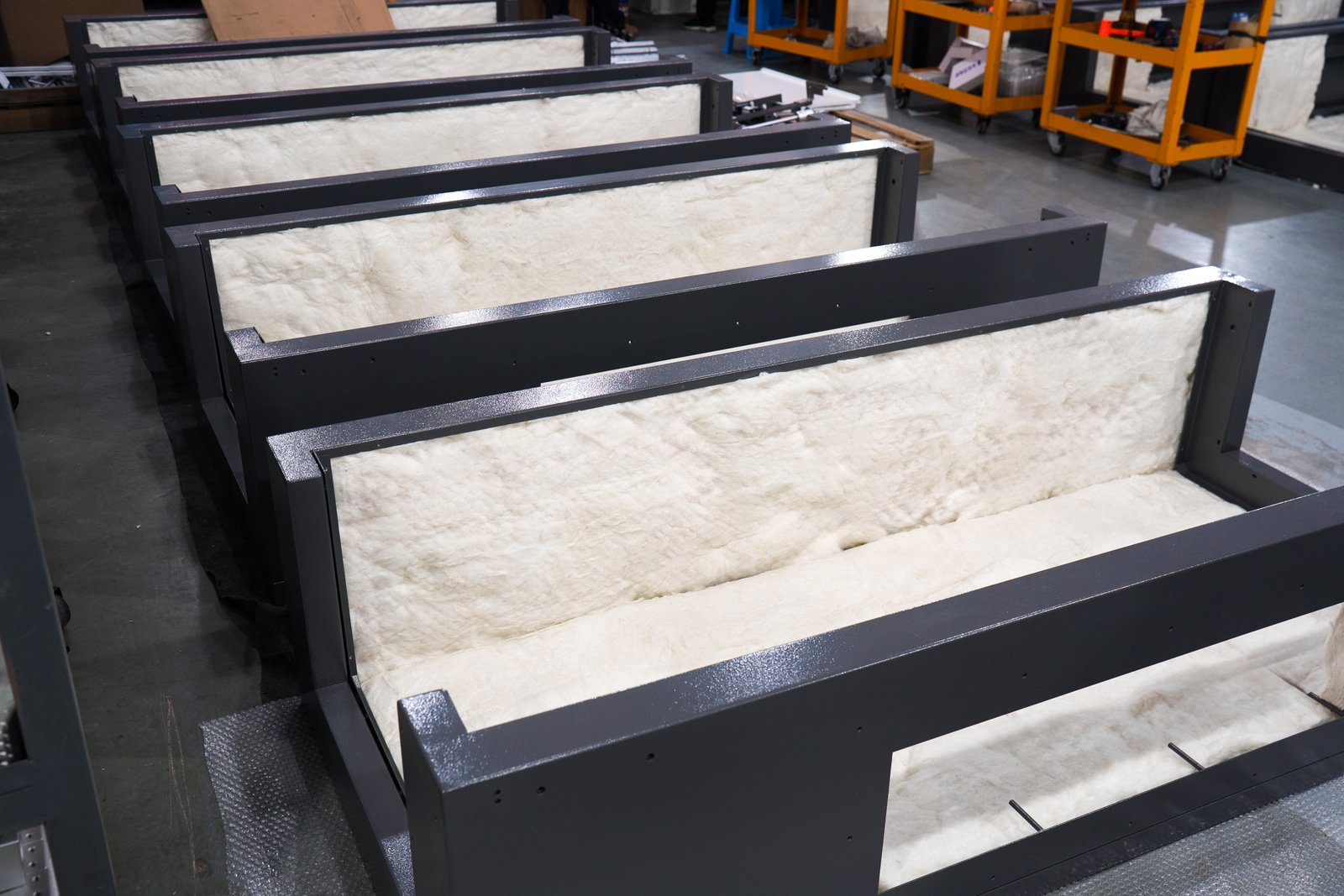

Equipped with slow-heating stainless steel heating tubes. The furnace chamber features a three-layer aluminum silicate wool insulation design, reducing heat loss while providing fast heating and excellent temperature retention.

Fitted with a customized circulation motor, creating a two-way hot air circulation system. Heat is evenly distributed within the furnace chamber, ensuring stable temperature control.

※ Shrink temperature and conveyor speed can be adjusted independently to suit different products, guaranteeing optimal shrink results.

Utilizes a recirculating hot air inner chamber structure, where hot air circulates only within the furnace chamber, effectively preventing heat loss and delivering energy-efficient, stable performance.

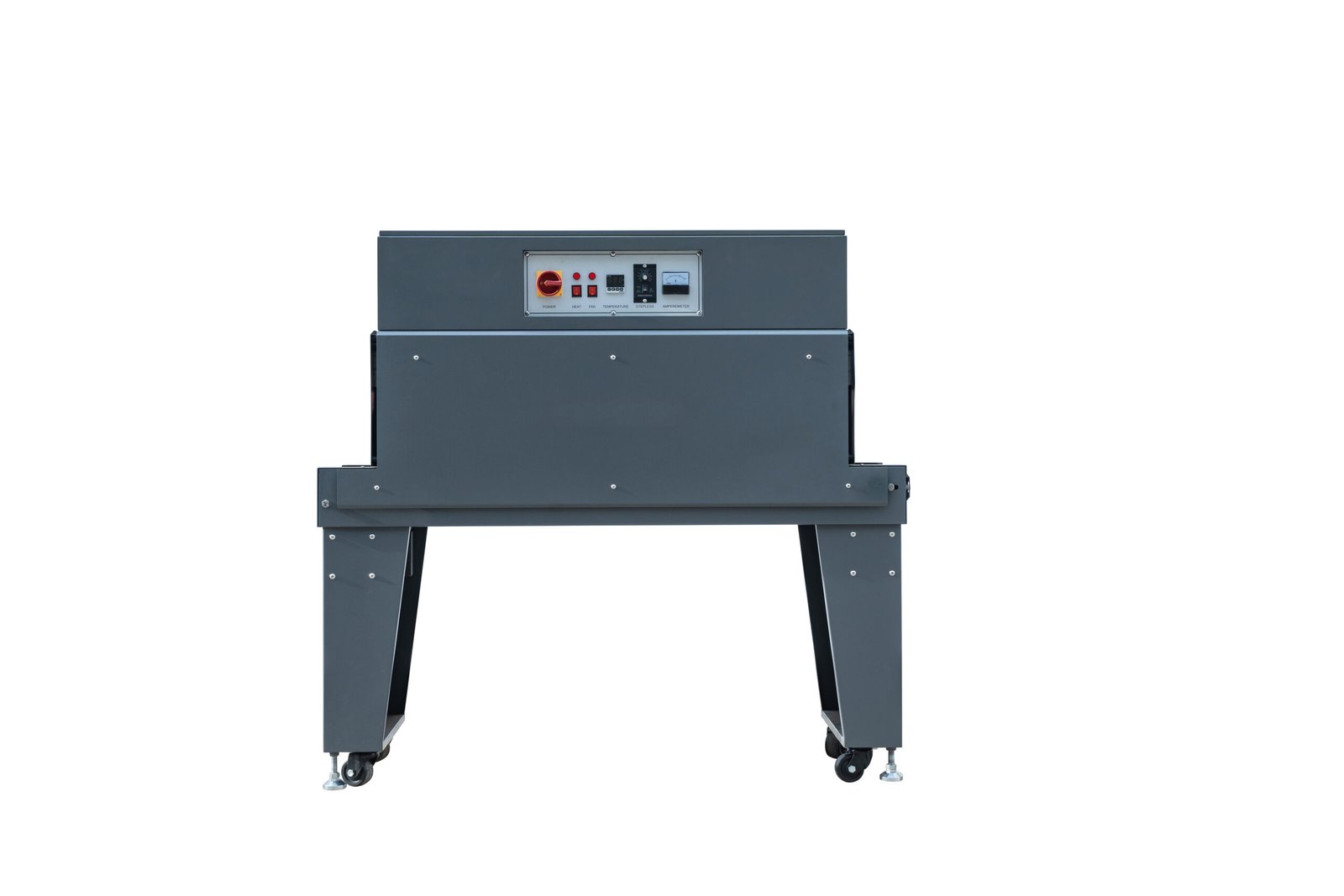

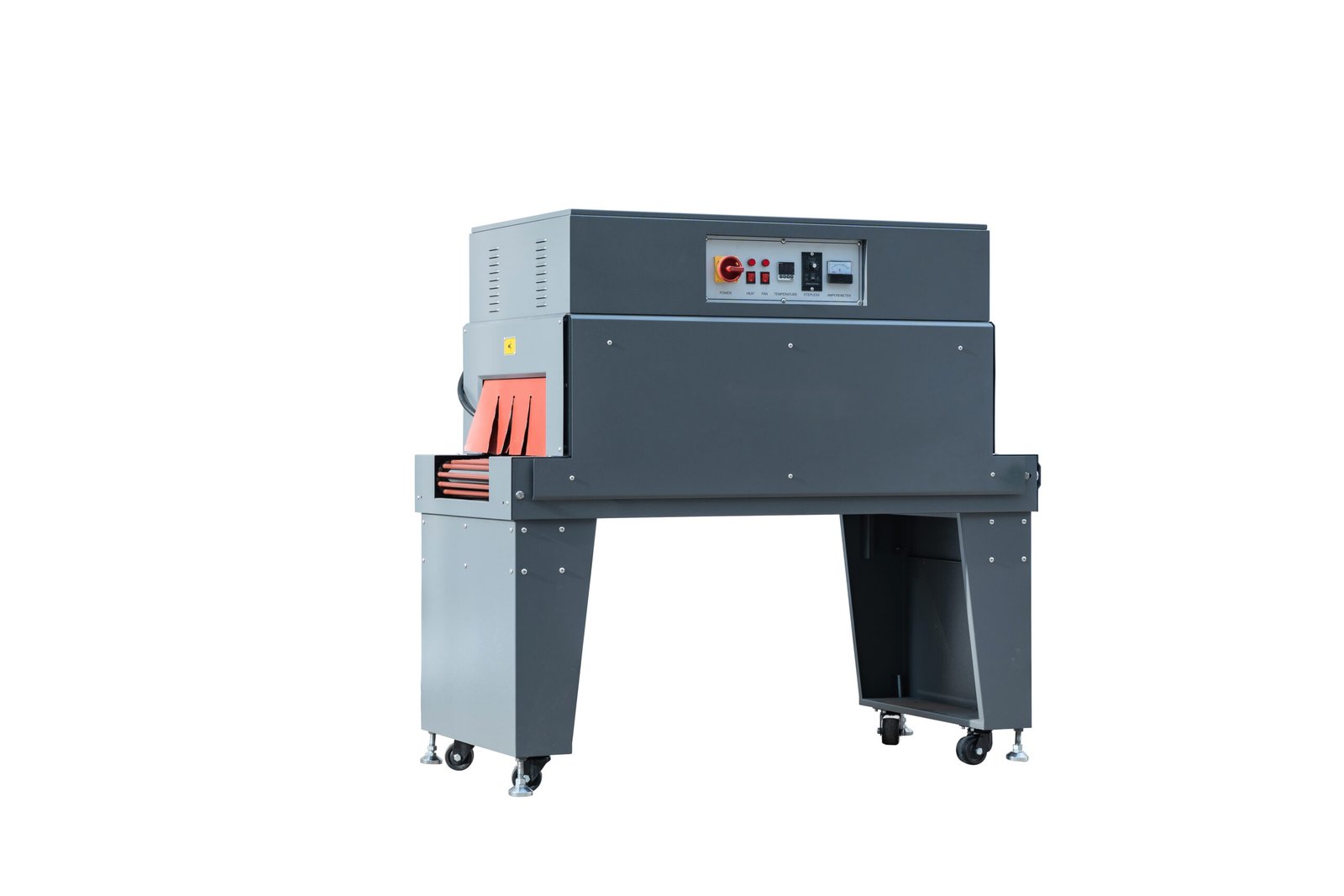

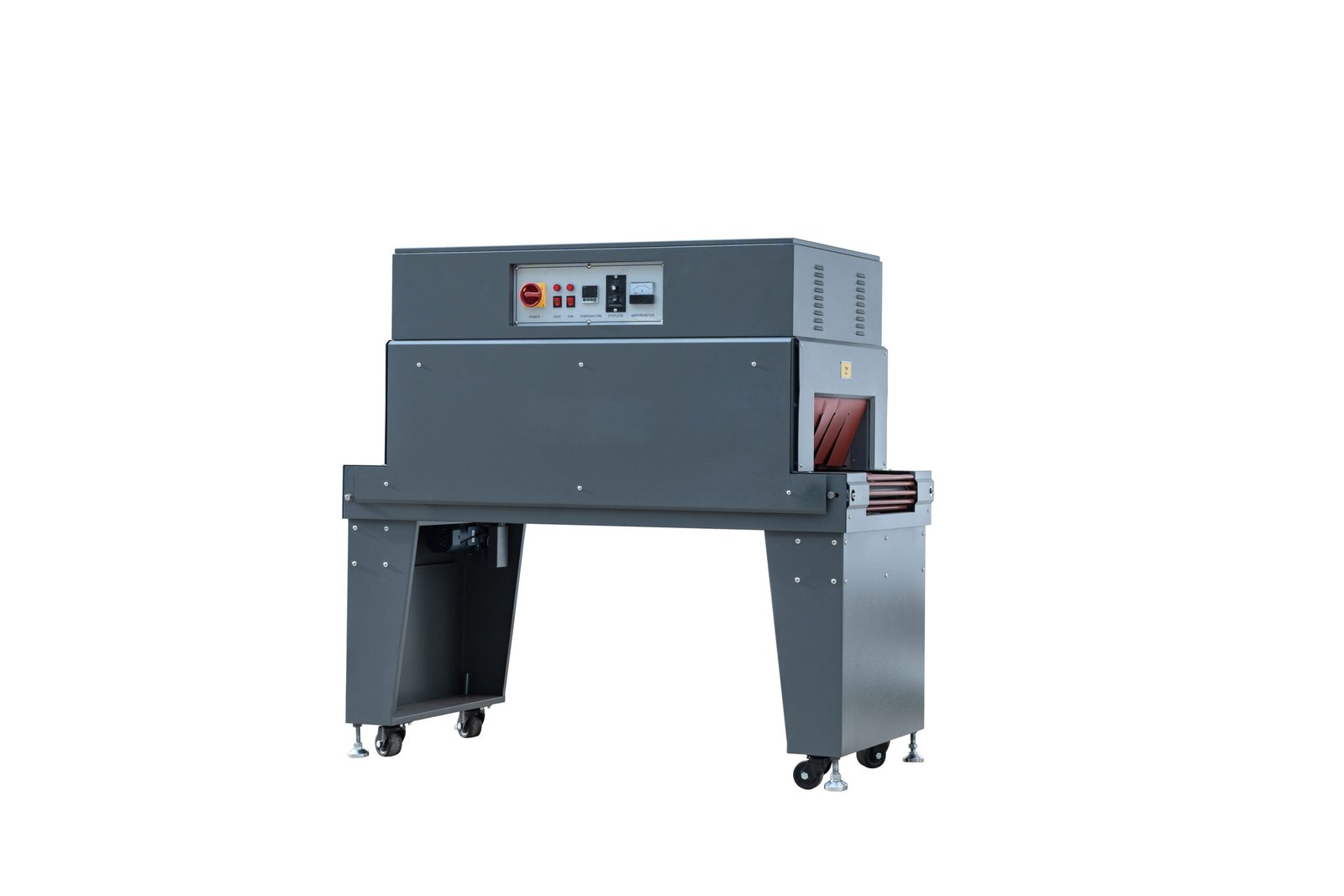

ModelHT-400HT-500G
Tunnel dimensions1200×400×200mm1900×500×300mm
Product Size (Range)L700×W350×H150mmL-No limited W450×H250mm
Packaging Speed0-15m/min0-30m/min
Power Supply and Total Power380V/50Hz, 12kW380V/50Hz, 16kW
Max. Current24A32A
Machine weight235kg600kg
Machine size1500×700×1435mm2400×1100×1300mm

Heating And Insulation Components

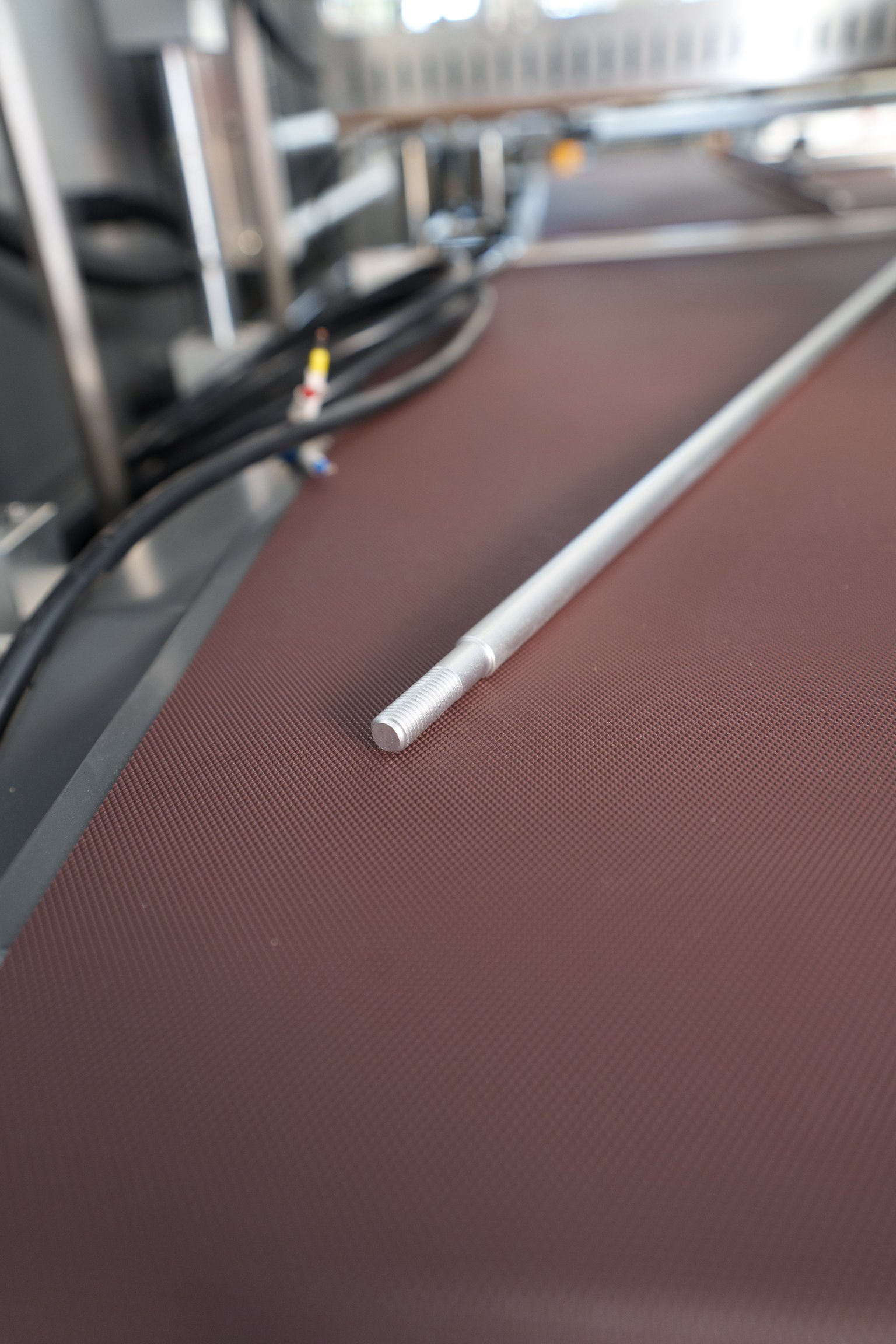

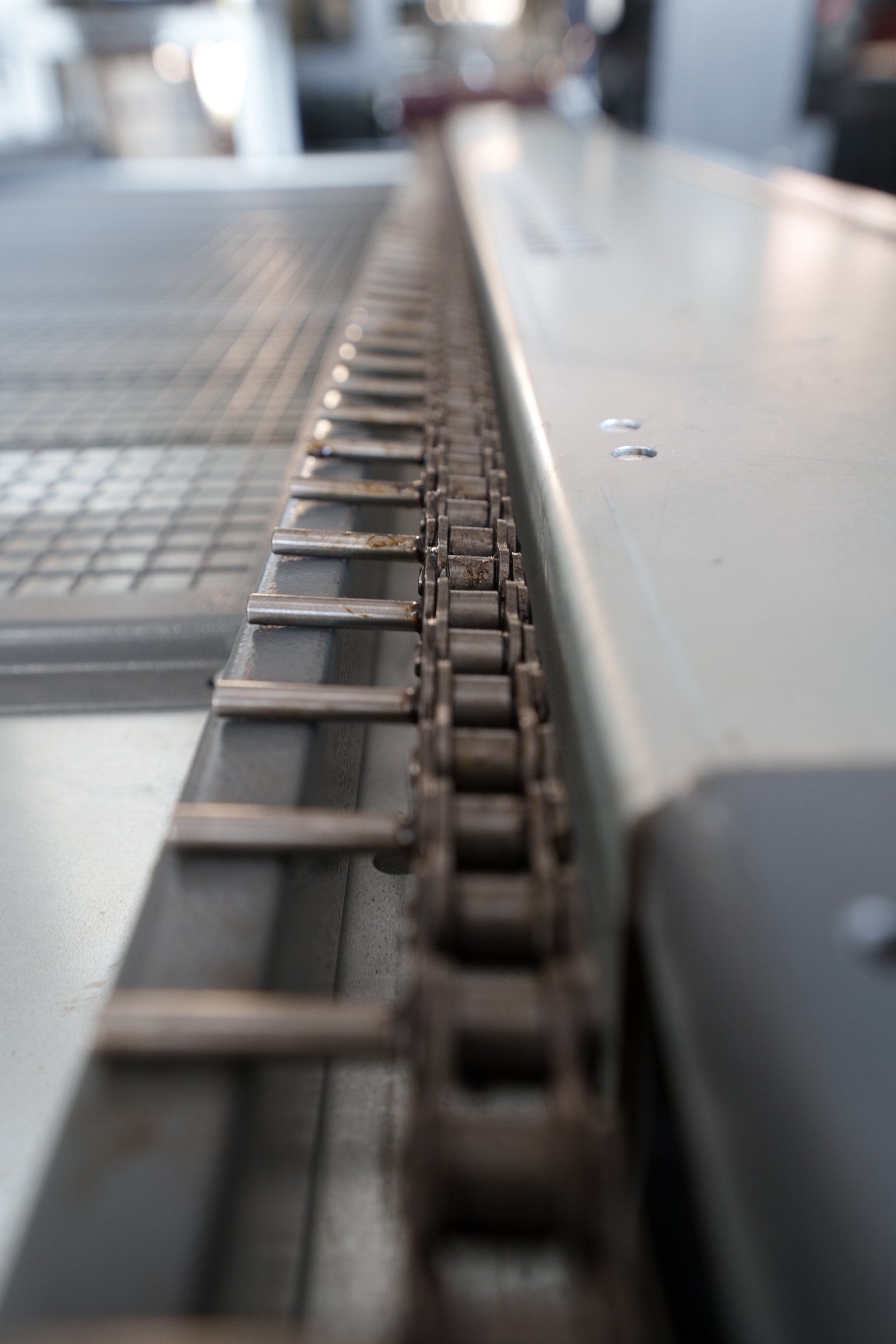

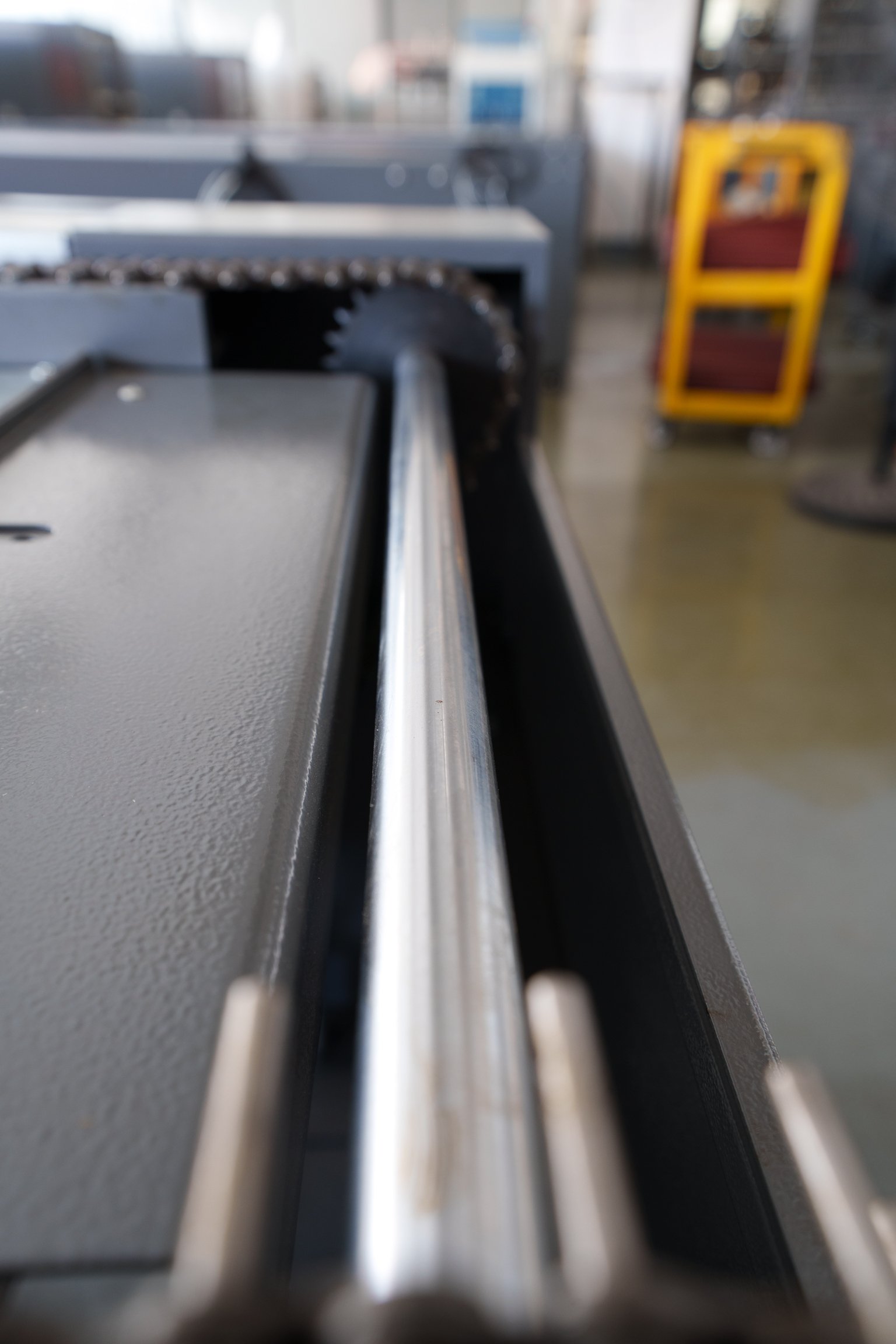

Conveying Components

Heat Circulation Regulating Components

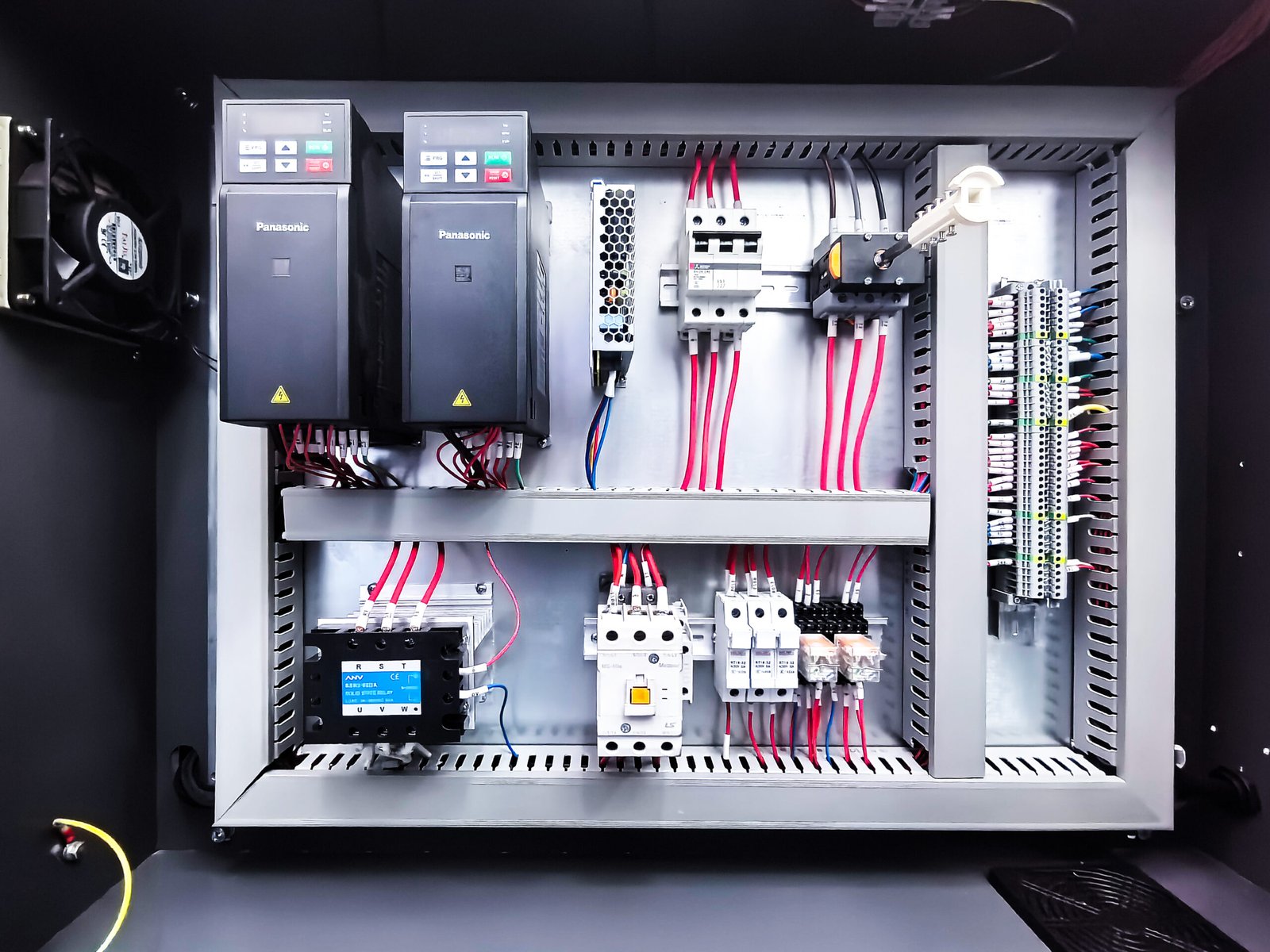

Electrical equipment

Other accessories
